Pivot shoe

A home owner from Brunswick, GA says:
December 15, 2012
One of my pivot shoes cracked and broke. The house was built in 1999. If you can determine which part I need, I'll buy a dozen.

I also need to replace a couple of pivot bars that match the shoe. A half dozen of those would be sufficient.

I also wish to purchase the charging tool.

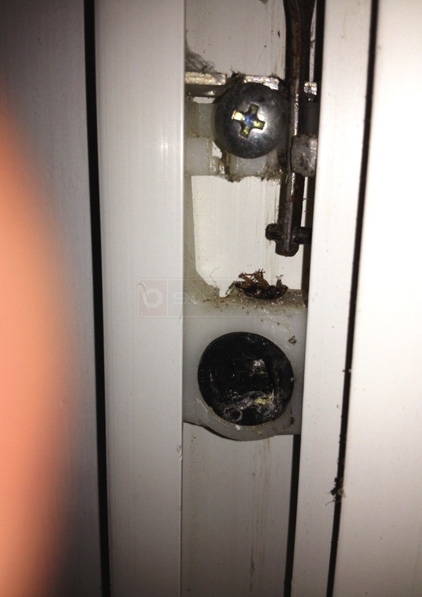

User submitted a photo of a pivot shoe.
Profile picture of Tom
Tom from SWISCO responded:
December 17, 2012
Thanks for posting! I'm afraid that I'll need more information before I can identify this Pivot Shoe for you. Please give me this shoe's thickness and width. I need these dimensions to be as exact as possible, so you may find it best to remove it from the jamb before you measure.

I would also like to see a few pictures of the pivot bars with dimensions, including hole spacing.
A quick learner from Brunswick, GA says:
December 18, 2012
The pivot shoe is a half inch thick, one and a half inch wide and two inches in length.

I hope this will be sufficient information.

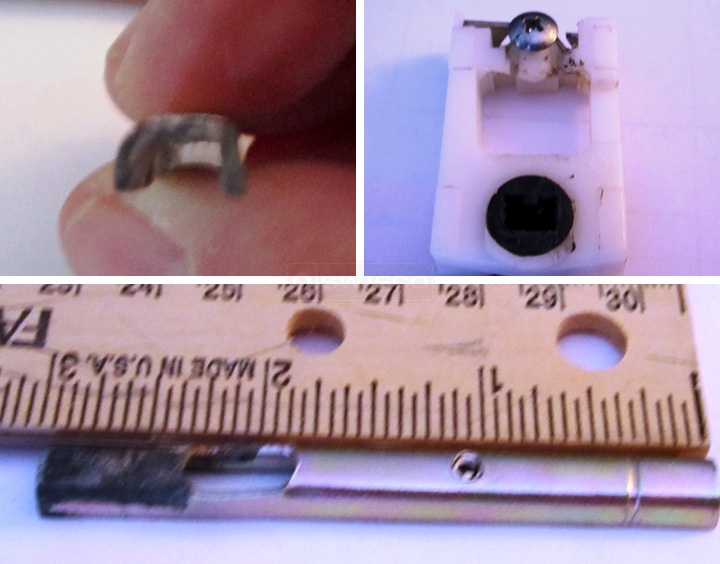

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
December 19, 2012
Thanks for getting back to us. I recommend that you take a look at our 15-046 pivot shoe and 26-040 pivot bar and compare their dimensions to your own hardware. Do these look like they could be matches? Let me know what you think!
A quick learner from Brunswick, GA says:
December 20, 2012
Yes, I concur with your parts recommendation . I'll make my order today.

Thanks for the help.
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
Pivot Bar, 3"
Pivot Bar, 3"
26-040
$1.57
