Pivot shoe for Pacific Industries Window

A landlord from Morgan Hill, CA says:
May 23, 2022
I have ordered you 26-089P for my "Pacific Industries Windows" and they worked out great. Will be ordering more.

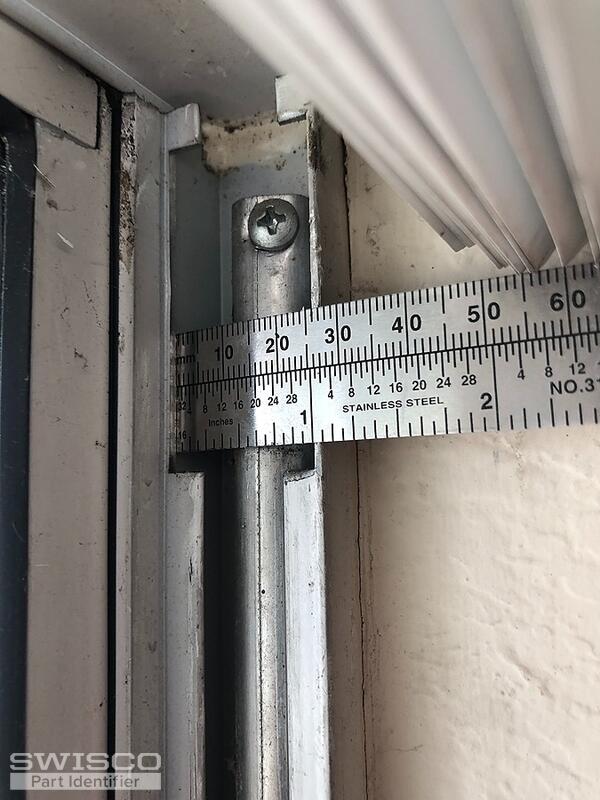

Now I need the Pivot Shoe for these windows. The current Pivot Shoe in 2" tall, 1" wide and 1/2" thick.

The close I can find on your website is your P/N 15-046 . However, it is 1/ 1/4" wide, and I need ones that is only 1" wide.

Any recommendations?

Can I trim down the 15-046 1/8" on both sides?

Have added photos.
Thumbnail of the uploaded file named IMG-5785.jpg
Thumbnail of the uploaded file named IMG-5781.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 27, 2022

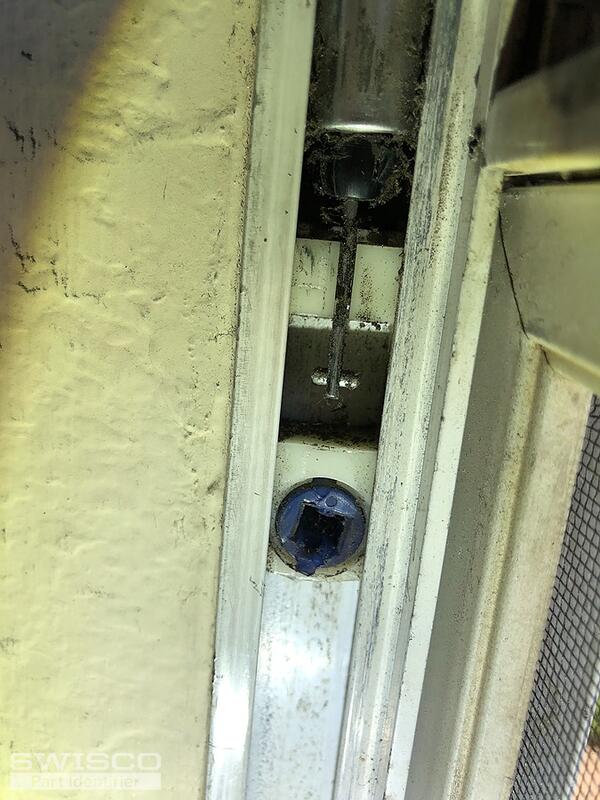

There are other differences between your shoe and our 15-046 . The most notable difference other than width is the design of the hole in the center cam; yours is much smaller and has an extra divot at the bottom, probably made to accommodate a specific kind of pivot bar.

Based on that, and the stated width of 1", I think you should consider our 15-211 instead. Look this over and see if it would be a better match.
