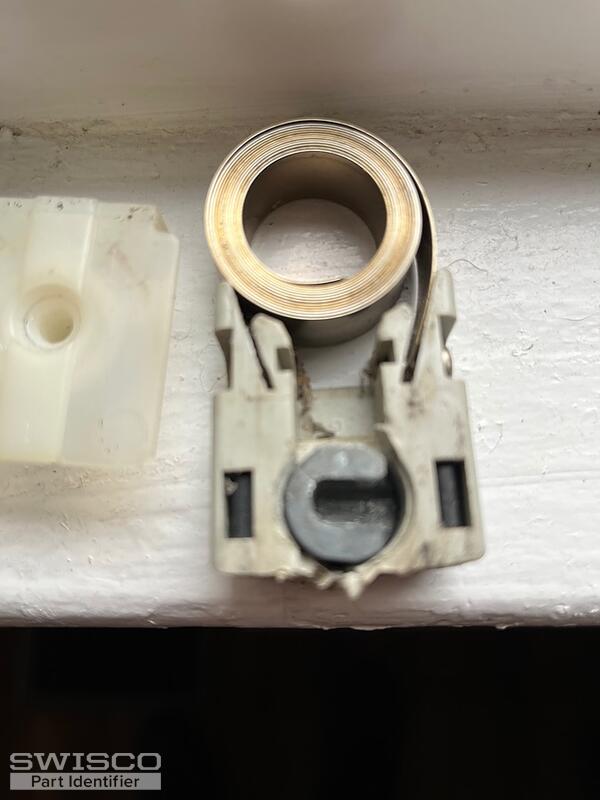

Pivot shoe with coil and pivot bars

Question

Pivot bar is 2 3/4 long with one hole that is about 1 1/4 from bevel tip.
Pivot shoe has coil with 6 K on it. 1/2 inch thick, 1 1/4 wide and 2 1/2 inch long

Lauren · Accepted Answer

Hello, thank you for posting,

Please start by reviewing the 15-177 pivot shoe that is compatible with the Series 152 coil springs. For a spring marked with the number (6), take a look at the S152-6 coil. If a new cover is needed, take a look at the 15-143 bushing, 15-144 bushing cap and 15-145 support barrel.

Alternate image for 15-177

We do not carry this exact pivot bar, but the 26-226 and 26-030 are similar in style and are compatible with the pivot shoe. Review the dimensions of both to see if the installation hole backset matches up to your original. Let us know what you think and if you have any additional questions!

End view of the 26-226 pivot bar

Detail of 26-030

Alternate view of 26-030
