Plasting Housing for Coil Balance Assembly Broken

Home Owner from Bella Vista, Arkansas

Mar 19, 2020 1:25 pm

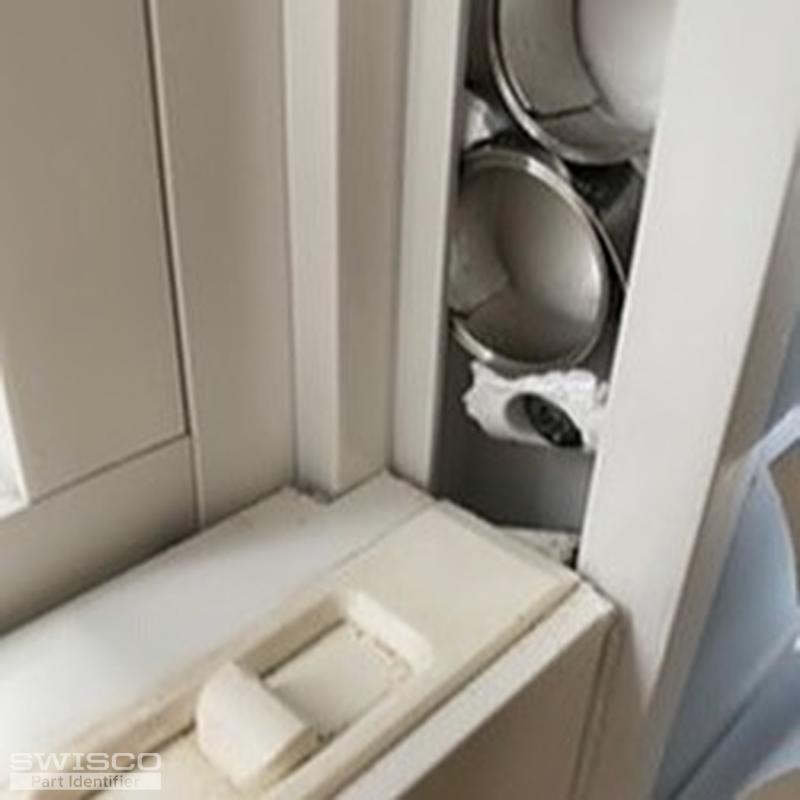

I have a broken piece of plastic on one side of a window that is held on by one screw. Photo on right is side that is not broken. Photo on left shows 2 round metal pieces that would be covered by the broken plastic piece. The plastic part is about 1" x 4.5" . What is that part and can it be ordered and replaced, please. Thanks!

2 user uploaded images

6 Replies

Bob from SWISCO

Mar 19, 2020 1:47 pm

Can you show us the pivot shoe these coil balances connect to at the bottom? The identity of the pivot shoe, or the part from which the window tilts from, tells us the identity of the coil springs you have, and thus the coil balance cover as well. Many thanks.

Home Owner from Bella Vista, Arkansas

Mar 19, 2020 5:30 pm

Thank you for your quick reply. Hope these pics are what you need. Thanks!

2 user uploaded images

Bob from SWISCO

Mar 20, 2020 11:12 am

I'm afraid this isn't quite what we need. The Pivot Shoe is connected to the bottom of the window sash; it's literally the point from which the window can pivot or tilt inward for cleaning. That said, there may be a quicker way to solve this. See either our 15-150T, which is used for 1/2" thick Coil Springs or our 15-205, which is for 3/8" thick Coil Springs. Measure the thickness of your existing springs and see which support would be the right match. Let me know what you find.

Bob from SWISCO

Mar 20, 2020 12:43 pm

Fair enough. Let us know if you have any other questions. Thanks for the very kind words, and best wishes to you as well during these difficult days.

Home Owner from Bella Vista, Arkansas

Mar 20, 2020 1:07 pm

Well, being a woman that is very inept at fixing things, I think I am going to have to call a window company to come and fix this after watching the video. I am under contract to sell my house and the home inspector obviously broke this piece and then took the broken pieces with him. I truly appreciate your time and will definitely direct everyone to your site. Everyone be safe and healthy in these difficult times.
