Hello my friends ! I currently lived in a 17 years old home, previous owner left me with windows missing coil/ balance set or with cracked coil covers.
With the photo above, can you guys identify the parts for the coil/ balance set ( Coils, coil cover, and the shoes)
Let me know if I need more photos, I did the best I could to take them out of the window.
Please respond as soon as possible, as I really want to make these windows new again !
Thanks a lot guys.
Please help me to identify the parts !
Quick Learner from Saint Louis
Aug 29, 2021 10:05 am
1 user uploaded image
3 Replies
Quick Learner from Saint Louis
Aug 29, 2021 1:53 pm

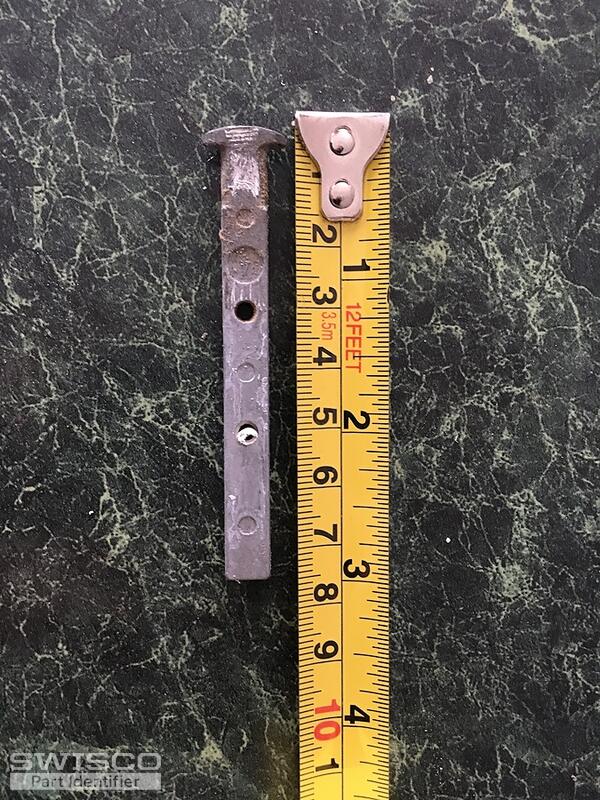

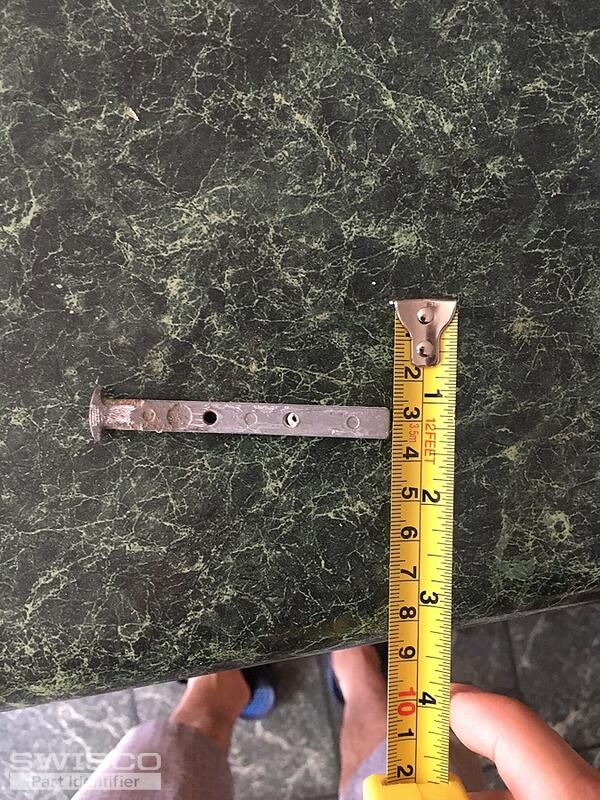

One quick note, While removing one of the window, I noticed a pivtol bar is missing. I will have the picture uploaded, thanks !
4 user uploaded images
Casey from SWISCO
Sep 2, 2021 12:24 pm
Hello,
Take a look at our 15-199 pivot shoe, which uses the Series 160 and Series 165 coil springs. This assembly is also commonly used with the 26-378 pivot bar.
Make sure to compare our dimensions to your original hardware to see if these parts match up to what you need. Thank you!
