Ply Gem 1500 channel balances

Question

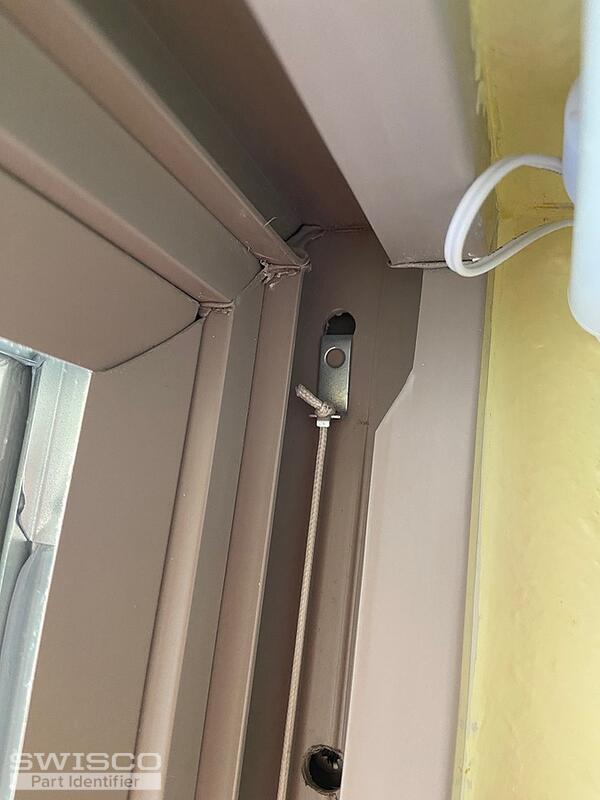

I ordered two S795-32 opt 32F and two S795-28 opt 28d channel balances on order 2212873. Unfortunately for me, these come with the 19-043 screw clip and the Ply Gem windows use the 15-198 balance clip. In addition the string exits the balance from the open end and the S795's the string exits from the frame end. The tilt brake is correct. See pics.
Is there some adapter to make the screw clip work with these channel balances?
If not, what is the correct part number for the 32F and 28D balances for a PLY gem 1500 window?

Jasmine · Accepted Answer

Thanks for writing in! There is a chance that our Series 795 balance could still work for your application. In regard to the clip, you may be able to use our 26-200 balance screw plug, so long as the installation hole at the top of the window is square in shape. If it is not, you'll need a custom assembly with the 15-198 hook attached the top. Take a look at the video below to confirm if this solution will work for you. Please let me know if the installation hole would not be compatible with the screw plug and I'll be happy to get the quote make up for the custom assemblies.

If the screw tab will work for you, you should be able to turn it around so that it sits a bit more flush with the window frame.
