Ply Gen 2000 series windows

Home Owner from Greensboro, NC

Apr 17, 2018 12:00 pm

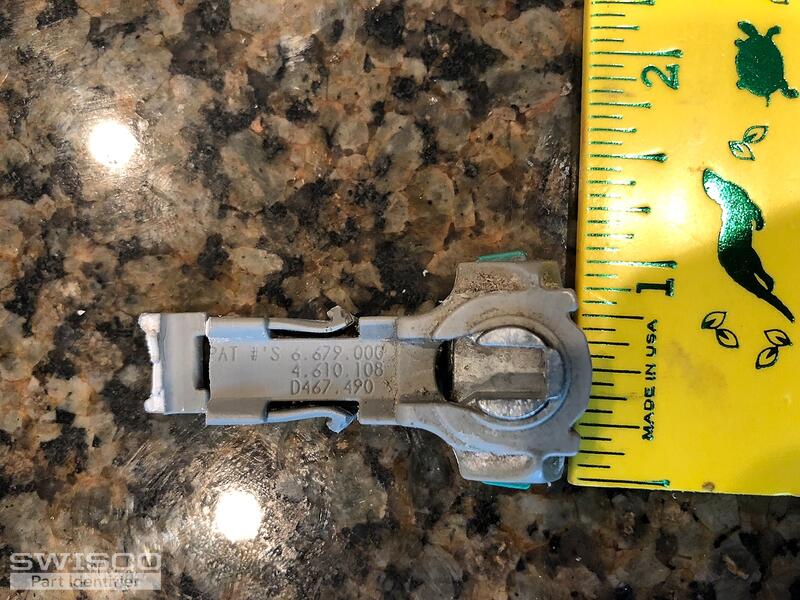

This is the window shoe lock for the balances. I need 40 as they all broke! Can you believe that? 40/66 are broken. I can send a pic if that help. Plastic is green and the base is 1 inch wide

5 Replies

Home Owner from Greensboro, NC

Apr 17, 2018 12:56 pm

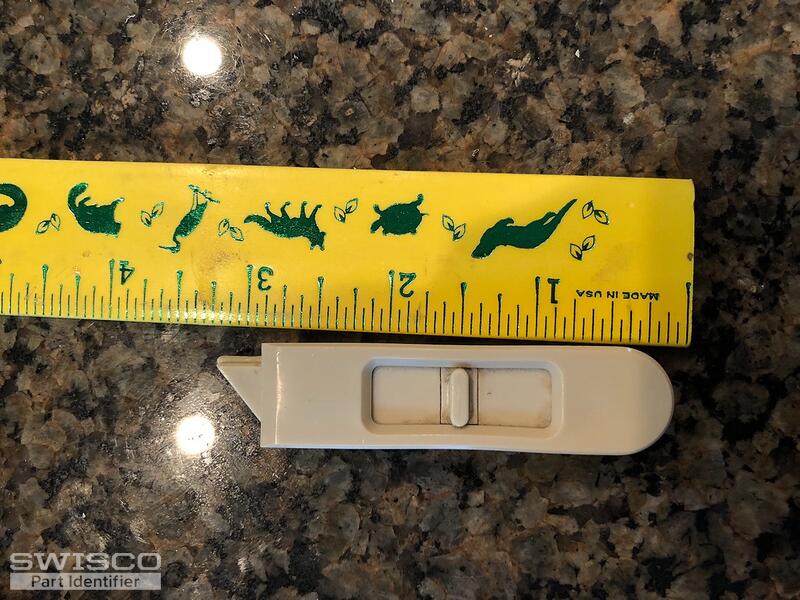

Sorry, It is ply gem 2000 series window and I need 45 shoes for the balance and 5 left and 5 right clips that you open to tilt the window

2 user uploaded images

Paul from SWISCO

Apr 19, 2018 12:20 pm

Thanks for posting. Before we can start making recommendations on replacement hardware, we need some additional information. First, we need to see the metal balance the T-lock shoe was attached to. We'd also need to know the length and the width of the housing of your tilt latch as well as a photo of the bottom of the latch.

Quick Learner from Greensboro nc

Apr 19, 2018 1:19 pm

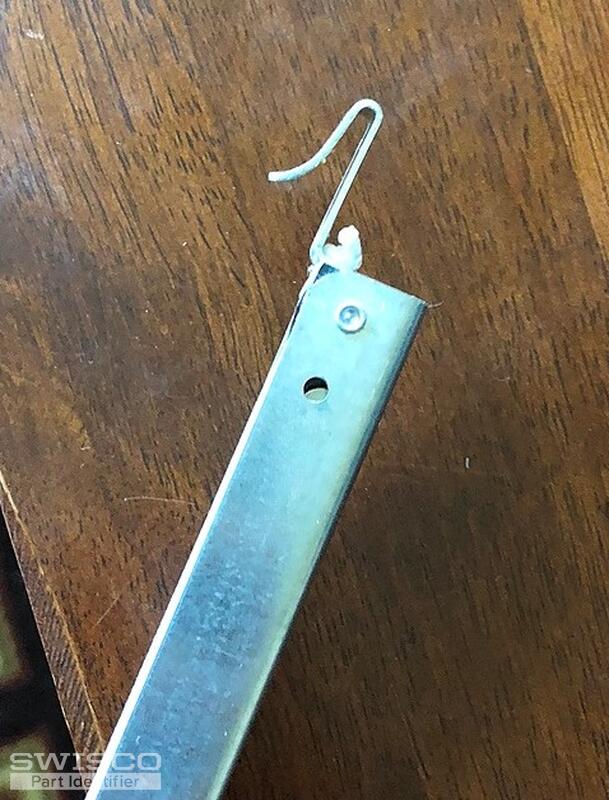

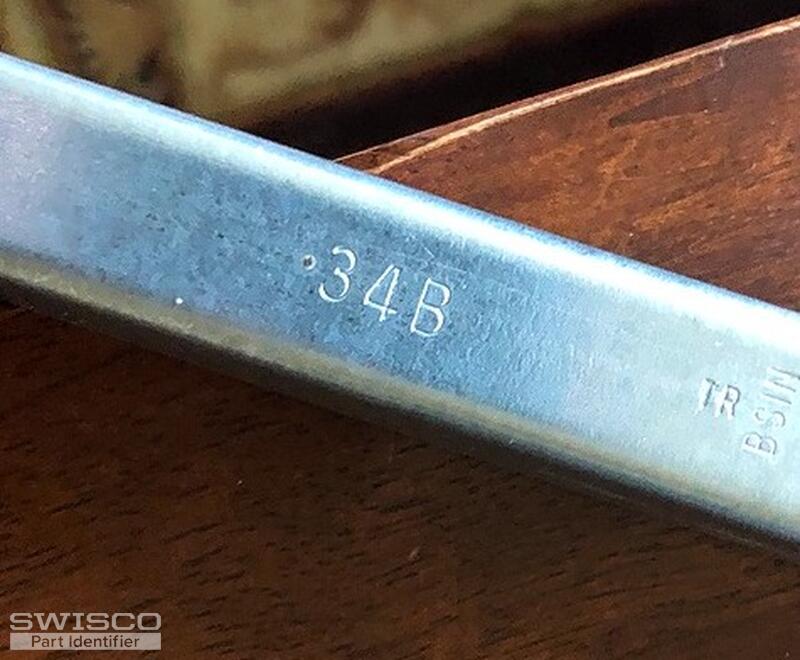

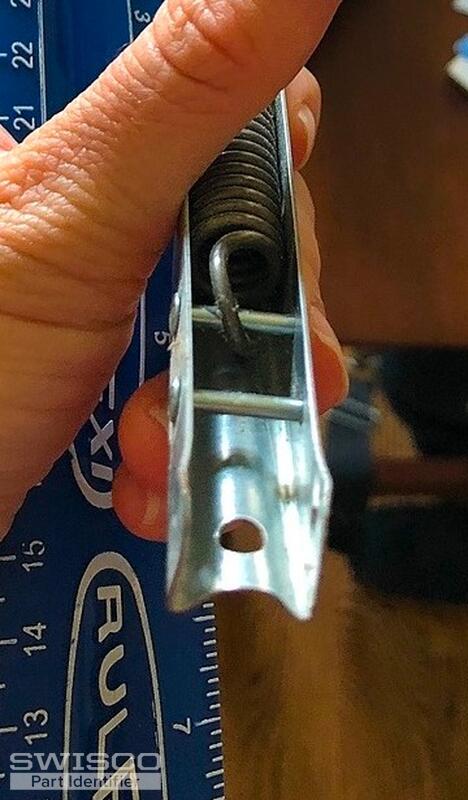

The balance is 24 inches long and says 20 4B on it. The channel that the shoe sits in is 9/16 deep and 1 1/8 or maybe 9/16 wide.

3 user uploaded images

Paul from SWISCO

Apr 24, 2018 11:19 am

Perfect, thank you! We can replace this balance, though it will have to be specially made. I'm confident our Series 795 will work, along with the 15-194 shoe and 15-198 hook specially attached to it. I will email you a special order link for 40 of these right now, though if you'd like to change that quantity let me know here and I'll be happy to do so.
