Polaris Window Balance Spring

A quick learner from Marysville, OH says:

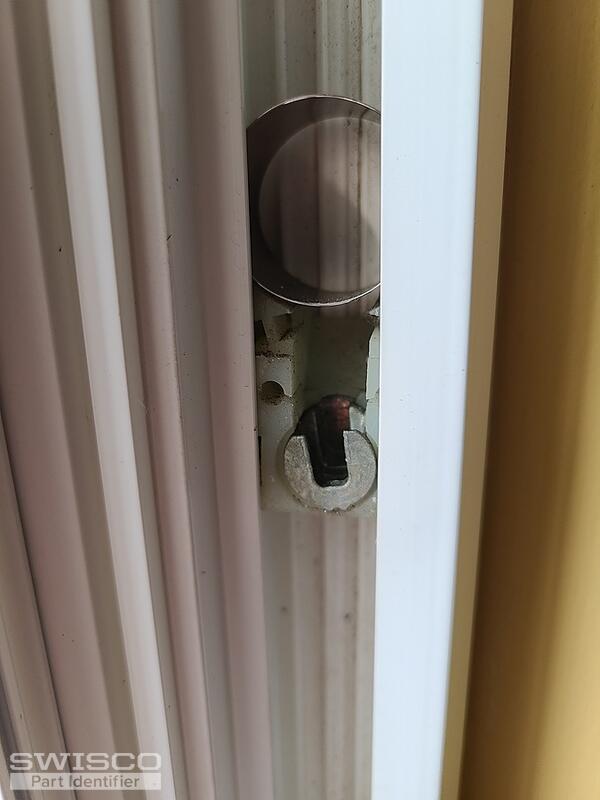

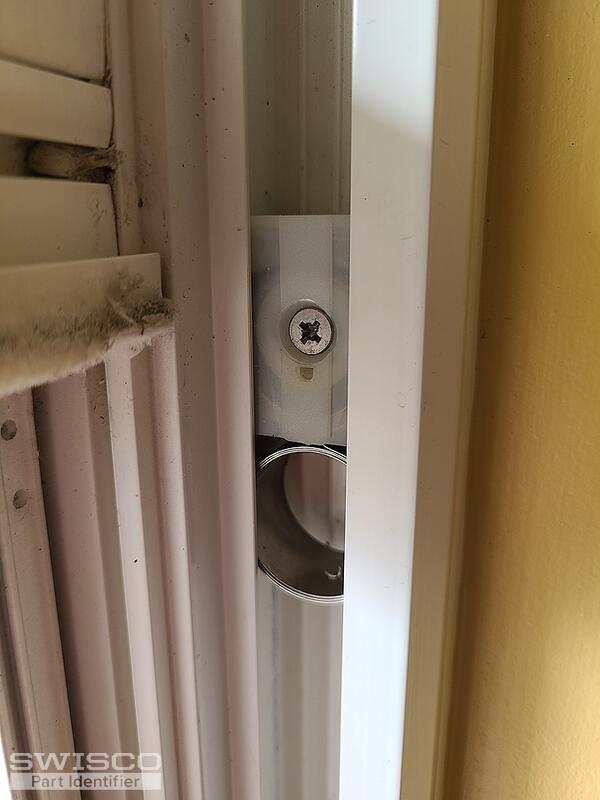

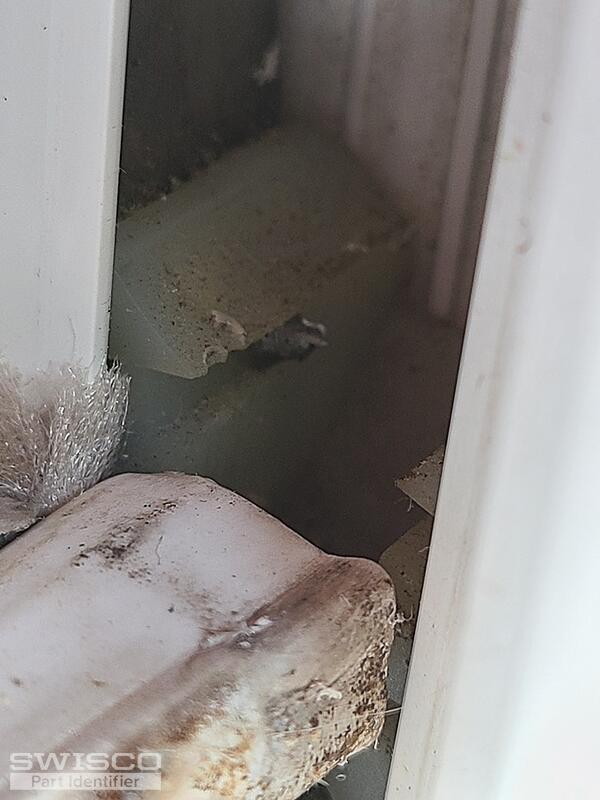

Would like confirmation of the balance spring needed based on the photos. I did not remove the existing hardware because I will need to notch the track to remove, which I will do after receiving the new part.

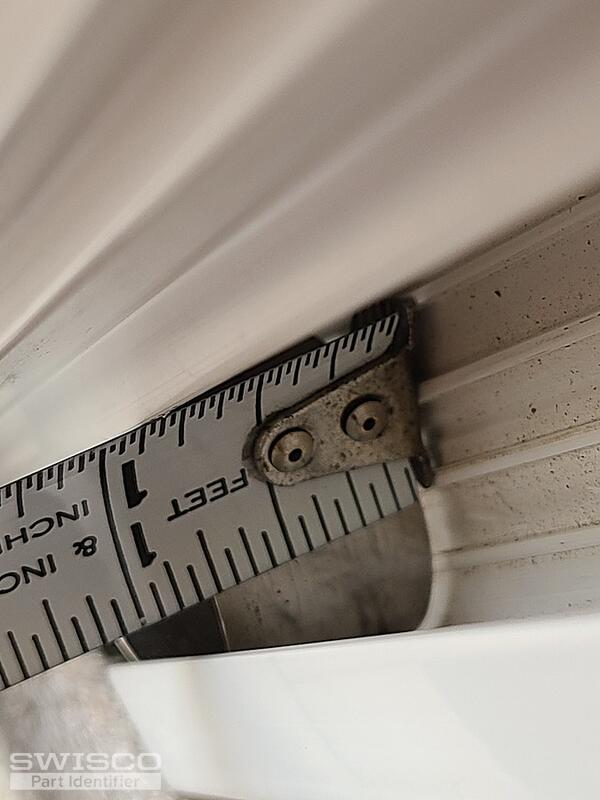

Current spring width is 3/4" and weight of sash is 16.0lb. Based on the part description, pivot shoe type and weight of sash, I believe that I need part S170-408 .
Thumbnail of the uploaded file named 20220924_150644.jpg
Thumbnail of the uploaded file named 20220924_142824.jpg
Thumbnail of the uploaded file named 20220924_142808.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

The Series 170 is designed to work with the 15-192 which is very different from your original pivot shoe so this isn't what you'd want. Yours was actually recently discontinued but you can use the 15-177 to replace it. This uses the 1/2" wide Series 152 coil springs so I recommend double checking the width of your old coil band. You may want to remove it from the window in order to get an accurate measurement.
