Pozzi window part

A home owner from USA says:
June 9, 2017
I have attached a photo of the part I need. The broken part is on a right-opening casement window. The word on the part is EntryGard.
From your website, it looks like you might have the correct part.
The Pozzi windows were installed in 1992. On your 39-035 photo, I

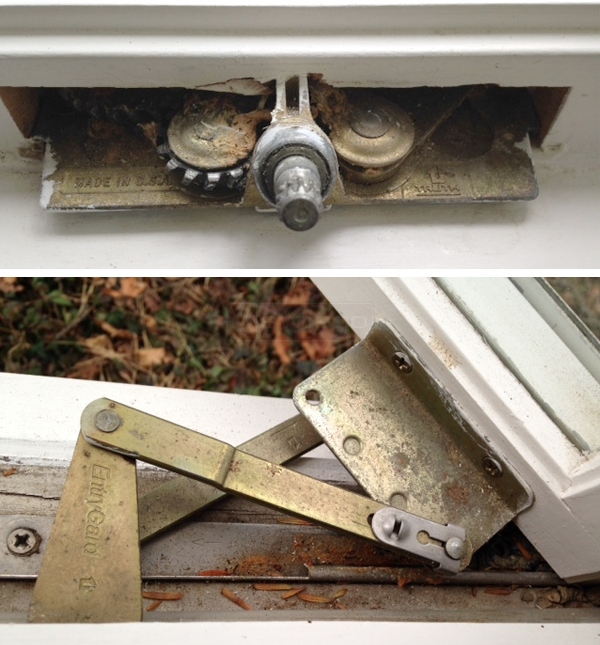

User submitted photos of a window operator.
Profile picture of Tom
Tom from SWISCO responded:
June 13, 2017
I'm afraid your post got cut off, so I'm not sure what you were getting at in regards to our 39-035. That said, I think this does look like our best match. Is there anything in particular that would prevent this from working?
A home owner from Rockport MA says:
June 13, 2017
Tom,
On the picture of 39-035, the part labeled 3-15/16" does not match mine. Mine is 4.25".
Please don't give up--I need this window.
Thanks
Profile picture of Tom
Tom from SWISCO responded:
June 15, 2017
Aha, I see. I'm afraid we don't have a link arm in that size, but I do have a solution that other customers have said has worked well. What you can do is drill out the link arm on both the old and new operators, then install the old link arm on the old operator using a 62-014 rivet. See what you think.
A home owner from Rockport MA says:
June 15, 2017
I will forward this suggestion to my contractor and see what he thinks.
Thank you!
A home owner from Rockport MA says:
June 26, 2017
Tom,
My contractor came and measured. I was incorrect. Your part will work (3 15/16" arm). The window opens to the right.Is #39-036 the correct part for the right-opening window?
Thanks.
Profile picture of Tom
Tom from SWISCO responded:
June 28, 2017
If it's the operator in the pictures above, I'd recommend the 39-035. If you need the opposite side, then the 39-036 would be better.
