Queens multi family

Landlord from Queens

Jul 17, 2020 3:10 pm

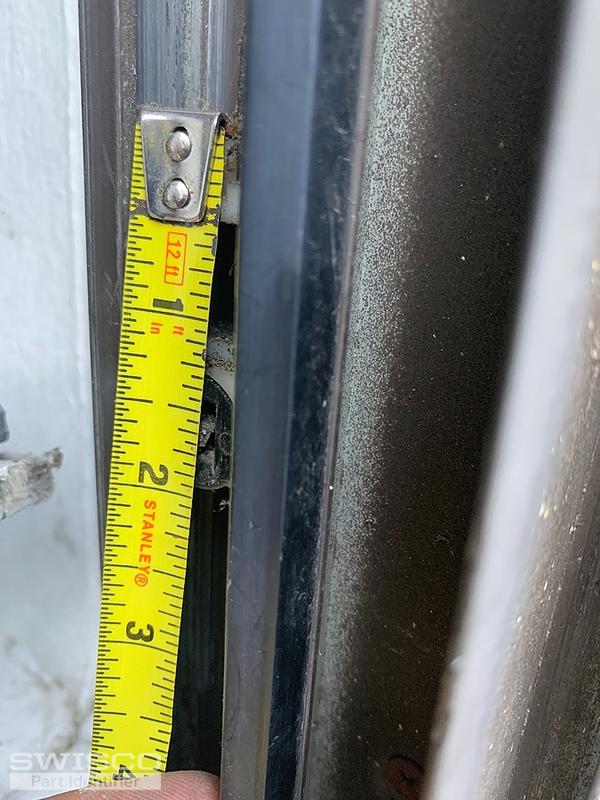

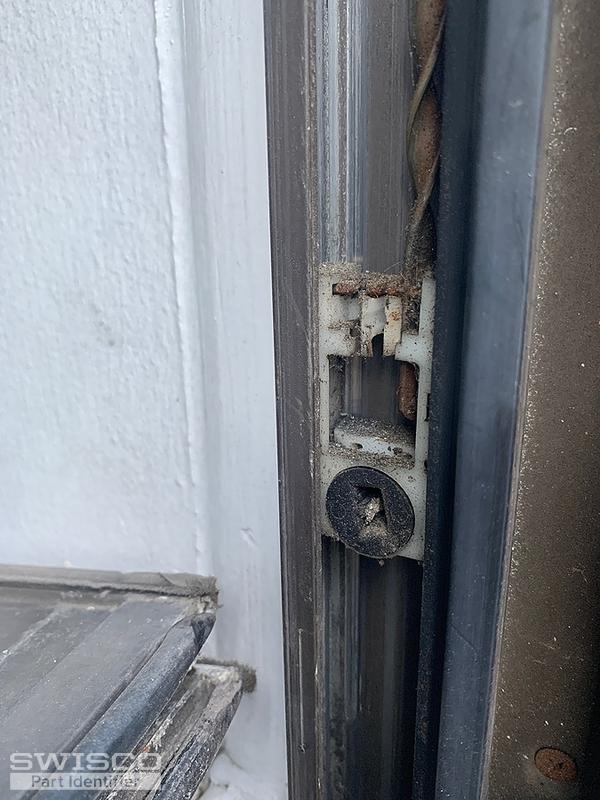

looking for two parts, one is the plastic window slide inside sides of windows, second is metal piece on bottom of window.
All windows were installed by Crystal windows in Queens.

5 user uploaded images

6 Replies

Tom from SWISCO

Jul 20, 2020 2:54 pm

Looks like you need a pivot bar and pivot shoe. The pivot bar appears to be a match for our 26-040, but I'm less sure about the pivot shoe. Can you tell me its width and thickness? That will help me find something that fits in the track the same way.

Landlord from Queens

Jul 20, 2020 3:30 pm

it measures about 2 inches tall, 1 1/4 wide, and about 1/2 deep

Tom from SWISCO

Jul 21, 2020 10:08 am

Thanks! Based on those dimensions, you should consider our 15-046 pivot shoe. Just note that if your shoe isn't 1/2" thick, this won't work. You may want to triple check to be sure.

Landlord from Queens

Jul 21, 2020 11:31 am

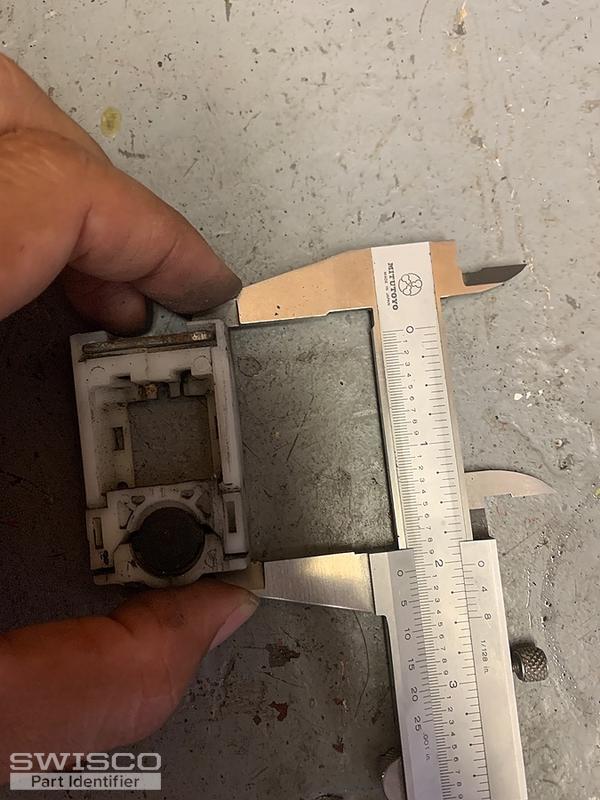

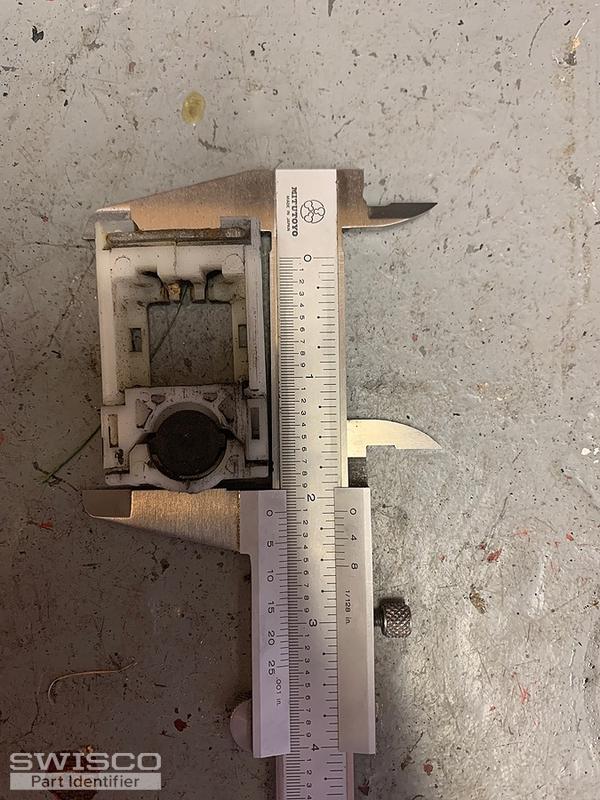

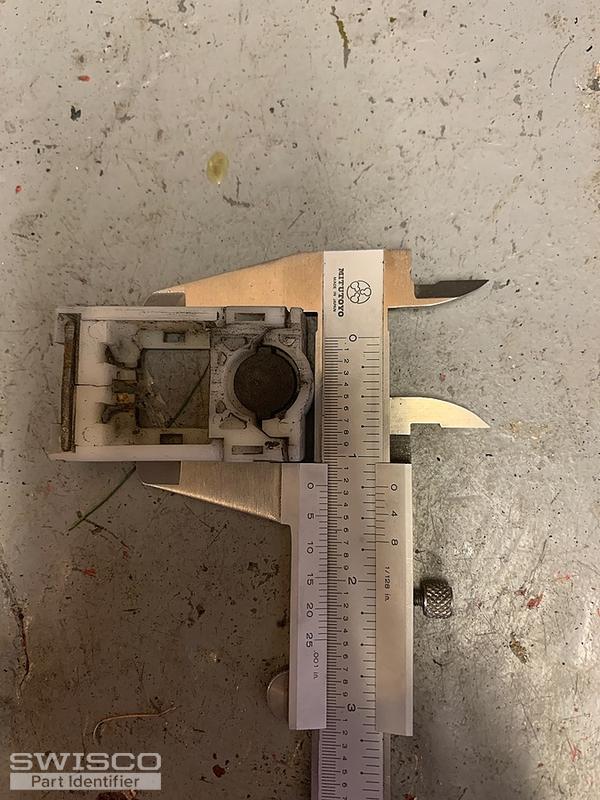

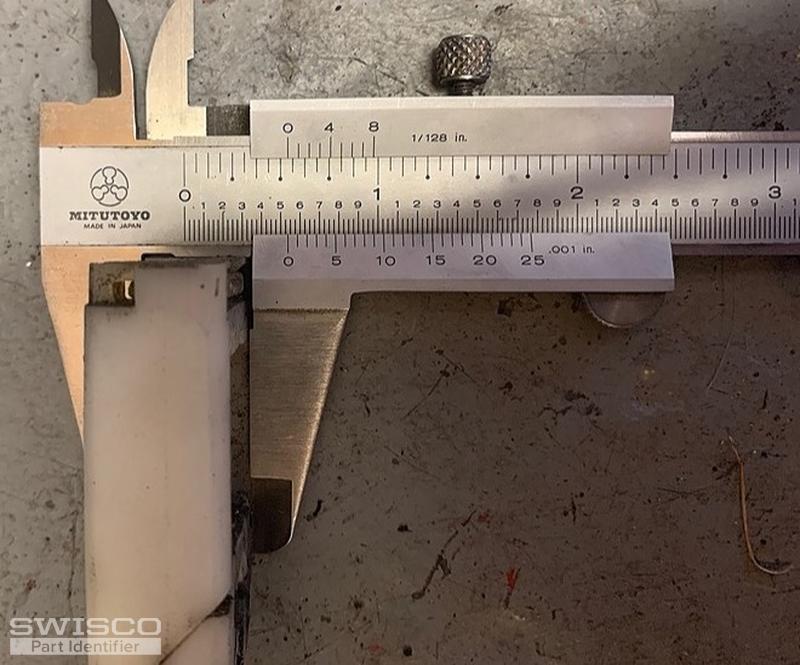

took shoe out and measured closely

4 user uploaded images

Tom from SWISCO

Jul 21, 2020 12:35 pm

Thanks! That looks to be a smidge larger than 1/2", more like 17/32". You may want to consider our 15-015 instead.
