R30842
Thanks for writing in! I'm confident we can provide you with a replacement recommendation for this window operator. Although, to narrow down the possible replacement options, I will need to see a photo of the base of the operator, with the cover removed.
The part number provided is associated with quite a few operators, so I'll need to see a bit more of the details to confirm the right fit.
Please don't hesitate to reach out with any other questions you might have.

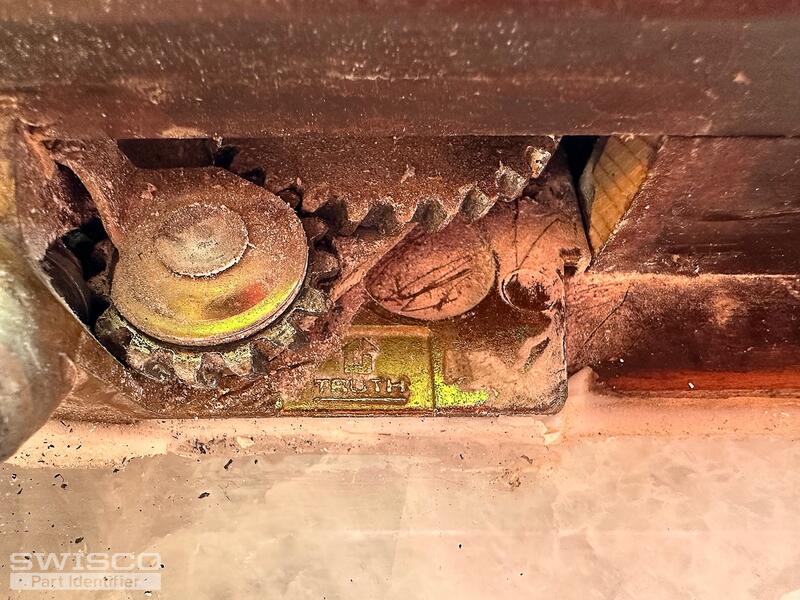

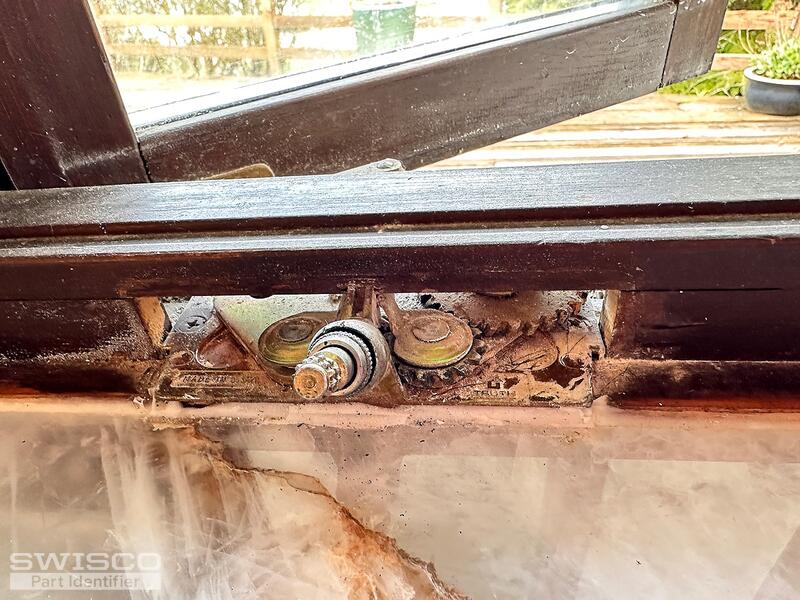

Here's a picture of the mechanism with cover off. Hope this helps you narrow down a part number.
Found the word Truth with a little house icon.
Thanks for the additional photos. Your exact operator is no longer made but our 39-036 Truth Hardware Entrygard Dyad Window Operator will work as a suitable replacement; the opposite handed version is the 39-035.
Your stud bracket is slightly different in shape but I believe the 39-561 Truth Clip-Stud Bracket should work for your repairs. The 39-035 would use the 39-560.
Carefully look over the dimensions and compare them. Be sure to take a look at the covers and handles tagged below.
Okay, great! I'm confident it should work but please don't hesitate to reach out with any questions about the installation once you've received them! We'll be happy to assist.
Have a great day!
