Replace Balance on Simonton Window

Question

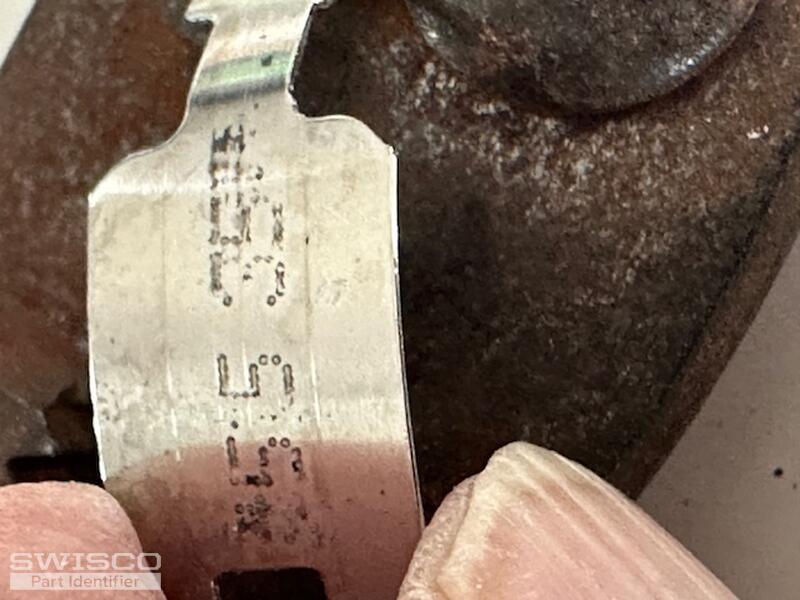

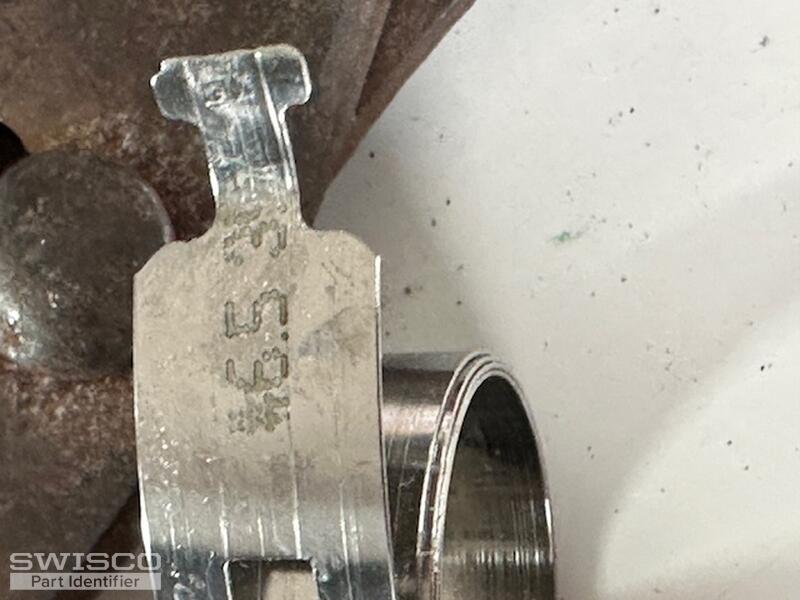

Im trying to find the spring balance assembly parts for a Simonton Window. Also had a questino on removing the plastic part at the top as itis onger than the cutout in the window frame.

Jasmine · Accepted Answer

Hello,

Thanks for reaching out! It is difficult to tell from the photos but your coil balance shoe looks like it could be replaced with our 15-199. Take a look over the dimensions. Carefully compare them to your shoe to see if this might be a fit.

Alternate view of 15-199

This coil balance shoe is compatible with the 1/2" thick Series 160 Coil Balance. To determine which of these is the right fit, you'll need to confirm the thickness of your coil springs. If they are 1/2" thick, you'll need the S160-5 and the S160-6.

This coil balance is compatible with the 15-150D Coil Double Support.

When removing these assemblies, you'll need to kind of feed them through the cutout. Take a look at the video below for a visual demonstration on how to remove them.
