Replace Norco 30+ years old casement parts.

Question

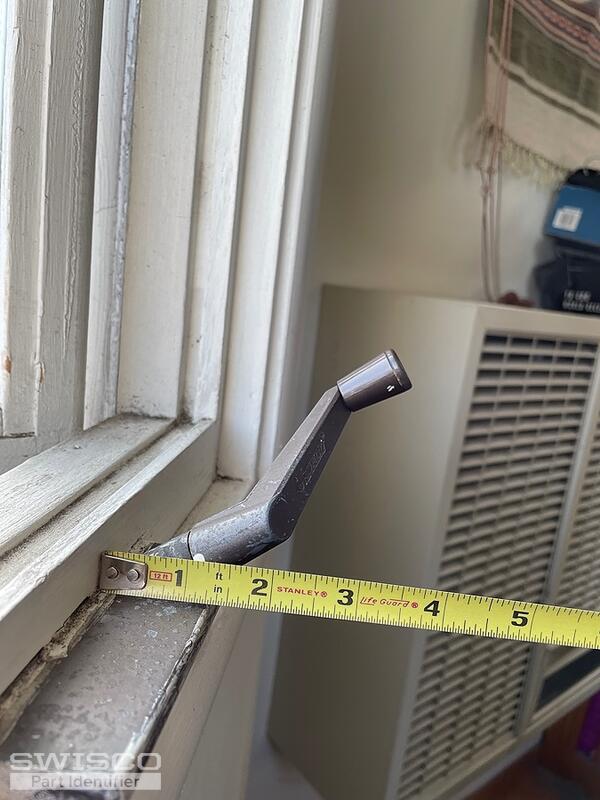

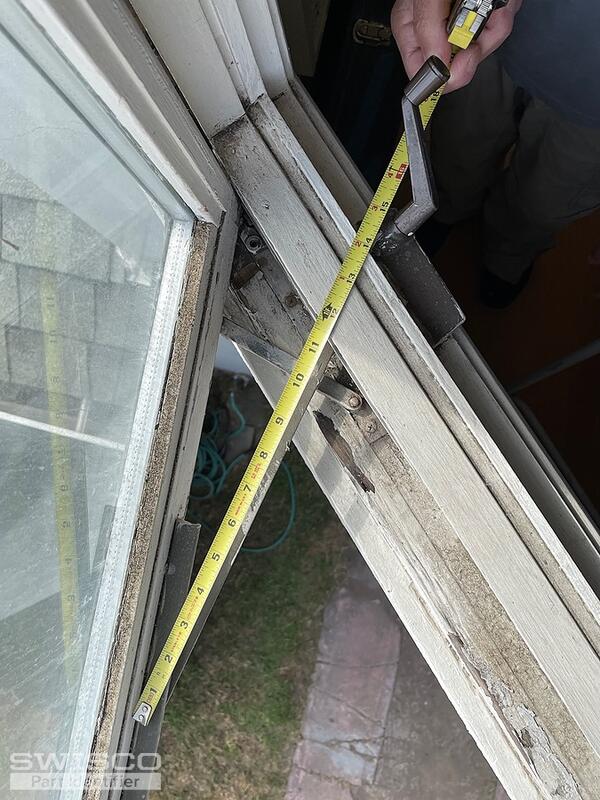

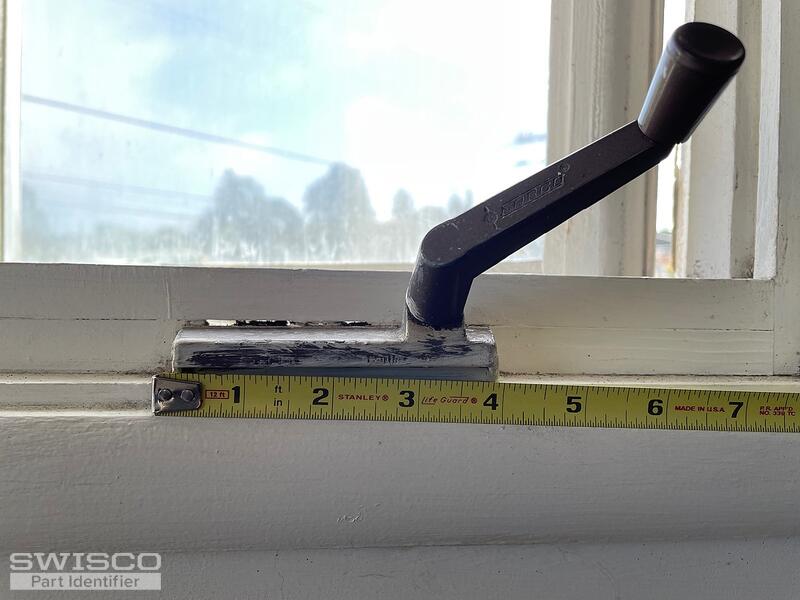

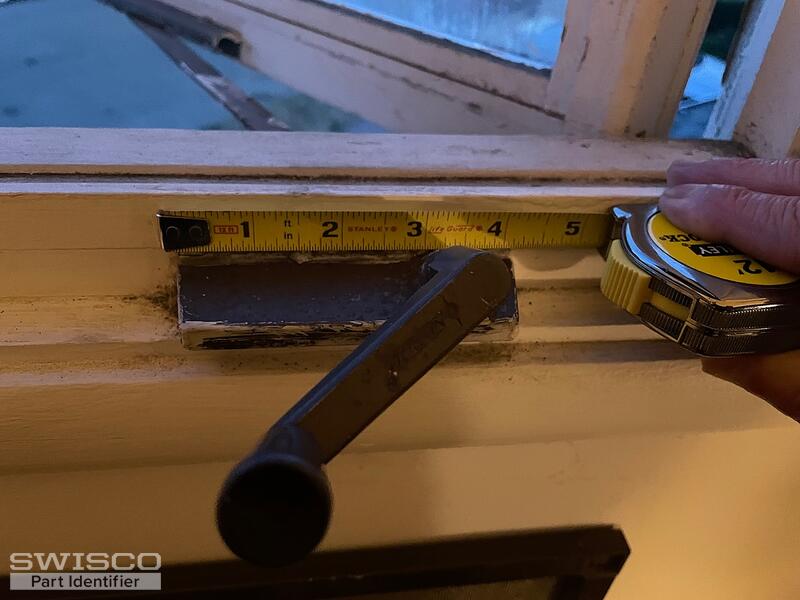

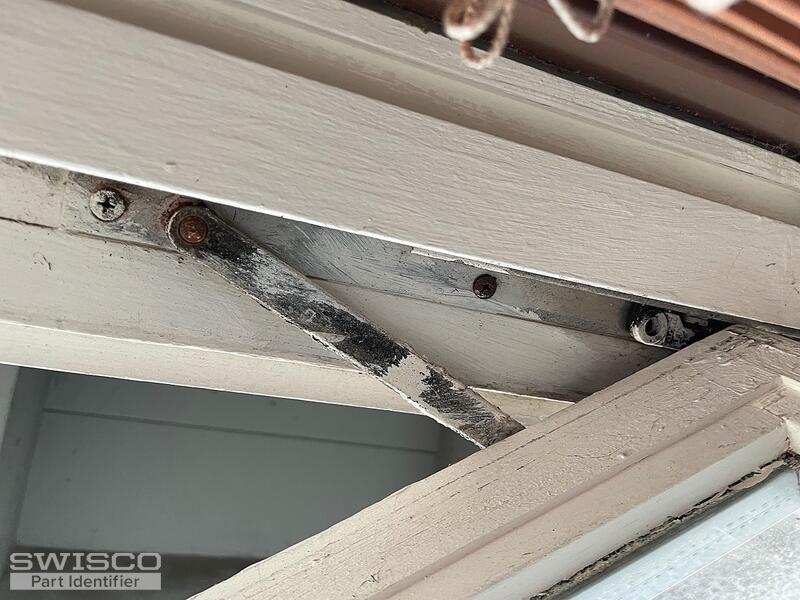

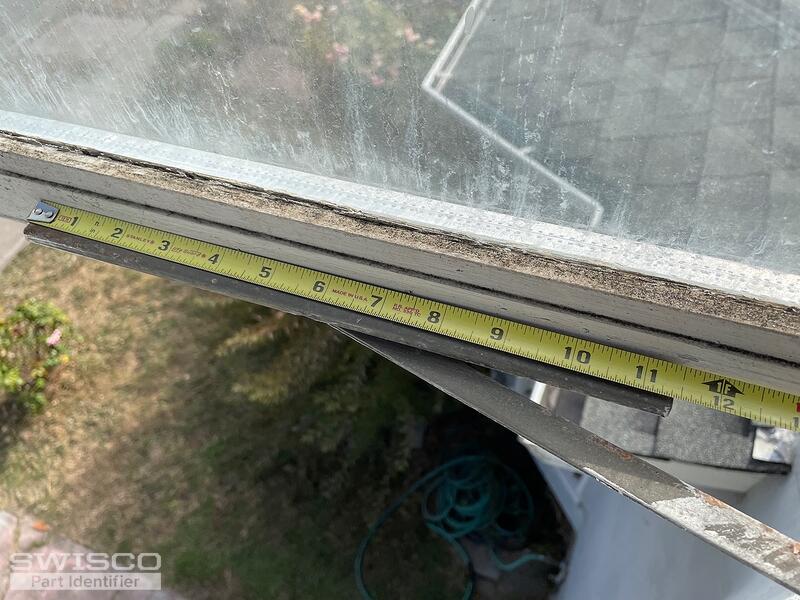

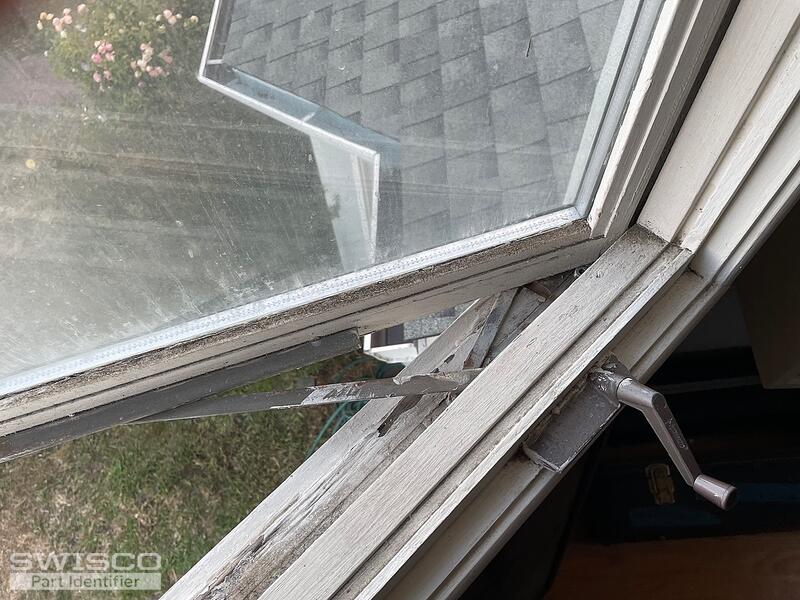

My sister has two opposing wood casement windows that she is replacing. She found a guy who builds replacement wood windows but wants us to locate replacement hardware and we're glad to find you. Hope the pictures help.  The operator arm in the first photo extends approx 13.5". the crank is in the second photo and the housing is 4" wide. The third photo is looking up at a support arm at the top of the window. So we need to find replacements for everything including a lock for a pair of windoews that open opposite each other.  Can you tell what we need? Thanks!

Tom · Accepted Answer

Hello! Your exact operator style is no longer made, but we sell the modern 39-013 and 39-014 that should work just as well in this application. These are compatible with the 39-114L handle.

It also looks like you need a new hinge. Our 36-048 may work in this case, but only if the base track is the same size at 1", and only if you replace both at the same time.

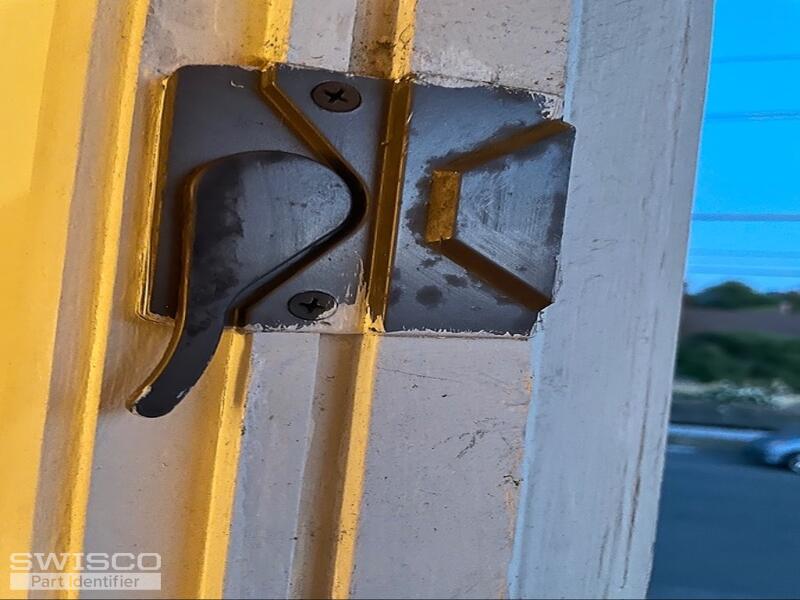

Lastly, you mentioned a lock, but I don't see it in these photos. Would you have a reference I can review? Seeing it removed from the window would be ideal, to ensure that no important details are missing.

Otherwise, please review the parts I mentioned and let me know if you had any questions.
