Replacement Channel Balance - 30" Series 795?

Home Owner from 19971 (Rehoboth Beach, DE).

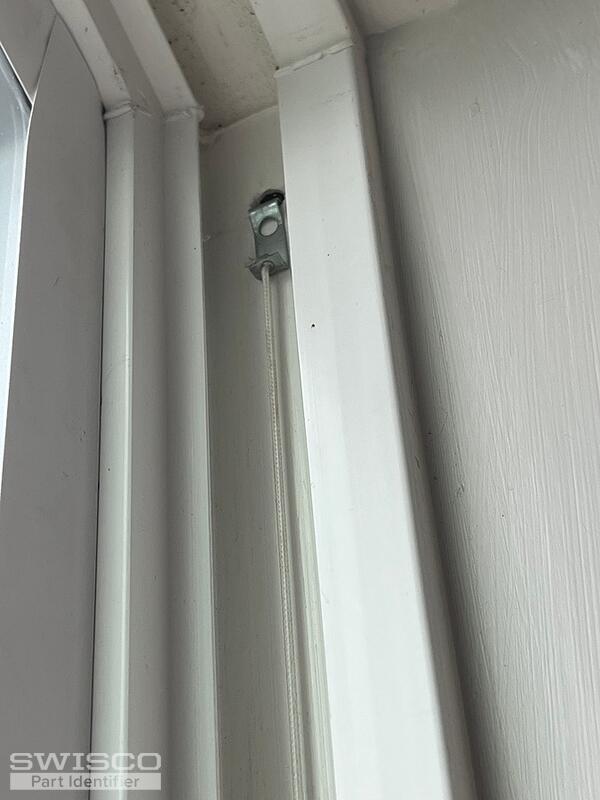

Looking to order 2 sets of replacements for the channel balance(s) for my tilt out vinyl window.  The metal hook on one side has broken and I need that type, as opposed to the above-referenced one that has an eyelet.

See pics which show the broken one, with the stamp 30D in the metal.   In addition to the channel balances, I'll need new shoes for each.  Current one measures 1-1/4" but perhaps I should also get the 1" ones just in case.

The hook has come off the one side a few times over the years and I've reattached myself, but will probably get my handyman to replace both of them once I receive the correct parts.

5 user uploaded images
3 Replies
Home Owner from 19971 (Rehoboth Beach, DE).

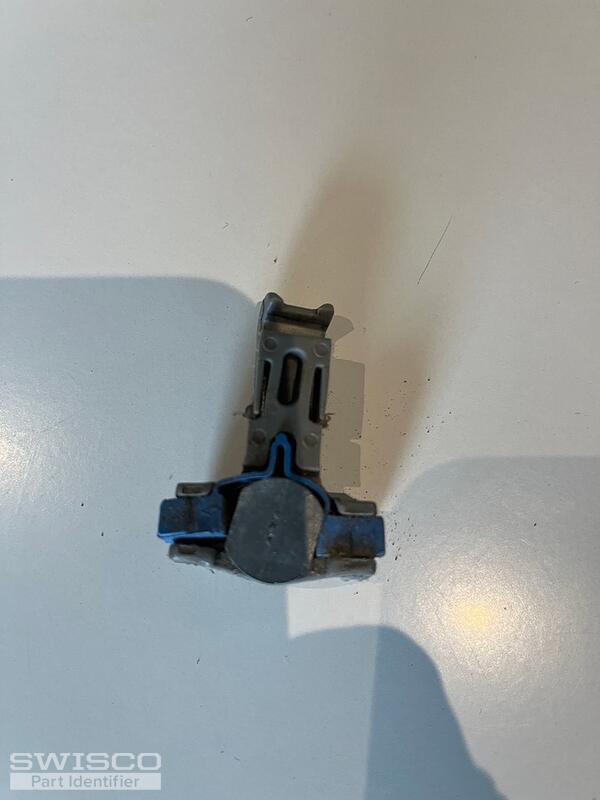

Here is another pic of the shoe.  From your site info, it appears to be a closed cam with a blue puck.  1-1/4" measurement is across the bottom at the widest point.
1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thanks for reaching out to us. Your balance is indeed a match for the Series 795. However, as you mentioned, yours uses a hook like the 15-198 so this must be a custom order.

I'll email you a purchase link for (4) S795-30 balances, 30D stamp, and the 15-198 hooks attached. Based on the blue brake on your old shoe, we recommend the 15-229 shoe. This can't be included in the purchase link so don't forget to add your desired quantity to your cart separately.

Please let us know if you have any questions!
