Replacement Door Hinge

A quick learner says:

May 10, 2018

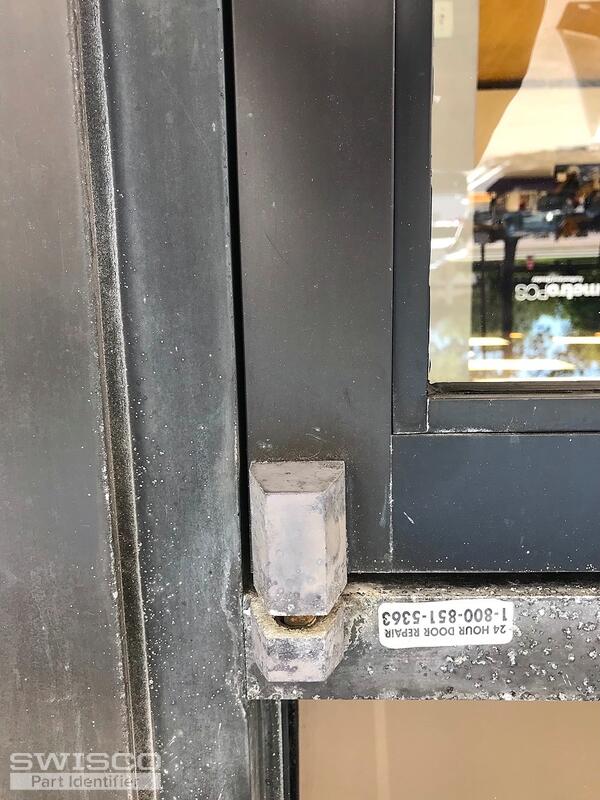

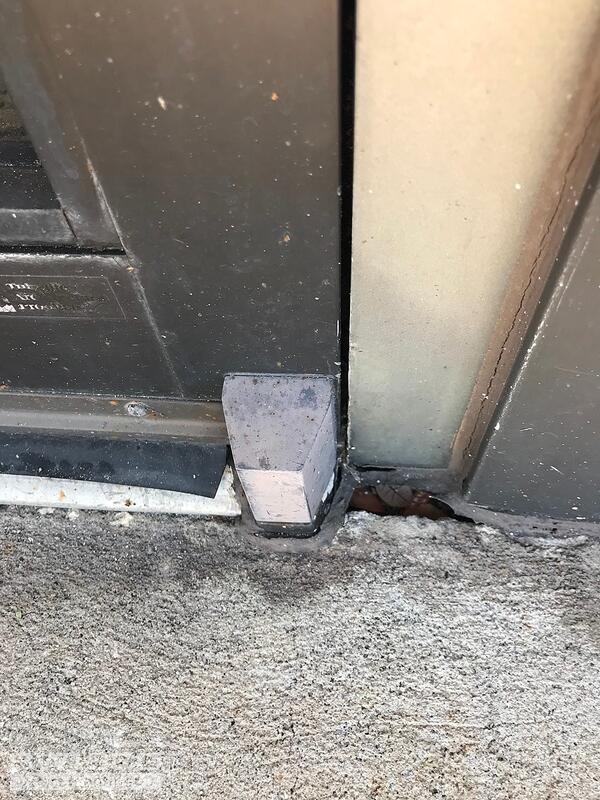

Which replacement part do I need to order?

Thumbnail of the uploaded file named 2DDAB89F-6D74-4499-B067-62A5A44E60BB.jpeg

Thumbnail of the uploaded file named 0FCF50B1-D28F-4203-B2E0-FA58F5F6502E.jpeg

Thumbnail of the uploaded file named 561F4A27-52AF-409A-8AEE-EC8B186FBDD7.jpeg

Dave Sr. from SWISCO responded:

May 16, 2018

Hi there- thanks for posting!

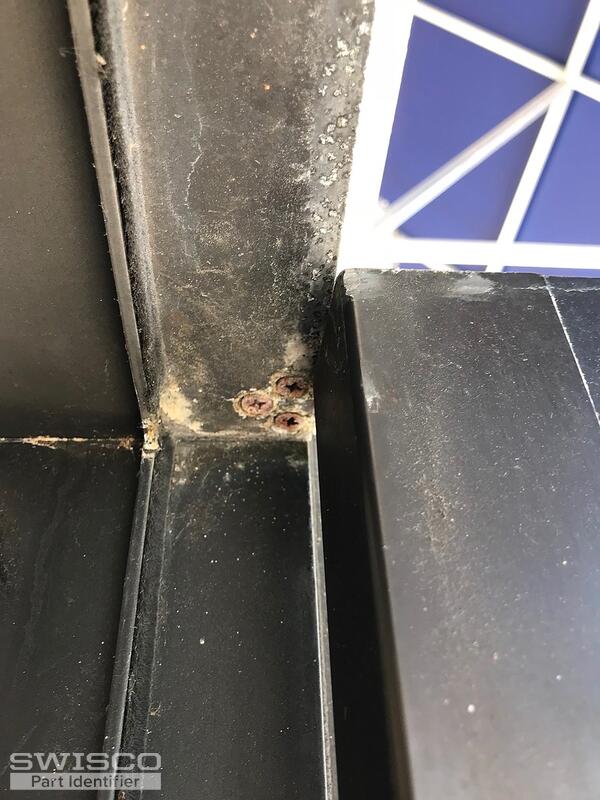

It looks like a triple hole pattern at the top, but I'm not sure about the hole pattern at the bottom. Start by looking at our 79-125 (left) and 79-126 (right), as well as 79-127 (left) and 79-128 (right)

Carefully compare our measurements and dimensions and let us know what you think.

Left 1/8" Recessed Door Offset Pivot Set, Arch

79-127

$22.37

How to Install a Commercial Door Pivot
