Replacement Parts

A quick learner from York, PA says:
October 16, 2022
I have checked numerous windows in my house and I have come to the conclusion that I need the following parts to replace my broken ones

26-243 Left Latch (x7)
26-244 Right Latch (x7)
26-360 Pivot Bar (x4)
15-194 Balance Shoe (x24)
S795-34C Window Balance (x2) but I am going to need the 15-194 balance shoe on both of those. Also my balances are held by a clip not a screw, so is it possible to put a clip on the balance as well S795-34.

Please email me with questions and if you have these parts in stock

Can you look at the pictures and see if these would work
Thumbnail of the uploaded file named IMG-2666.jpg
Thumbnail of the uploaded file named IMG-2667.jpg
Thumbnail of the uploaded file named IMG-2668.jpg
Thumbnail of the uploaded file named IMG-2669.jpg

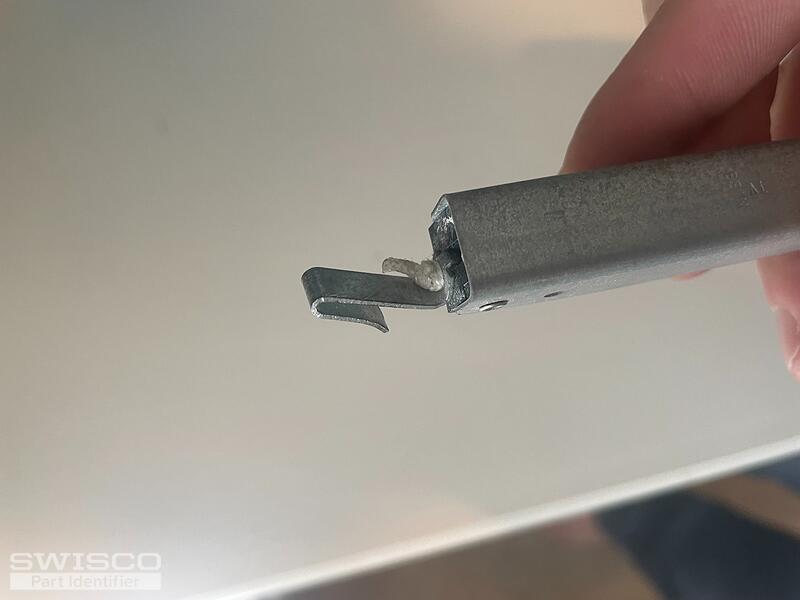

Thumbnail of the uploaded file named IMG-2672.jpg
Profile picture of Casey
Casey from SWISCO responded:
October 20, 2022

Hello,

We can supply your replacement balances but it will need to be a custom order to have the 15-194 t-lock shoe and 15-198 clip attached. We just sent over an order link and price quote for the balances you've requested.

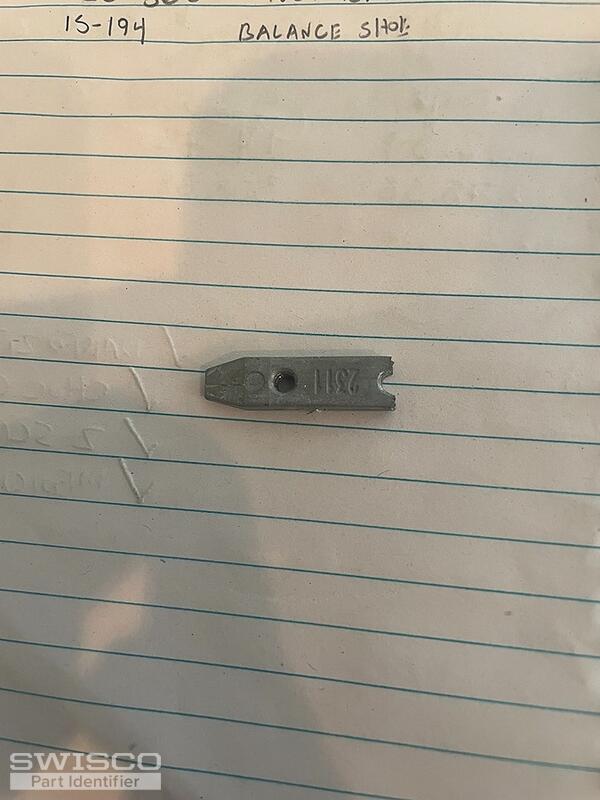

I do see that the 2311 stamped on your broken pivot bar is commonly associated with the 26-360 but make sure to compare the dimensions shown on our product page to an undamaged pivot bar to confirm.

I also agree that the 26-243 and 26-244 may work for you but you will need to confirm that the dimensions of these parts match up to yours as well. Thank you!
1" T-Lock Balance Shoe, Closed Cam
1" T-Lock Balance Shoe, Closed Cam
15-194
$2.05
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
Tilt Sash Pivot Bar, 2-1/2"
Tilt Sash Pivot Bar, 2-1/2"
26-360
$1.97
34" Series 795 Channel Balance
34" Series 795 Channel Balance
S795-34
$14.94
Balance Clip Attachment
Balance Clip Attachment
15-198
$0.70
