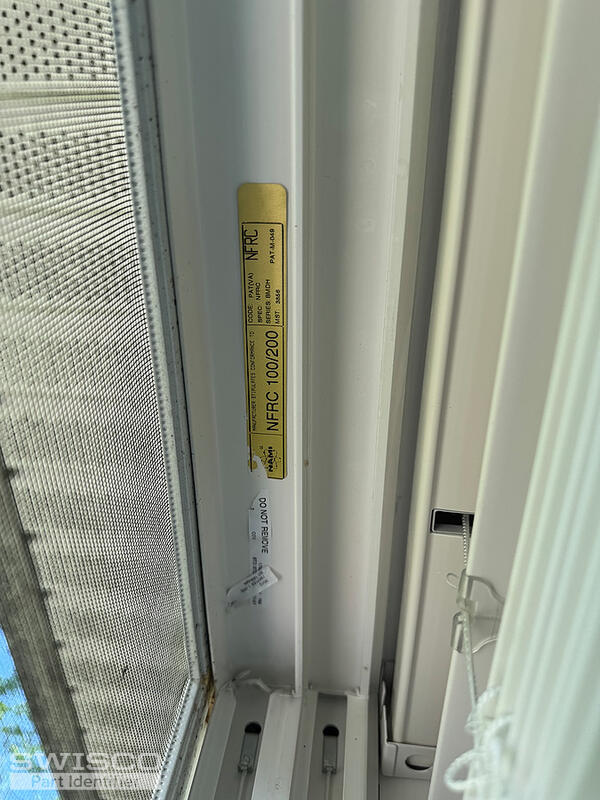

I have these balances in my windows (attached mfr label).
They are 32" x 1/2 inch
I already purchased the following
Product Code: 15-194 1" T-Lock Balance Shoe, Closed Cam from Swisco but they do not fit in the slot at the bottom as they are too thick to fit under the metal bar. The balances are good but needs the proper shoe. The width of the show is definitely correct, it fits in the channel
What replacement balance would I need?
Replacement Window Balances
Quick Learner from Elkins, WV
May 15, 2025 12:21 pm
5 user uploaded images
4 Replies
Tom from SWISCO
May 15, 2025 1:06 pm
Thanks for reaching out to us. We unfortunately don't sell a 1" wide shoe that can fit in your original metal channel. We can still help you, but it would require replacing the entire balance assembly. It would also have to be a custom order, due to your particular configuration.
If that interests you, then I will need to know how many balances you'd like to order, as well as the stamp printed on them. I can then email you a purchase link and price quote that you can use to place an order on our site.
Quick Learner from Elkins, WV
May 15, 2025 1:34 pm
I would like 6 balances to start. Current stamp is 32C
If you can send them with the 15-194 1" T-Lock Balance Shoe, Closed Cam shoe instead of the 1 1/4", that would be great

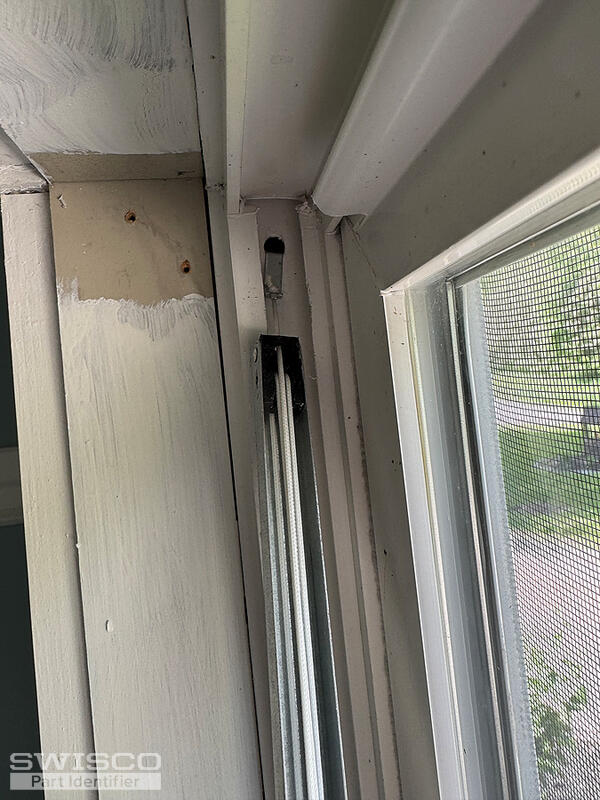

Also, notice at the top they will need a clip attachment, I believe as they go into a round hole
15-198 Balance Clip Attachment probably will work unless you have another suggestion
If these work out, I will be needing at least 20 (after the intial 6) in total most likely
Thanks
Chad
Tom from SWISCO
May 16, 2025 8:53 am
That's right, we'll be using the Series 795 as a base, but with the top clip swapped out for the 15-198 hook. These are compatible with the 15-194 shoe, but we unfortunately cannot attach the shoe for you before it ships out; these are only sold separately. The video below will show you how to swap them.
I'll go ahead and email you a purchase link and price quote for 6 balances. You can use that to place an order on or site. Please remember to add the 15-194's to your cart before you finalize your order, as well, as otherwise they will not be included.
