Replacement casement hinge hardware

A quick learner says:
February 26, 2019
Hello,

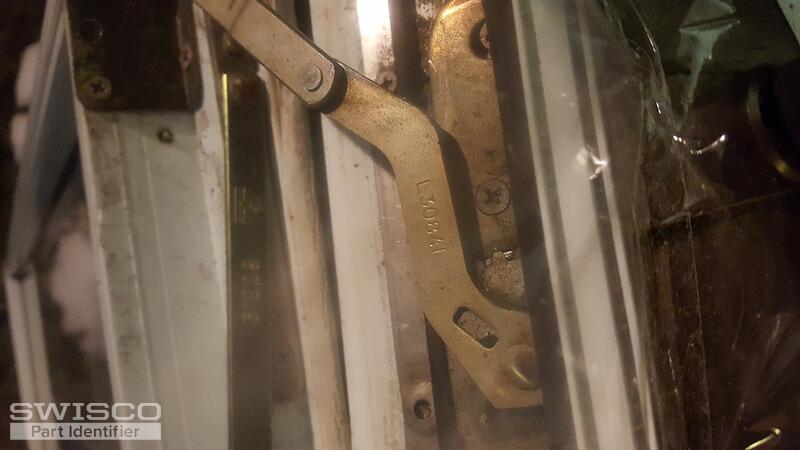

I have attached images showing the parts. The arm coming from the crank has L30841 stamped on it, and the other bottom arm has 31229 (these can be seen in picture). I am assuming I need to replace more than just the brackets? Help with identification of the parts and best option for fixing would be greatly appreciated!
Thank you,
Chris
Profile picture of Tom
Tom from SWISCO responded:
February 28, 2019

Thanks for posting! I would start with the hinges, which may have been the original culprit for the sash falling out. See our 36-048, I think this would be a good match. As for the bent brackets, see our 39-560 and 39-561. I'm not sure if you need new operators or not. Yours seem to be unbent, but I could be missing something. If you do need new operators, see our 39-035 and 39-036. These look like a more modern version of your old part.
Truth Hardware Entrygard Dyad Window Operator
Truth Hardware Entrygard Dyad Window Operator
39-035
$32.30
Truth Hardware Entrygard Dyad Window Operator
Truth Hardware Entrygard Dyad Window Operator
39-036
$32.30
Truth Hardware Operator Cover
Truth Hardware Operator Cover
39-107
$3.30
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
Truth Folding Crank Handle, 11/32"
Truth Folding Crank Handle, 11/32"
39-205
$11.70
Truth Clip-Stud Bracket
Truth Clip-Stud Bracket
39-560
$3.70
Truth Clip-Stud Bracket
Truth Clip-Stud Bracket
39-561
$3.70
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
