Replacement crank mech, handle & cover plus a couple other parts

Question

Not sure if these are Crestline or Vetter windows but I'm fairly certain these are vinyl windows from 1997 in the Minneapolis, MN area.

I need 2 crank mechs for a right hand (outside looking in) 31850 truth hardware replacement.

I also need 2 30744's as well, they are rusted out pretty badly. That is the smaller metal arm underneath the 31850 crank mech assembly.

I also need 12 of the metal or plastic pieces that help the locking mechanism stay in place while locking. I attached a couple pics showing what those look like.

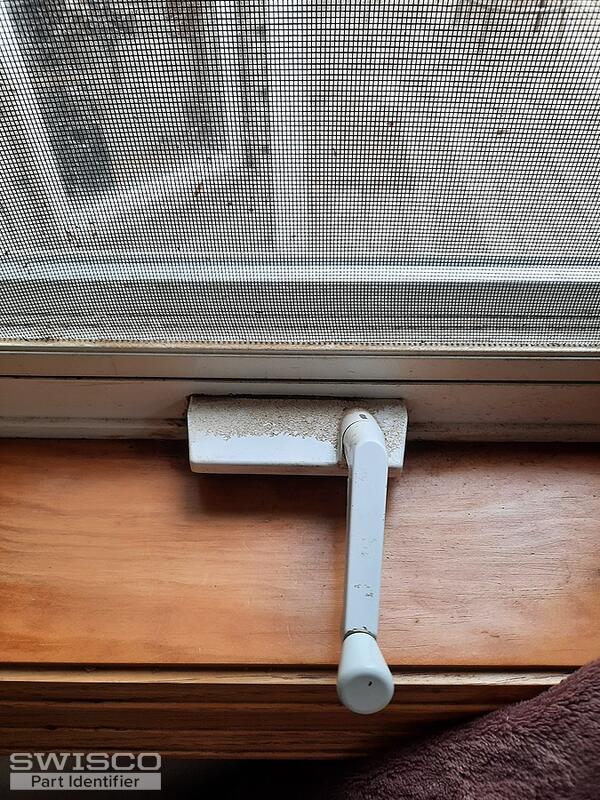

I don't know I'd that means I will also need 2 new cranks and crank covers as well. The color would be white.

Thank you for your help. Caspian Anderson.

Jasmine · Accepted Answer

Thanks for reaching out! Your casement operator looks a lot like an older version of our 39-315 and 39-316. Carefully review and compare the dimensions from your existing operator to those shown below on the diagram to determine if this is the right fit.

Alternate image for 39-316

The compatible handles are the 39-114L non-folding handle and the 39-205 folding handle.

In regard to the part stamped with the 30744, this is likely the 2-Bar Hinge set. I suggest starting with the 36-048 and comparing the dimensions to your hinge. Keep in mind, these are likely not an exact match so you will likely need to change bottom hinge. These can be used for both the left and right side of the window.

Detail of 36-048

Additional dimensions for 36-048

We do not carry an exact match for the tie bar guide you have, however our 39-417 or even our 39-448 may be worth considering as replacements. Look over the design and the dimensions to see if one of these might work for you. They are the only tie bar guides we carry.

Alternate image for 39-417

Alternate view of 39-417

Alternate view of 39-448 with dimensions

Side view with dimensions for 39-448
