Replacement for pivot pin, pivot shoe, and latch

A home owner from 11766 says:

Hello.

I need to replace 3 components for one of my single tilt window sashes.

  1. The pivot shoe has a number on it (796). I've read some previous posts that said it is no longer made. I measured mine as: thickness-1/2"; width-1 1/4"; length-1 7/8". It has a pointed end on one end and is flat on the other and attaches to a channel balance.
  2. The pivot pin is inserted into a vinyl case which then is inserted into the bottom of the window sash. I want to purchase the vinyl case along with the replacement pin. I measure the pin as: length- 2 7/8", length to screw hole-2", width-5/16", height-3/16".
  3. I measure the latch as: length-2 3/8", width-11/16", height-1/4".

Attached as photos.

Thank you.

Thumbnail of the uploaded file named 20221012_115654.jpg
Thumbnail of the uploaded file named 20221012_120009.jpg
Thumbnail of the uploaded file named 20221012_120148.jpg
Thumbnail of the uploaded file named 20221012_120235.jpg

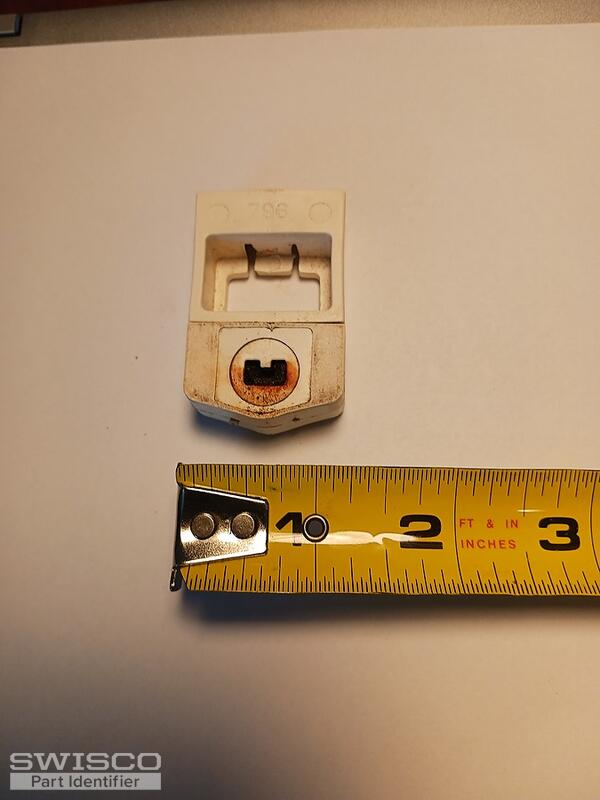

Thumbnail of the uploaded file named 20221012_120116.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello! I believe we can help with all three parts requested. Starting with the pivot shoe, my recommendation is the 15-046. The design is obviously very different but the width" x thickness" is the same and it will be compatible with all the same hardware.

For the pivot bar and case, I recommend the 26-040 and 26-382S, respectively.

Please look these parts over and let me know if you had any questions.

Alternate image for 15-046
Alternate image for 15-046

Alternate image for 26-040
Alternate image for 26-040

Dimensions for 26-382S
Dimensions for 26-382S

A home owner from 11766 says:
Thank you for sending recommendations for my pivot shoe and pivot pin and case. I also need a recommendation for my latch (photo attached). My latch measures 2 3/8" long x 11/16" wide x 1/4" high.

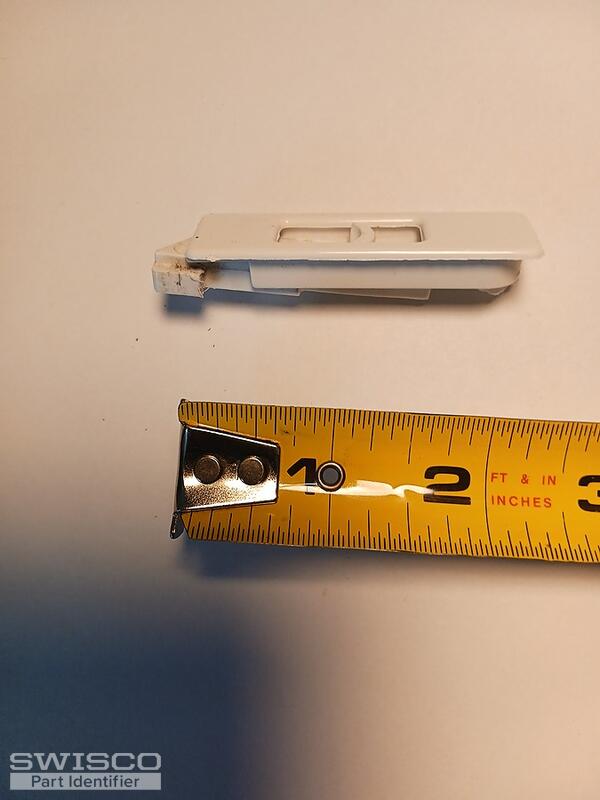

Thumbnail of the uploaded file named 20221012_120235.jpg

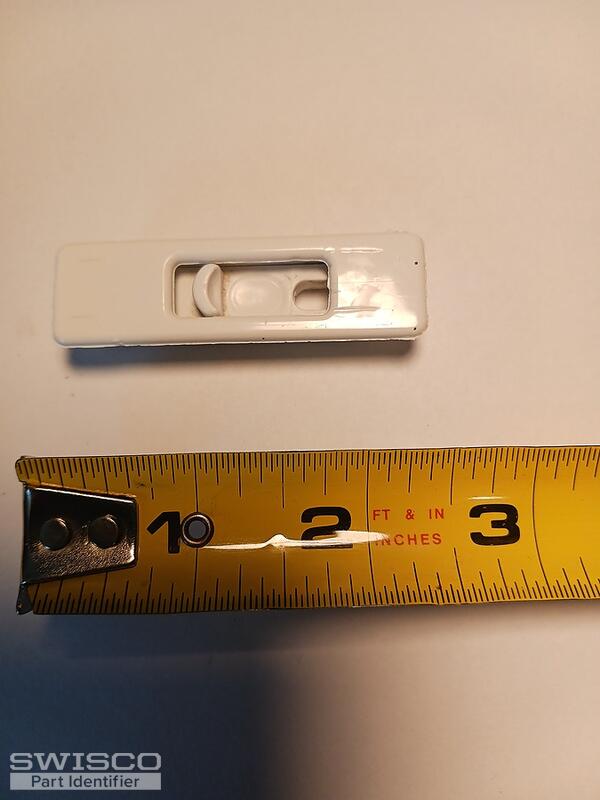

Thumbnail of the uploaded file named 20221012_120211.jpg

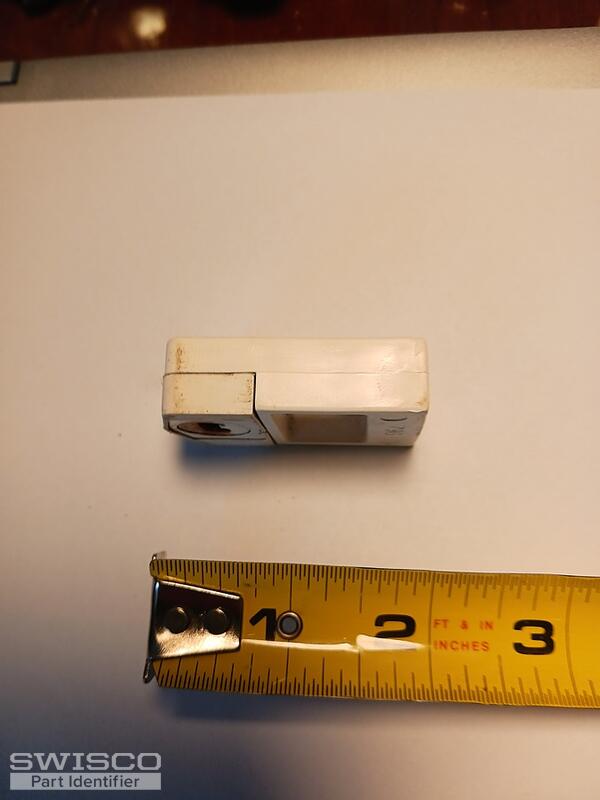

Thumbnail of the uploaded file named 20221012_120132.jpg
Profile picture of Tom
Tom from SWISCO responded:

Sure thing! This latch looks very similar to our 26-393. I will post another diagram below for you to review.

Dimensions for 26-393
Dimensions for 26-393
