Replacement hardware

Question

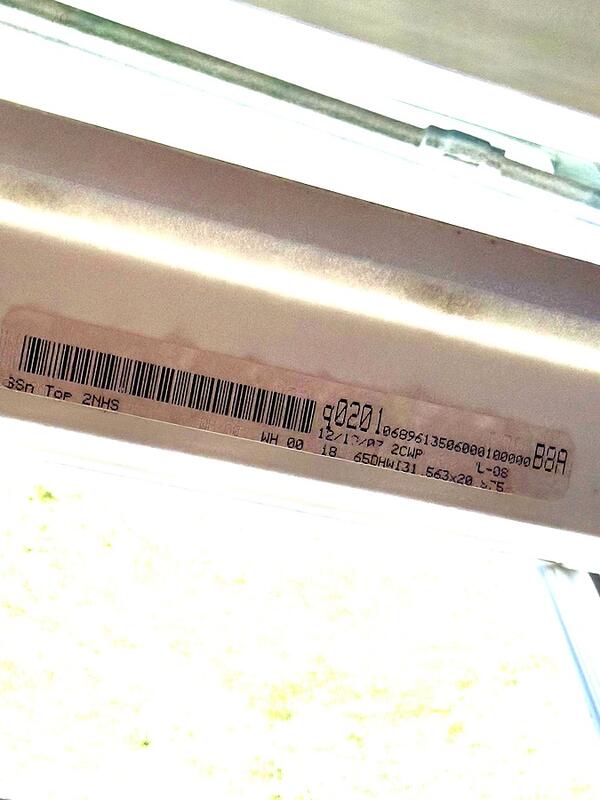

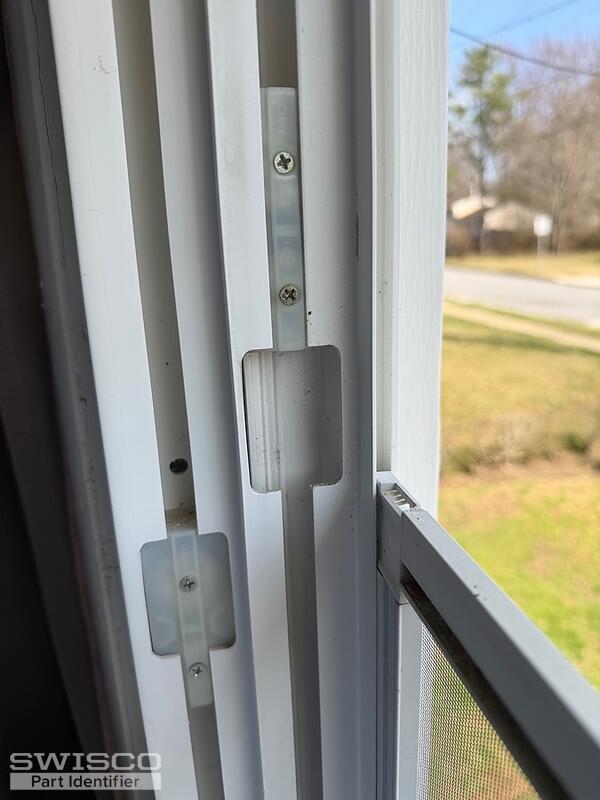

pivot shoes & I believe double coils for one window top and bottom. Also another pivot shoes and coils for another window, just the top. I've have more pictures, but also sent the info data plates of what I had. I'd like to replace the tilt latches also for not windows

Jasmine · Accepted Answer

Hello,

Thanks for reaching out to us! It appears you have a Simonton balance assembly. The exact replacement for the shoe is no longer made but the 15-259 Coil Balance Pivot Shoe will work for the repair. The existing pivot bar will not be compatible with this shoe, so you'll also need the 26-083.

You'll need the Series 159 Coil Balance to replace the coil springs. The supports used for this coils are the 15-255 (single coil assemblies) and 15-256 (double coil assemblies).

The video below describes the conversion, in detail. There is also a tutorial, tagged below this thread, with instructions on selecting the correct coil weight option.
