Replacement parts ID

Question

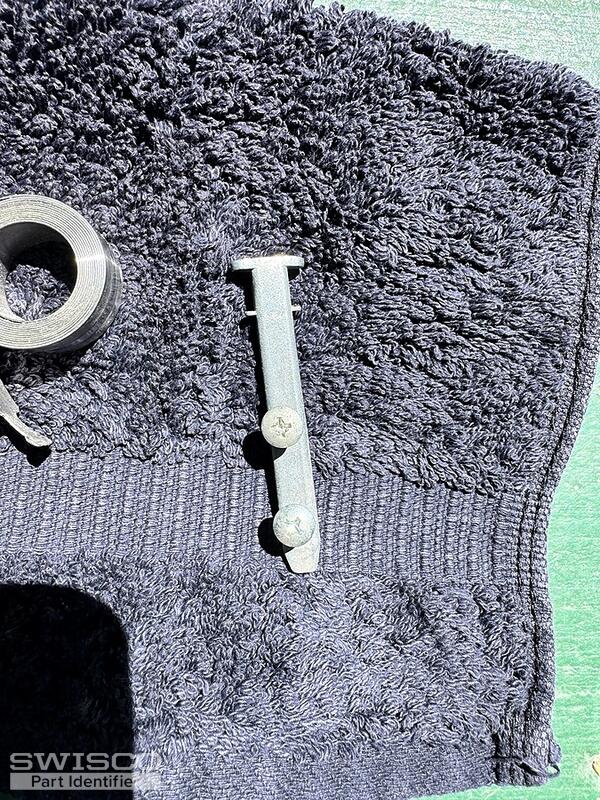

Hi, hope you can identify these parts for replacement. The sticker on window sash says "series 380DH" also has "H-R25-47x73". The coil part has #7.5 35" printed on it, also I can see the numbers PAT 5232208. The 2208 is clear but the 1st 3 numbers are questionable. The pivot pins are both slightly bent so will need replacement also.
thanks for your help!

I have an account with you from previous purchases if that at all helps.

Casey · Accepted Answer

Hello,

It's tough to be sure since your photos show the back of the pivot shoe, but the 17/32" thick 15-199 would be a good place to start. If it's a match, this show uses either the Series 160 or Series 165 constant force coil springs, depending on the width of your springs.

Alternate view of 15-199

As for the pivot bar, take a look and compare the dimensions of the 26-378 to yours. This could work if the backset of at least one installation hole matches yours. Thanks for posting!

Alternate image for 26-378
