Replacement parts for Pella window

Question

Hi,

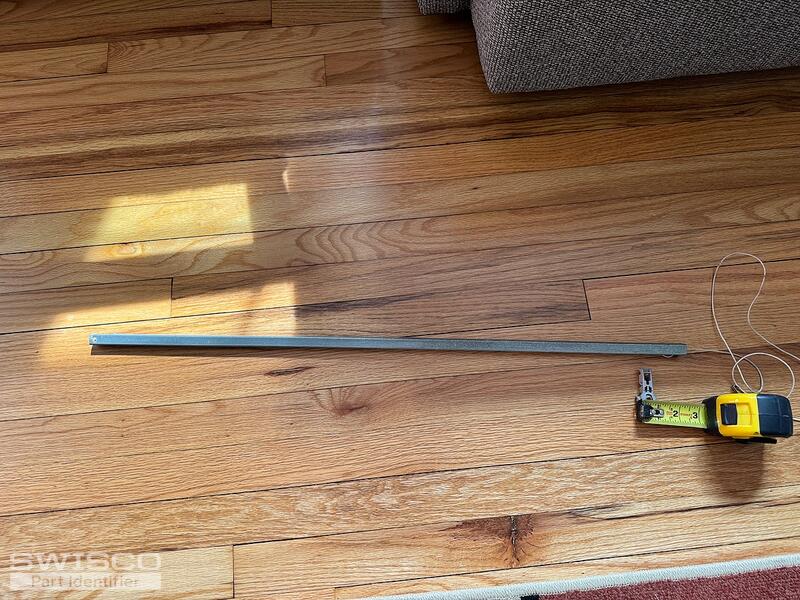

I'm looking to replace a set of channel balance and t-lock balance shoes for a sash in my Pella window. My existing channel balance is stamped 30D and from my research here it looks like that may line up with your S795-30 30" Series 795 channel balance. It's 30" long and the window sash weighs around 29lbs.

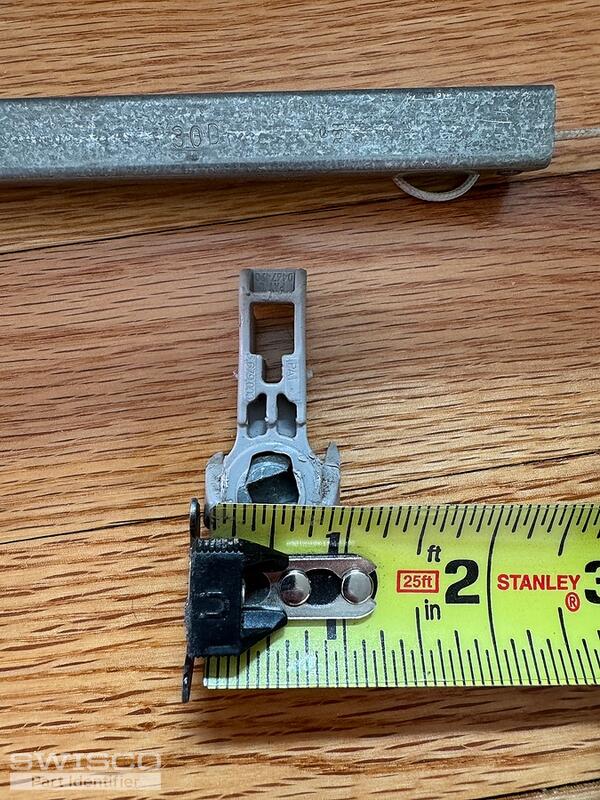

The t-lock balance shoe is 1" wide. The channel balance attaches to the frame with a pulley clip, rather than a screw.

I assume this will be a custom order, since I need the pulley clips. Will my existing pivot bars work with your replacement parts?

I'll also need to include a Jamb Spreader Set in my order.

Thank you.

Emily · Accepted Answer

Hello!

Thanks for reaching out to us. This is indeed a match for our Series 795 but this installs with a screw as you mentioned. However, we can certainly assemble your replacements with the 15-198 hook attached. I'll go ahead and email you a purchase link and price quote for (2) S795-30 balances with the 30D stamp option and 15-198 hook attached that you can use to place an order on our website. Your existing pivot bar ought to work with our 15-194 shoe if it's the same as your old one which it looks to be.

Please note that the jamb spreader tool and 15-194 T-lock shoe can't be included in the link so don't forget to add your desired quantity to your cart separately! I'll be here if you have any questions.
