Replacement pivot pin

A quick learner says:
August 29, 2022

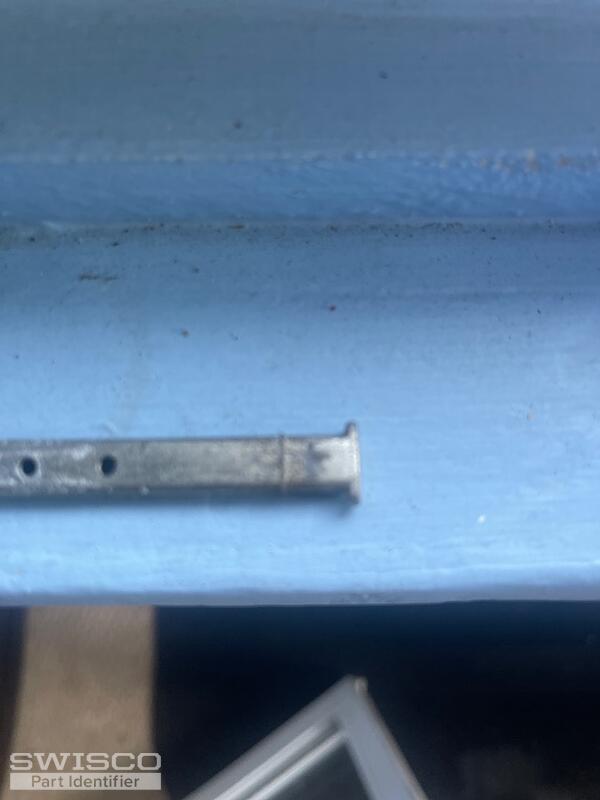

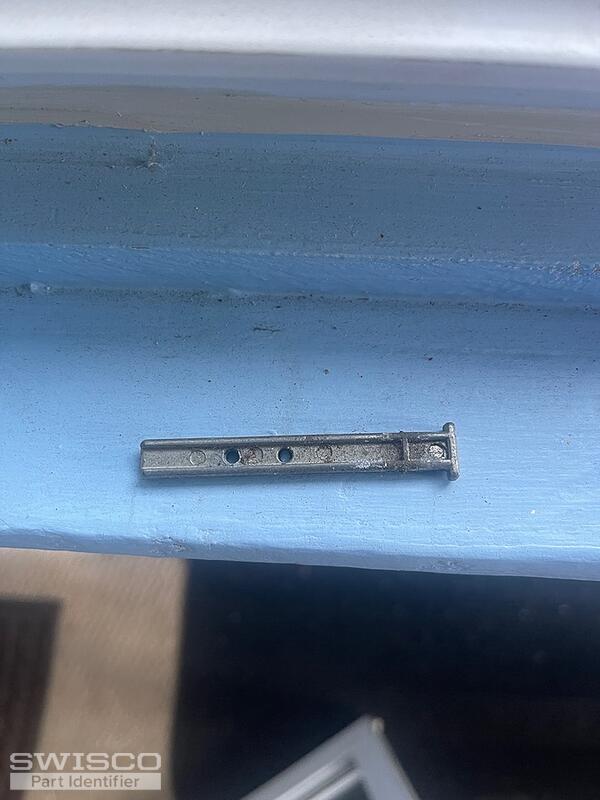

This is a bottom pivot pin in either side of the window.
This is a straight bar with 2 holes.

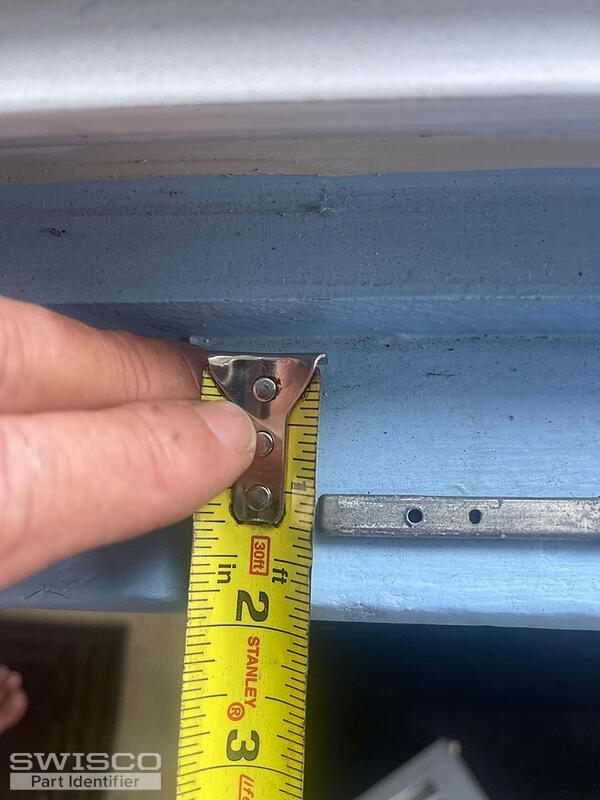

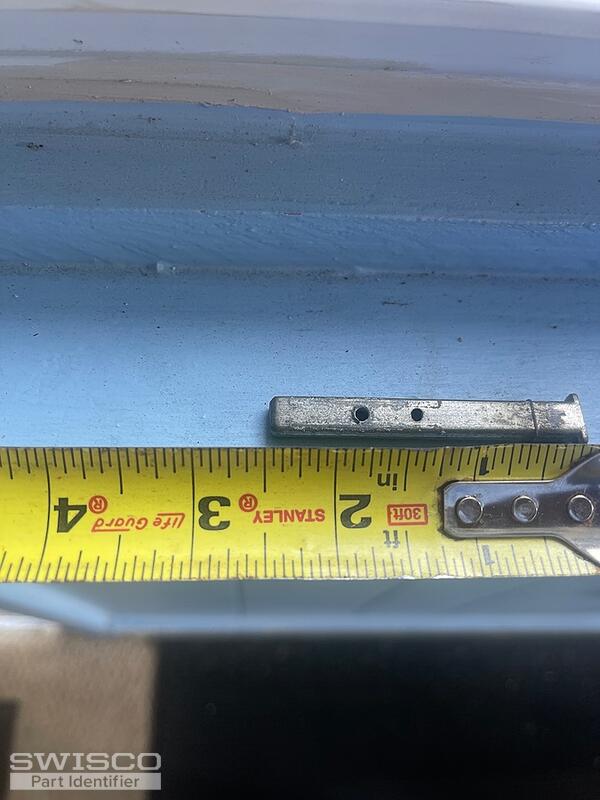

Please see measurements in pictures
Thumbnail of the uploaded file named 8006B507-AE84-4ED5-9270-BA0D9F302713.jpeg
Thumbnail of the uploaded file named F9F2EBFC-5C08-4D1F-9EBE-F09CF378EF0F.jpeg
Thumbnail of the uploaded file named D5D95CBE-FCD3-4948-815F-92AC5CC7F695.jpeg
Thumbnail of the uploaded file named 9B76401D-461B-43EF-ACCF-24E0902D2CCB.jpeg
Profile picture of Casey
Casey from SWISCO responded:
August 31, 2022

Hello,

It doesn't look like we carry an exact match for your pivot bar but take a look at the 26-378 and 26-452 to get started. Look over the dimensions and see if you think either of these could work for your application. Keep in mind that the offset of at least one installation hole needs to match your original part for it to install in the sash properly. Thank you!

3" Pivot Bar
3" Pivot Bar
26-378
$2.15
T Bar Pivot
T Bar Pivot
26-452
$2.07
