Replacement window parts

A handy person from San Francisco says:
I'm looking for these two parts, do you carry them?
Thumbnail of the uploaded file named IMG_3298.jpeg
Thumbnail of the uploaded file named IMG_3297.jpeg
Thumbnail of the uploaded file named IMG_3296.jpeg
Thumbnail of the uploaded file named IMG_3295.jpeg
Thumbnail of the uploaded file named IMG_3294.jpeg
Profile picture of Tom
Tom from SWISCO responded:

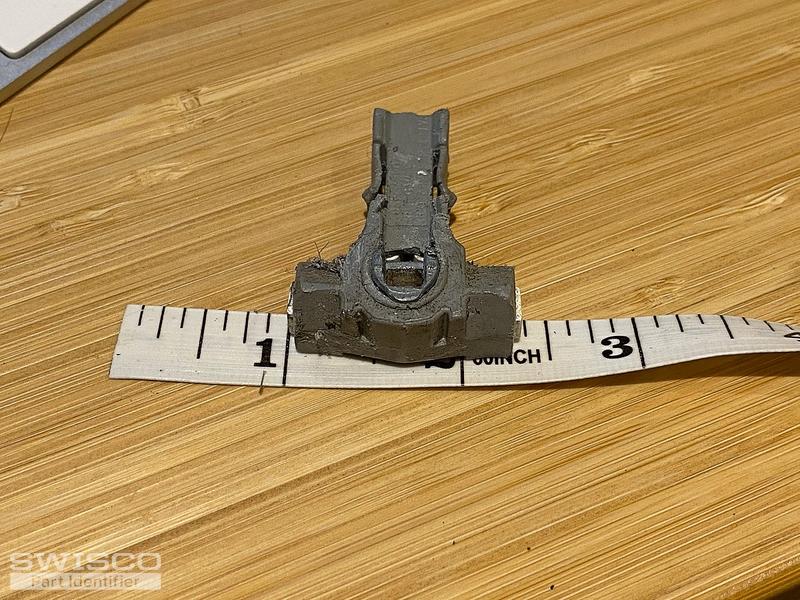

We don't have either part, unfortunately. The pivot shoe looks similar to our 15-195 at first glance, but yours has a deep groove in the stem that ours lacks. This groove is designed to fit into a similar groove in the metal channel of the balance itself. Since the 15-195 lacks that groove, it won't fit. The only solution we can recommend is buying an all new Series 795 channel balance.

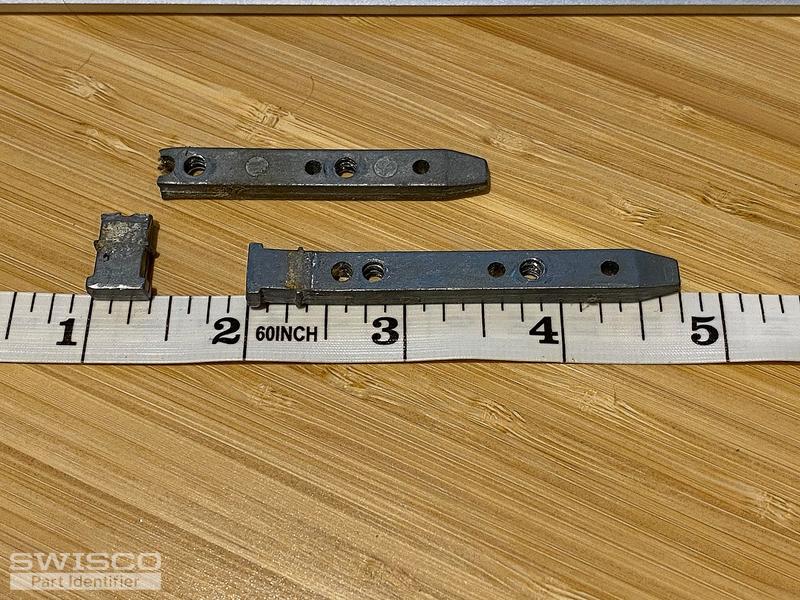

As for the pivot bar, we also have a couple that are similar but none are exact. Your installation hole pattern is actually pretty unique and nothing we have lines up. With that in mind, I'm going to recommend a couple for you to review. The tips should work in each case, but I'm more concerned about the hole pattern. See our 26-241, 26-360, 26-415, and 26-452. Review the dimensions we show on each products' respective store page to confirm the best match.

A handy person from San Francisco says:
Thank you so much! Two follow up questions:
1) Could I just use a dremel to add the grove to the pivot shoe?
2) Would all the pivot bars you recommended work with the Series 795 channel balance?

Profile picture of Tom
Tom from SWISCO responded:

I'm not sure I want to recommend dremmeling into the 15-195 shoe. It's not a solid piece of plastic so you may only end up shattering it. I would advise against it.

The pivot bars I mentioned should all be fully compatible with the Series 795, yes.
