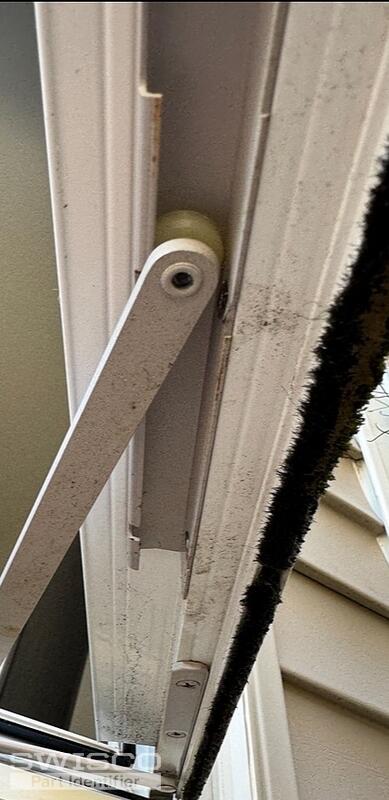

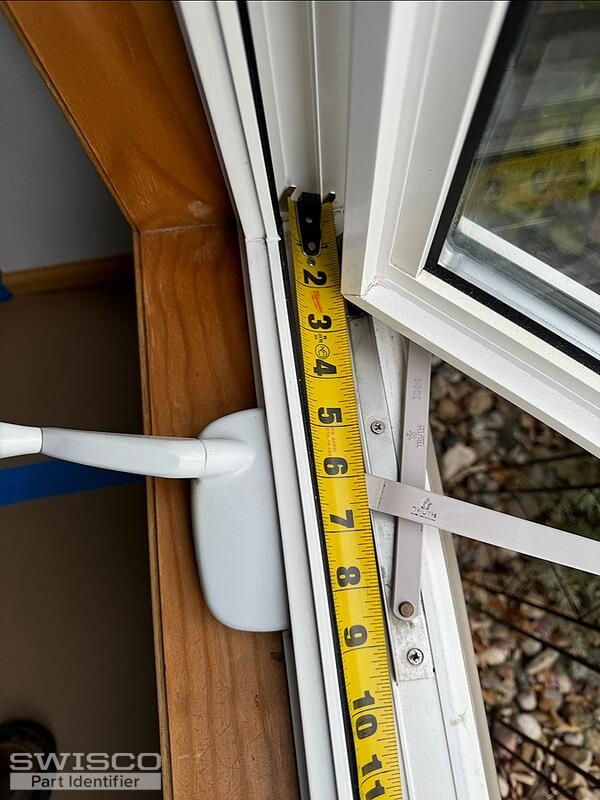

Am looking to purchase like hardware for a casement window. I need the hardware for the sill mechanism and the track for the bottom of the window. The pictures shown are from the opposite window I need the parts for. The parts window (standing outside the house) is on my left side.
Thank you!
Replacement casement window parts
Handy Person from Iowa
Nov 4, 2024 9:38 am
5 user uploaded images
2 Replies
Casey from SWISCO
Nov 6, 2024 12:52 pm
Hello,
Your photos resemble the 39-014 operator at first glance, which measures 13-1/2" long. We also offer the 39-013 opposite-handed version. Both operators are commonly used with the 39-505 and 39-507 tracks, depending on the length you need.
Dimensions for 39-014
Alternate view of 39-505
Dimensions for 39-507
As for the hinges, see the 36-048 set with a 10" long base. Thanks for posting!
