Replacements for 2 Block and Tackle window balances

Quick Learner from Bel Air, MD
Jul 25, 2024 2:23 pm
Single Hung Tilt Window

Our house was built in 2002-2003.

I need 2 new balances for 1 window

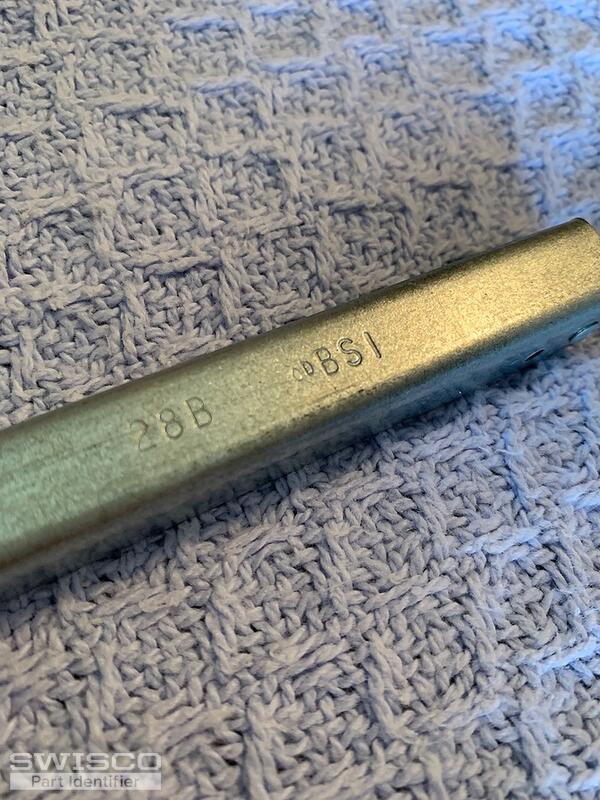

28B stamped channel t lock channel balance window sash window sash hook

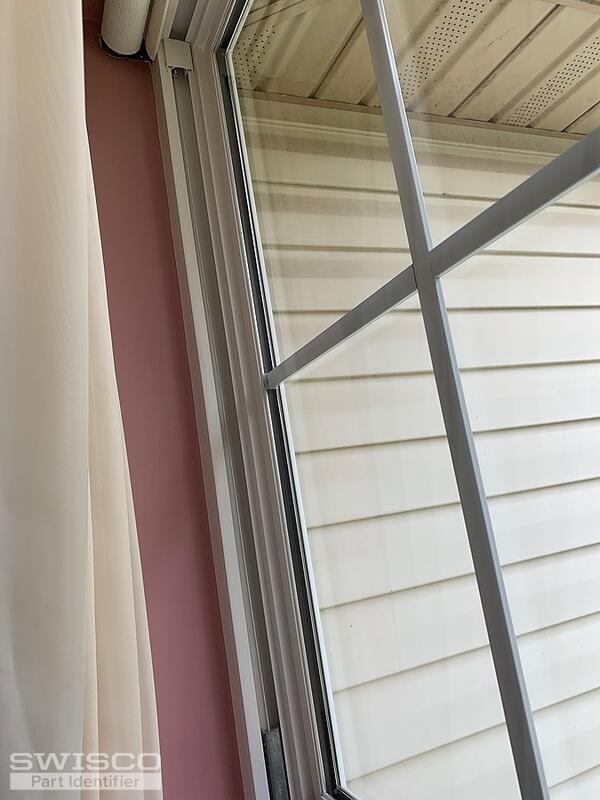

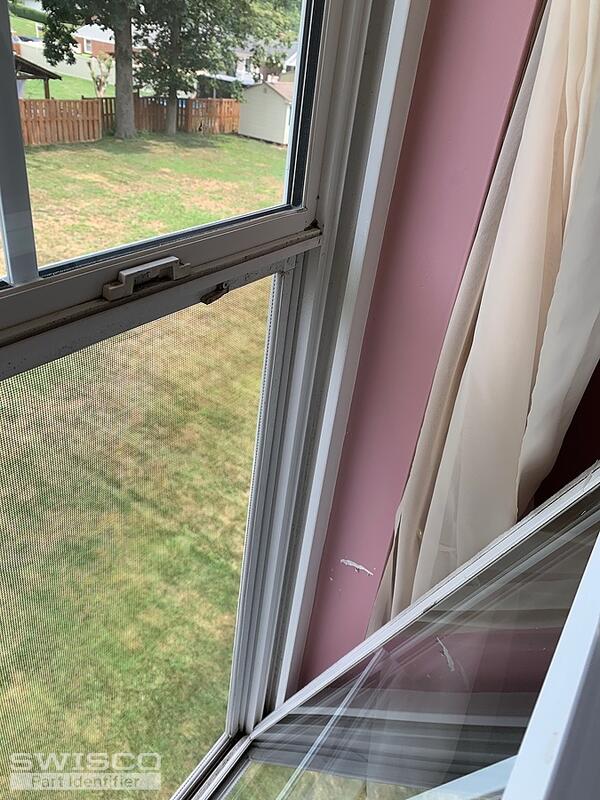

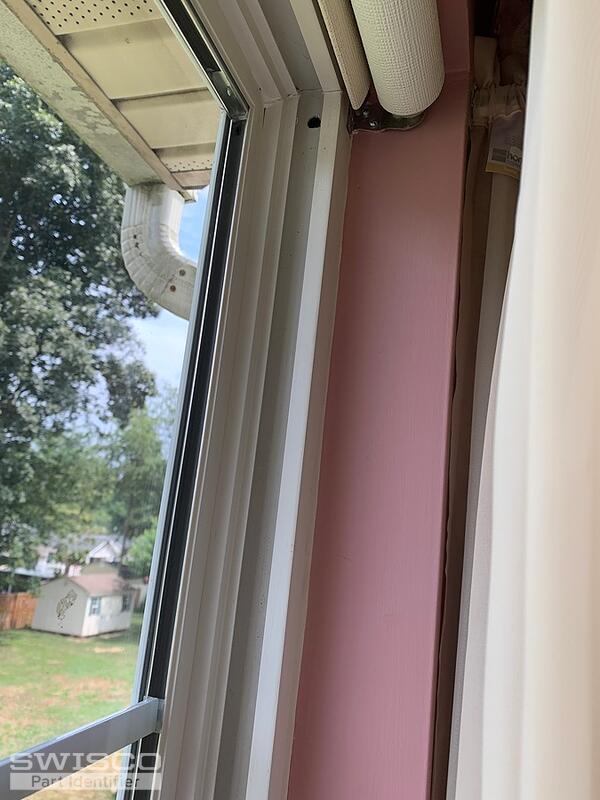

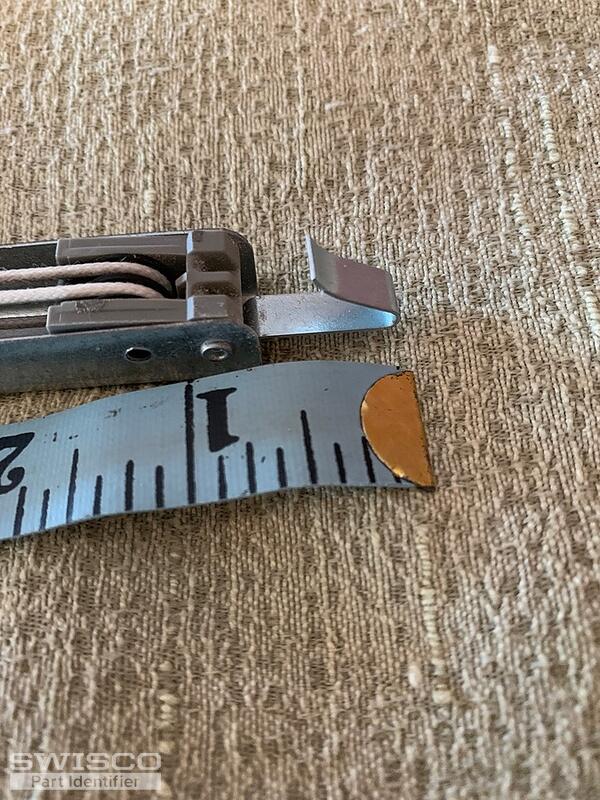

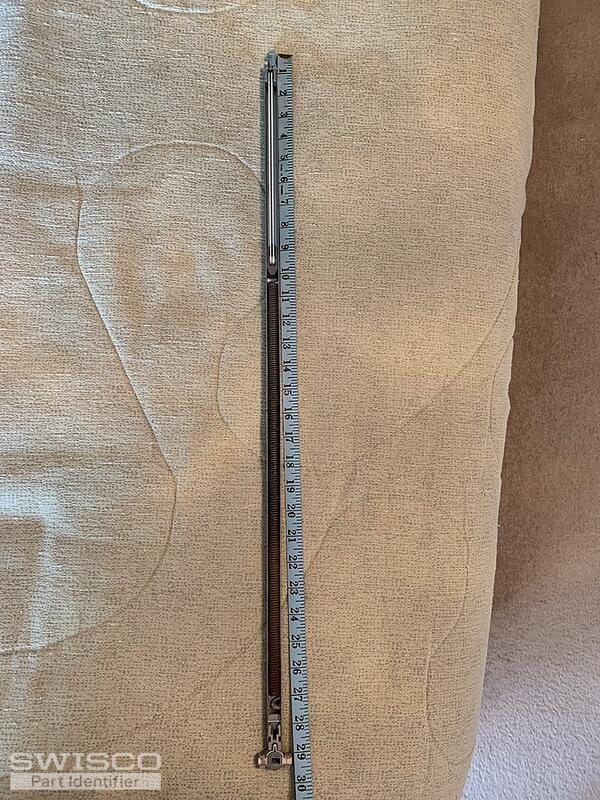

5 user uploaded images
11 Replies
Quick Learner from Bel Air, MD
Jul 27, 2024 3:54 pm
Why was my discussion closed?
I did not receive any emails regarding my request.
Emily
Emily from SWISCO
Jul 29, 2024 9:47 am
SWISCO
EXPERT

Thanks for reaching out to us. Your discussion is open. This is the first time we're seeing it.

Your balance is a match for the Series 795 but this uses a screw tab for installation where your old balance uses a hook. We can still help via custom order though. I'll go ahead and email you a purchase link for (2) S795-28 balances with the 28B stamp and 15-198 hook attached. You will also need to add the 15-195B shoes to your cart separately and then install it to the balance as shown in the video below.

Let us know if you have any questions!

Quick Learner from Bel Air, MD
Jul 30, 2024 1:25 am
Unfortunately the hole where the hook went into is round.
IMG_9205
1 user uploaded images
Emily
Emily from SWISCO
Jul 30, 2024 8:22 am
SWISCO
EXPERT

Our replacements will be made to match your old balances so they'll be able to install with a hook into that hole as well.

Quick Learner from Bel Air, MD
Jul 30, 2024 10:38 am
So I will not need to purchase a screw plug?
Thank you!
Emily
Emily from SWISCO
Jul 30, 2024 10:45 am
SWISCO
EXPERT

Nope, a screw plug is not needed for this repair!

Quick Learner from Bel Air, MD
Jul 30, 2024 10:59 am
Thank you Emily!
Emily
Emily from SWISCO
Jul 30, 2024 11:04 am
SWISCO
EXPERT

My pleasure! I'll be here if you need anything else or have any other questions.

Quick Learner from Bel Air, MD
Jul 30, 2024 11:08 am
So just to be clear, I only need to purchase:

*(2) Channel Balances
*(2) T-Lock Balance Shoes.

The balance clips will already be attached to the channel balances?
Emily
Emily from SWISCO
Jul 30, 2024 11:21 am
SWISCO
EXPERT

Yes, the purchase link is for (2) of the balances we discussed previously which will have the 15-198 hook attached. You'd then have to add (2) 15-195B shoes to your cart separately.

Quick Learner from Bel Air, MD
Jul 30, 2024 11:35 am
Great! Thank you again ?
