Replacing window channel balance on non tilt windows.

A quick learner from Florida says:
I was trying to replace the channel balances and one of the silver clips became bent up and unusable. And I want to make sure I'm using the correct balance as well. Thanks:)
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. We can replace this balance for you, but we'll need you to remove it from the window so you can provide clear pictures of the nylon fittings on either end of the balance. Confirming the length of the metal channel would also be helpful. From there, we'll narrow down the right balance Series for you. If you need a new take-out clip, see our 16-002. Many thanks.

A quick learner from Florida says:

Ok I took some pics of the nylon fittings. I also need top sashes. Took some pics of those too

And the channel balance measure 29" in length

Thumbnail of the uploaded file named image.jpg

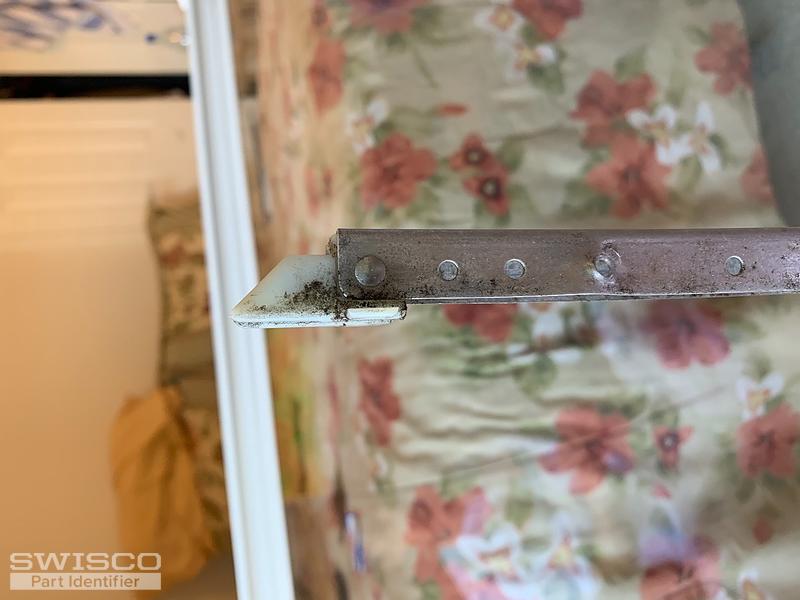

Thumbnail of the uploaded file named C2DF527B-D921-40E4-B249-FFE64C976427.jpeg
Thumbnail of the uploaded file named 6CD74C4E-CDE0-4BB7-94F7-D9A91A6B8587.jpeg

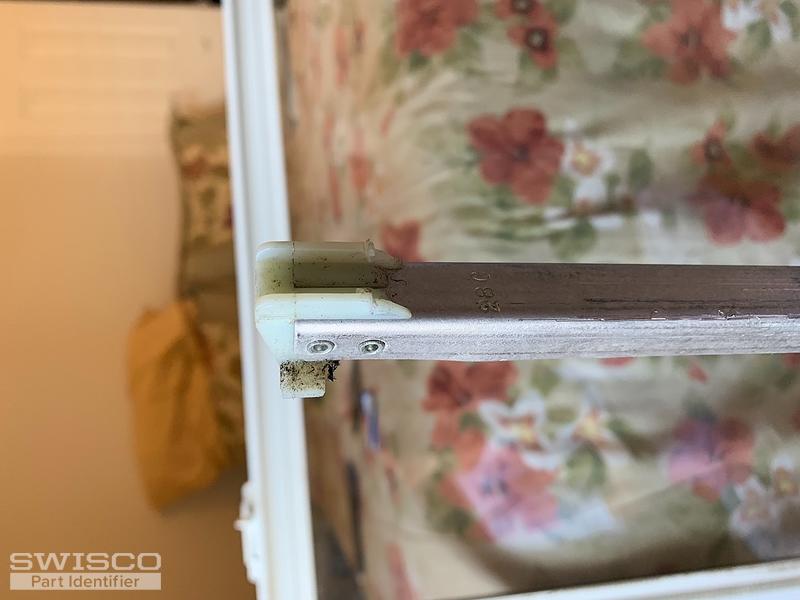

Thumbnail of the uploaded file named 4044CF84-F191-4336-97B1-EB2D83835E74.jpeg
Thumbnail of the uploaded file named CEC9C725-8607-4AE4-8142-DB011EF36C44.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks! This looks like our S380-29 channel balance. I'd also recommend a 2830 stamp, since your old one reads "28C."

For the top sash guide, see our 18-180.
