Right and Left opening Casement lock mechanism for

Question

9D504 is stamped on the left opening hinge shown above.

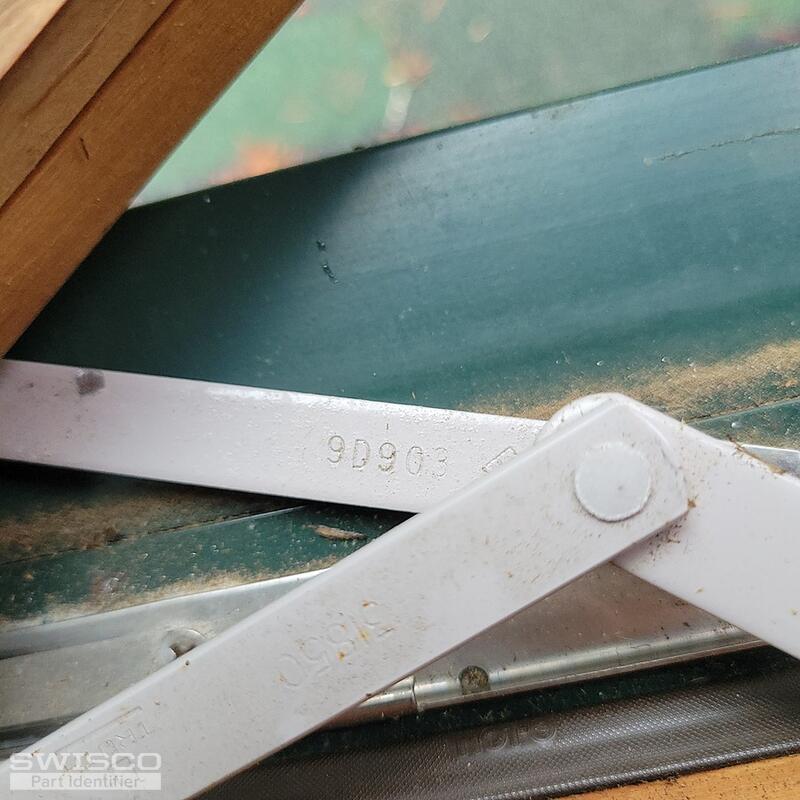

9D903 is stamped on the right opening hinge shown above.
I need both right and left opening kits including handles which are stripped out.
Please let me know part number and order process.

Emily · Accepted Answer

Thank you for reaching out to us. Take a look at the 39-315 and 39-316 operators, along with the 39-545 and 39-546 brackets. We also have the 39-205 folding handle. I'm not sure of the dimensions for your hinge, but you can start by taking a look at the 36-048. You'll also want to replace the top and bottom hinges at the same time.

Note that these parts are not sold as kits; they're sold individually. We recommend you review the specifications to ensure they match your repair needs.

Alternate image for 39-315

Alternate image for 39-316

Detail of 36-048

Additional dimensions for 36-048

Side profile view with measurements.

Dimensions for 39-546

Dimensions for 39-545
