Searching for 810020

A quick learner says:
June 1, 2021
Looking for window balance ,for simonton windows
Thumbnail of the uploaded file named 20210601_090246.jpg
Profile picture of Tom
Tom from SWISCO responded:
June 7, 2021

We should be able to help, but you only show the top part of the balance assembly. In order to help I will also need to see the pivot shoe underneath this top portion. I'd also like you to tell me how thick the coil springs themselves are.

I'm confident that I can get you the right replacement assembly once I have that information.
A quick learner says:
June 14, 2021

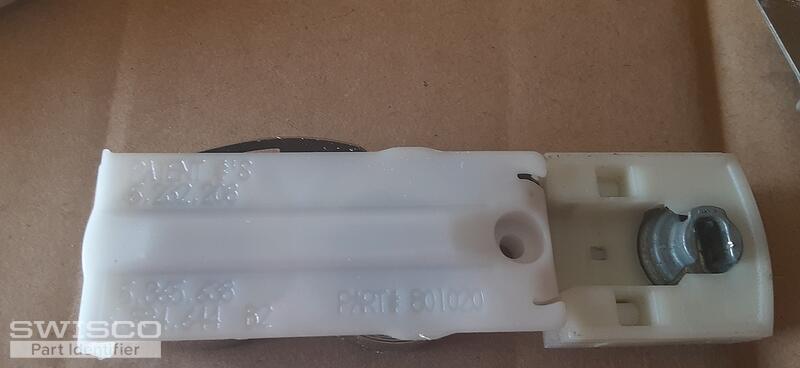

This is pictures of the 810020 balance
Thumbnail of the uploaded file named 20210614_101105.jpg
Thumbnail of the uploaded file named 20210614_101121.jpg
Thumbnail of the uploaded file named 20210614_101146.jpg
Profile picture of Tom
Tom from SWISCO responded:
June 14, 2021

Thank you! That pivot shoe is a match for our 15-199, which is compatible with two different springs: the 1/2" thick Series 160 and the 3/8" thick Series 165. You'll have to confirm the thickness to know which spring will work for your window.

Assuming your shoes and covers are still in good condition then you can reuse them.
A quick learner says:
June 14, 2021
1/2 inch
Profile picture of Tom
Tom from SWISCO responded:
June 14, 2021

Great! That would be our Series 160, then. If you did end up needing the cover then I recommend the 15-150D.
1/2" Coil Double Support
1/2" Coil Double Support
15-150D
$1.57
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
