Searching for Truth Window Crank/ Split Arm Operator Left hand Traditional Style 31850

Quick Learner

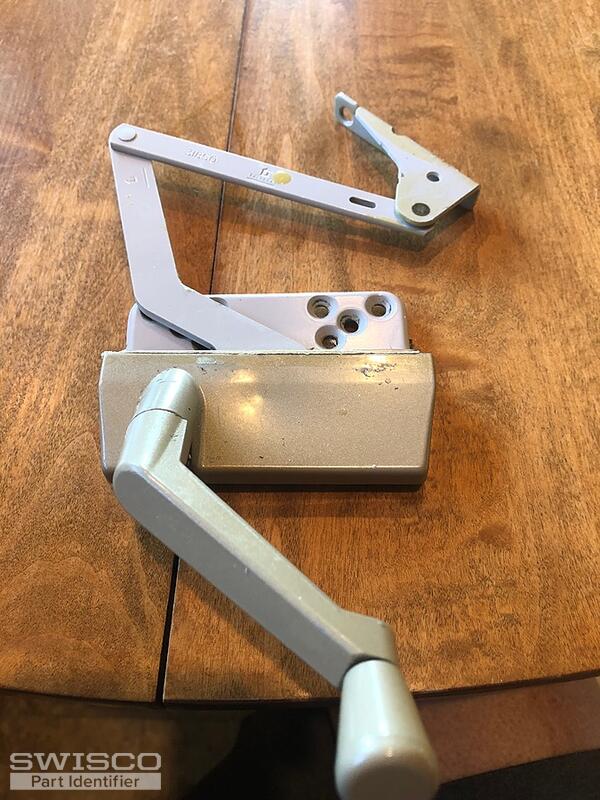

Truth Window Crank/ Split Arm Operator Left hand Traditional Style 31850

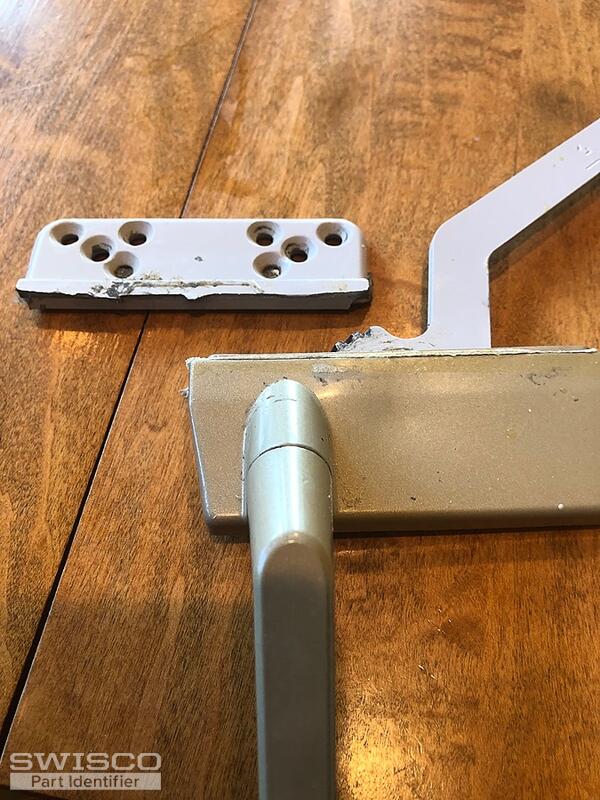

The arm is broken. Need to replace it but don't know where in Salina Kansas it might be found.

Thank you for your help.
2 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for writing in! Your operator looks like an older version of our 39-315 and its opposite handed version, part 39-316. To determine if this is the right replacement, carefully look over the dimensions and compare them to your existing operator.

The compatible handle is our 39-114L. You may also need to replace the bracket with our 39-545 Truth Snap-Stud Bracket. The opposite handed version is part 39-546.

Alternate image for 39-315
Alternate image for 39-315

Quick Learner
Will the handle and bracket from my original 31850 fit on the newer version 39-315?
Jasmine
Jasmine from SWISCO
SWISCO
Expert

It should fit fine. However, if you were looking to replace the handle, our 39-114 is the most similar to your existing handle. There is also the update version, part 39-114L.
