Series 152 Coil Balance Quote

Question

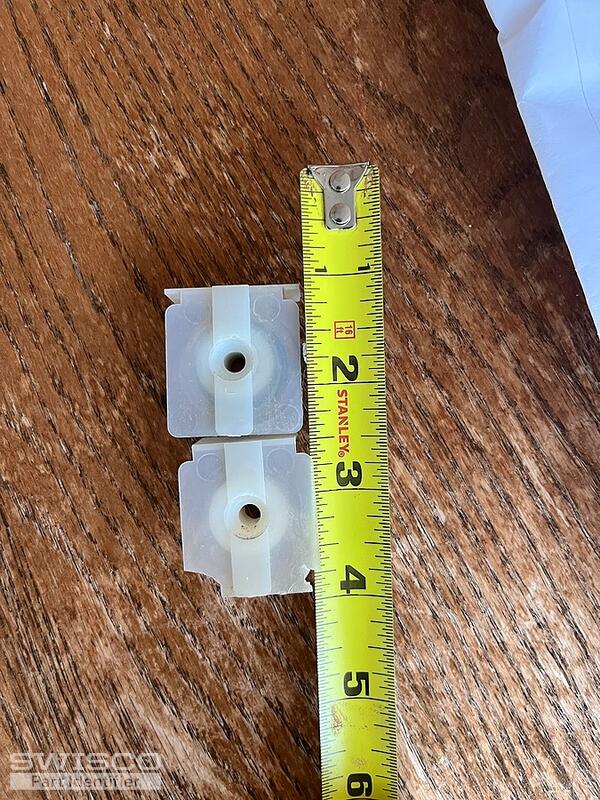

I need to replace the double coil balance on a couple of windows including the plastic covers. Which should I order? I have already purchased the 15-177 slate blue coil balance shoes from you. The weight of the sash is 30lbs. The old system has two plastic holders that hold a coil in each on an axle. The length of center to center distance between the two mounting holes on the plastic axles is 1 3/8".

Jasmine · Accepted Answer

Hey there,

Your balance shoe seems to be an exact match for the 15-177 Coil Balance Shoe. The pivot bar reminds me of the 26-030.

These pivot shoes are compatible with our Series 152 Coil Balance. They are attached to the shoe using the 33-072 screw. Given the sash weight, you'll need the S152-7 and S152-8 to replace the coils.

If you need replacements for the coils supports, the 15-143 Coil Bushing, 15-144 Coil Bushing Cap, and 15-145 Coil Support Barrel are used to replace them. All three snap together to complete the supports.

The latches remind me of the 26-243A and 26-244A.

Carefully compare the dimensions for each of the recommended parts, on the website, to confirm that they are the replacements you'll need.
