Silveline Casement Operators

Home Owner from New Jersey

Jan 26, 2021 11:37 am

I have a Silverline casement window in the kitchen, both right and left handle turner are broken and I would like to replace them , Is that possible and which product do you suggest i should get from your catalog.

Thankyou
Jay

1 user uploaded image

8 Replies

Tom from SWISCO

Jan 27, 2021 11:52 am

Hello, Jay. I'm afraid I can't ID what you have from this photo, as too much of the operator is obscured. In order to find a match, I need to see a clear picture of the entire operator mechanism out of the window. Let me know if that would be possible.

Home Owner from New Jersey

Jan 30, 2021 9:50 am

Hi Tom

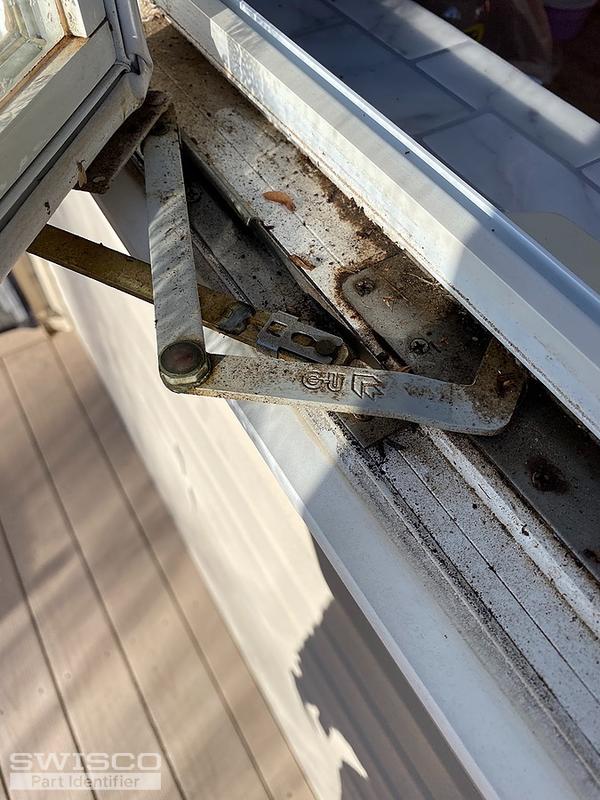

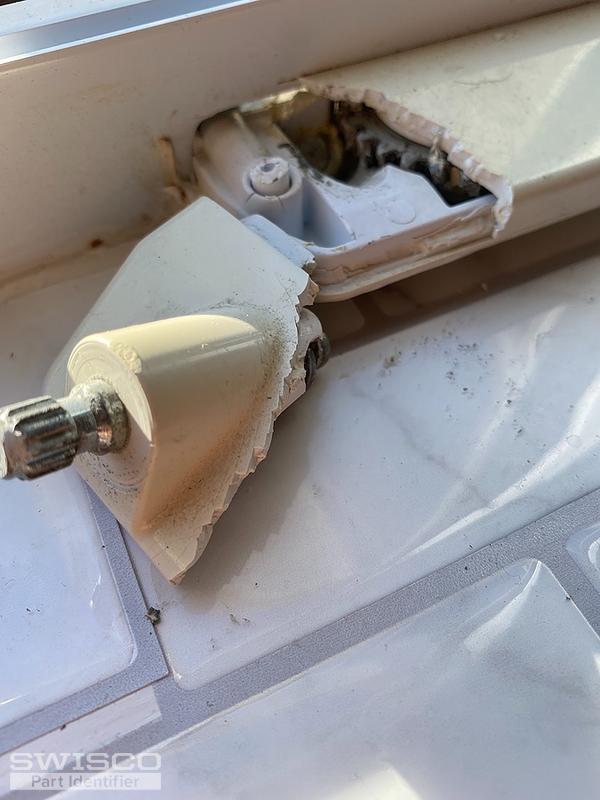

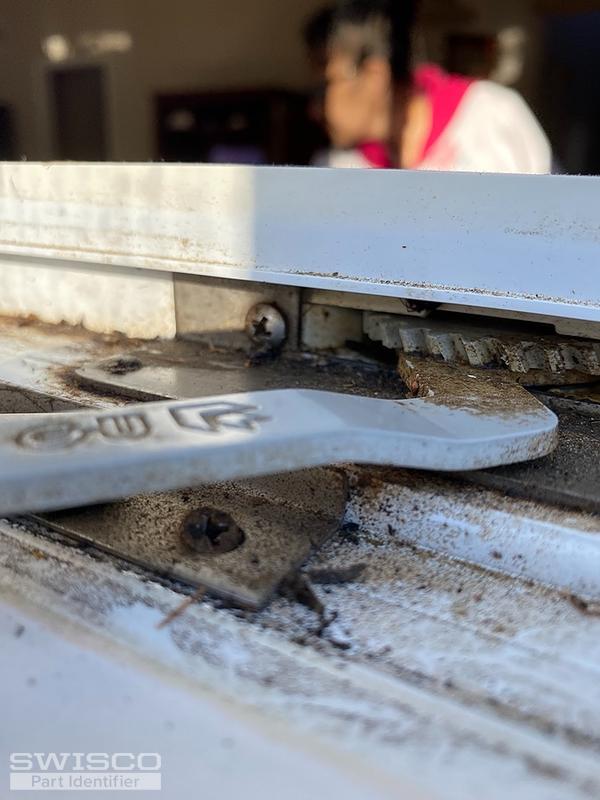

Sending you pictures of window open and close mechanism. I have 2 of those on the window
Attached are the pictures .

5 user uploaded images

Tom from SWISCO

Feb 1, 2021 8:57 am

Aha, I recognize this part now. This is the old GU operator, which hasn't been made in a few years now. The good news is that we do have a working substitute. Please watch the video below, which will take you through it step by step.

Home Owner from New Jersey

Feb 1, 2021 9:38 am

Hi Tom

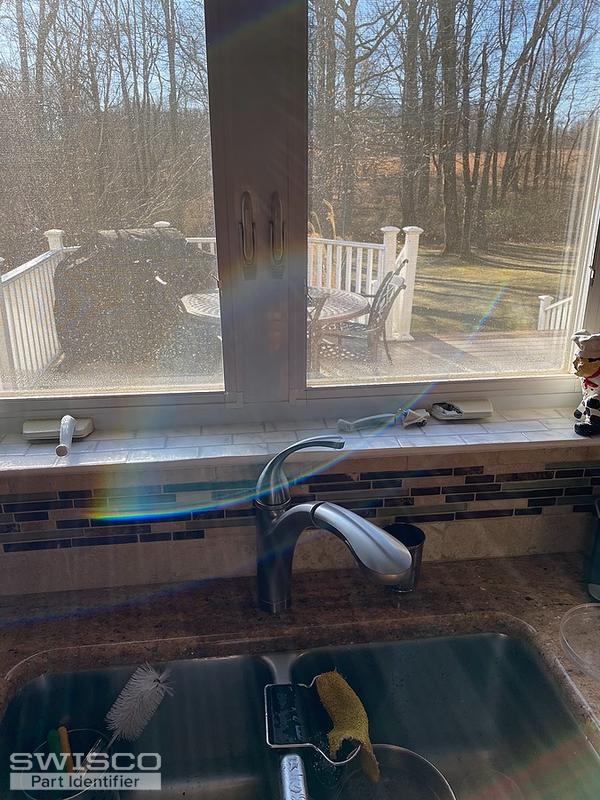

Thanks for getting back . In need this part for both right and left window by kitchen sink. Are they same for both windows . How do I order all the whole assembly?
Thanks

1 user uploaded image

Tom from SWISCO

Feb 1, 2021 10:02 am

The parts used in the video suggested are the 39-316 operator, 39-514 bracket, 19-114L handle, and 39-105 detach clip. We also sell the opposite sides for these parts with our 39-315 operator and 39-513 bracket. The detach clip and handle would remain the same.

All orders can be placed directly on our site at your convenience.

Home Owner from New Jersey

Feb 1, 2021 11:50 am

Thanks. I will order it on your site. Thanks for all the help.

Tom from SWISCO

Feb 1, 2021 12:09 pm

Not a problem, we appreciate your business! If you had any other questions, please let me know.
