Siminton window balance assembly & Tilt latch

Handy Person from Aiken, SC
The springs are labeled #5.5 35" P
I need eight(8) assemblies. I am assuming they work on both the left and right sides. Depending on the cost, I may want to buy a couple of extras.

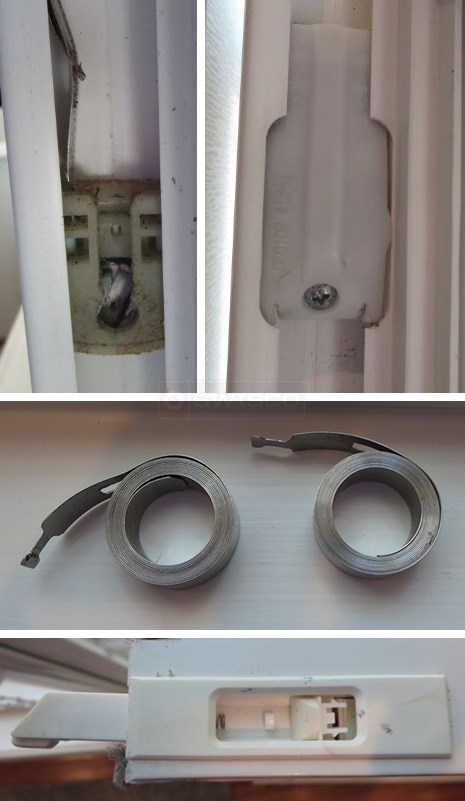

Can I re-use the Pivot Shoes? They seem OK. It appears that the plastic on the spring assemblies simply broke and allowed the springs to collapse onto the Pivot Shoe.

I need one (1) tilt latch.

Windows were manufactured 7/7/2005.
Coil assembly
4 Replies
Paul
Paul from SWISCO
SWISCO
Expert
For your Simonton window, I recommend our 26-243 and 26-244 top tilt latches, 15-199 pivot shoe, and S160-5 coil spring.
Quick Learner
Would I also use the 1/2" Coil Double Support
Product Code: 15-150D?
Tom
Tom from SWISCO
SWISCO
Expert
Yes, if you cannot reuse your old cover then that should work well.
