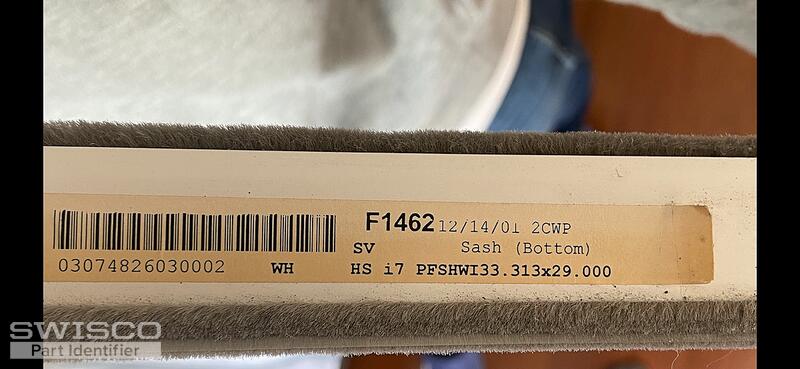

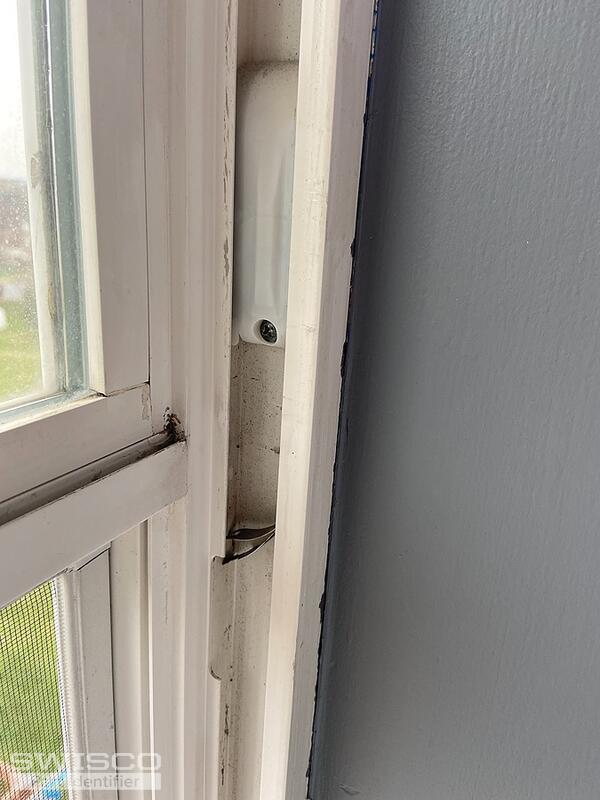

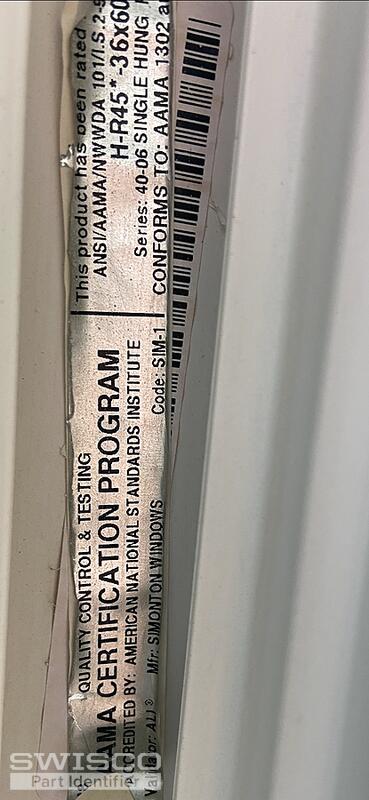

Simonton 20 year old single hung

A quick learner from Wind gap pa says:

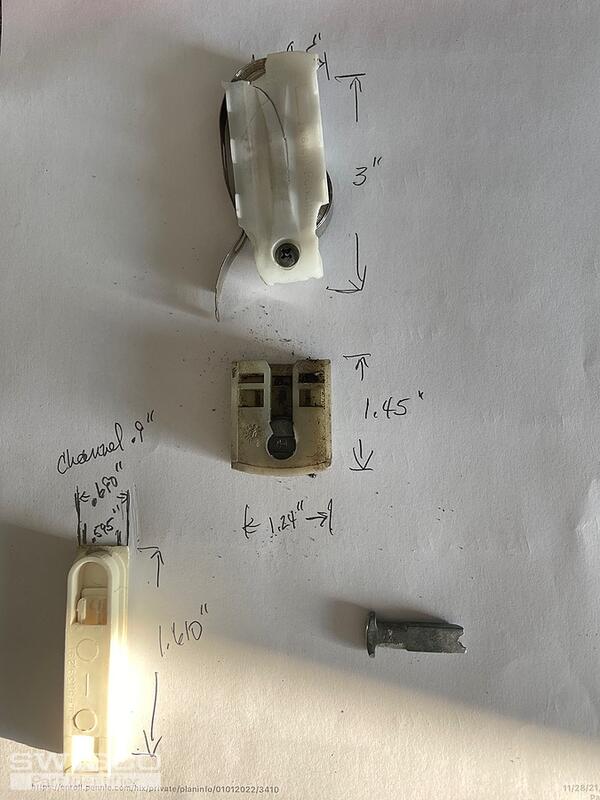

Need both tilt latch
Both balance assemblies and shoes
Coils have 5.0 35 ?

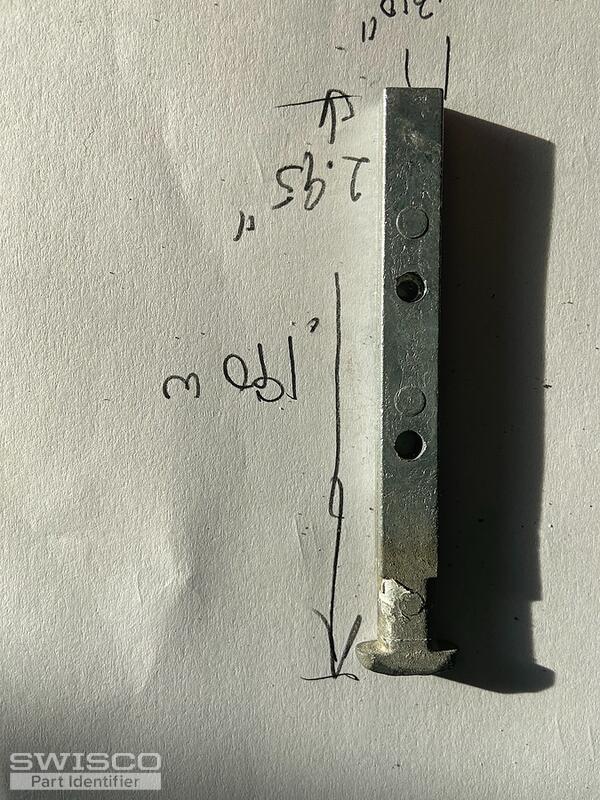

One pivot arm
Thumbnail of the uploaded file named 2C9115CF-AD24-4B1D-B856-6A48B323E2F9.png
Thumbnail of the uploaded file named DF65C075-FDC0-40BE-ABD8-21B5AC9AAD65.jpeg
Thumbnail of the uploaded file named 84412285-A83C-495B-8A2A-9BEFBBEAEBD6.jpeg
Thumbnail of the uploaded file named 9EDD20A5-15C3-42D7-AC43-79F992CDF648.png
Thumbnail of the uploaded file named 2FFB1C7B-AD94-4D15-8364-01B7CA5D9160.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

Take a look at our 26-243 and 26-244 tilt latches along with the 26-378 pivot bar and 15-199 pivot shoe, which uses the Series 160 and Series 165 coil springs. Review the dimensions for each and compare them to yours to see if these match up to your original hardware.
