Simonton Double Hung Window. Window Pains are around 47" x 34-3/4"

Question

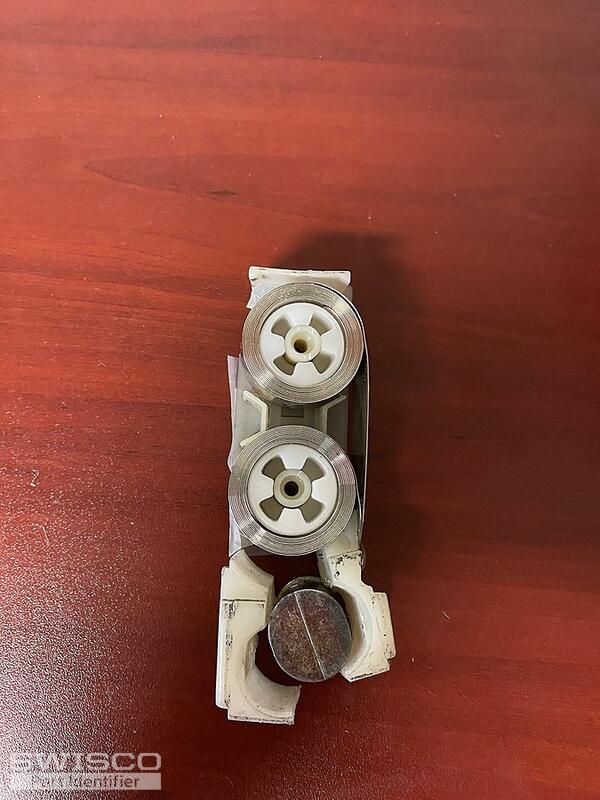

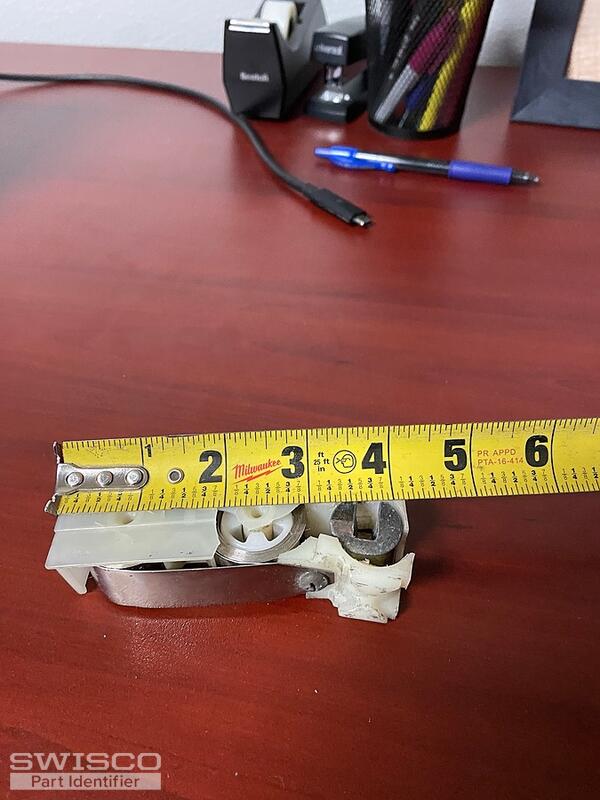

I am would like to replace all 4 coil balances. I have included pictures but it they are double coil balances, the cover is aproximately 1-1/4" wide, 13/16" deep and 3-1/4" long. The coils are 3/4" thick and a roughly 1-3/16" diameter. If you have an questions please feel free to reach out to me.

Jasmine · Accepted Answer

Thanks for posting! Your Simonton shoe is no longer made but we have a replacement solution that will work for your repairs. You'll need the 15-259 Coil Balance Shoe, the Series 159 Coil Balance, the 15-256 Coil Double Support, and the 26-083 Pivot Bar to complete the repairs.

Take a look at the video tutorial below for a detailed explanation on this conversion. Be sure to take a look at the video tutorial tagged below the thread for instructions on how to select the correct coil spring for your assembly.
