Simonton replacement coils, shoes and pivot bars

Question

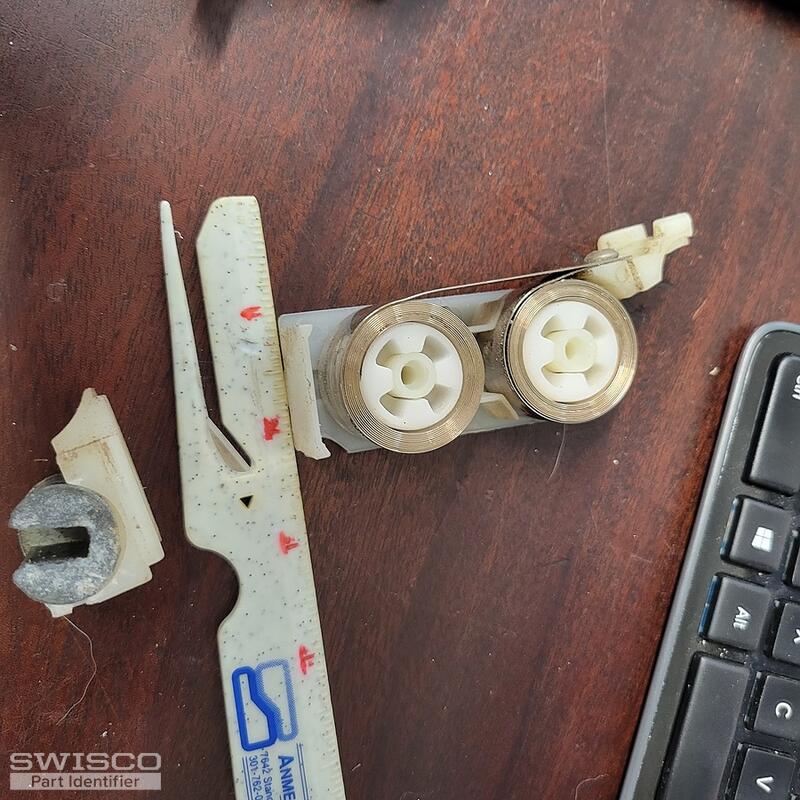

I am look for replacement coils, shoes and pivot bars for Simonton hurricane rated windows. They are double coils. The coil is stamped 408. The coils are 3/4" wide. I have pictures. Can you assist me?

thanks,

Gary

Jasmine · Accepted Answer

Hi Gary,

Thanks for writing in! The Simonton coil shoe you have here has been discontinued and is no longer available but we do have a replacement that should work well for your repairs.

You'll need the 15-259 Coil Balance Pivot Shoe which is compatible with the Series 159 Coil Balance. If both coils are marked with a 408, you can likely use the S159-08. Although, since these can support 8.5lbs it might be a good idea to double check the weight of the sash.

You'll also need the 26-083 Pivot Bar and the 15-256 Coil Double Support.
