Simonton window balance/shoe

A home owner from Ohio says:
August 12, 2020

The Simonton windows are 15 years old.

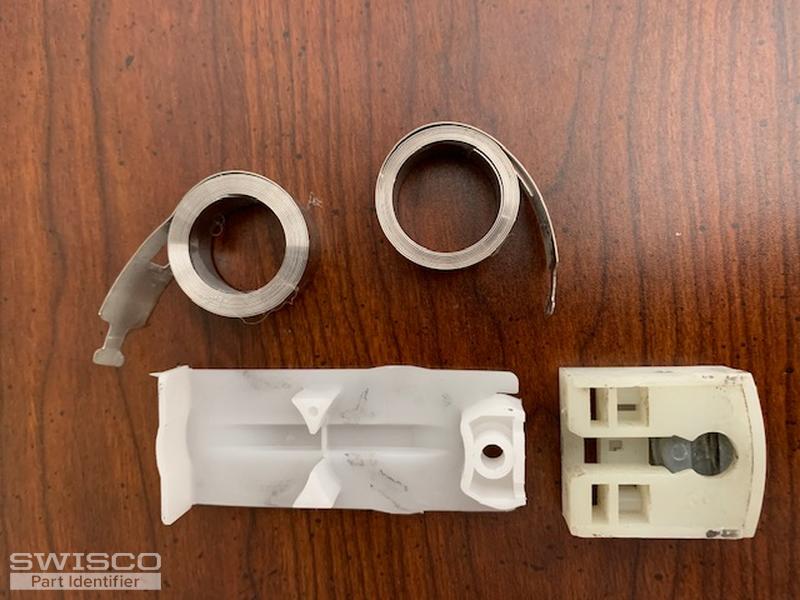

The right side spring balance/shoe (photo attached)

Information off the window3

  • Mfg 06/16/2002 - 08/16/2004
  • D0468 2CWP
  • SS Bottom 4S
  • FBSHN 133
  • 31.313 X 34.938
  • 038123501 0008 WH A7
  • PL@8

Thumbnail of the uploaded file named Simonton Window Parts.jpg
Profile picture of Tom
Tom from SWISCO responded:
August 17, 2020

Your pivot shoe looks like a match for our 15-199 . I think you also have the 1/2" thick Series 160 coil spring, but you should check that thickness just to be 100% sure. Finally, see our 15-150D coil spring cover.

1/2" Coil Double Support
1/2" Coil Double Support
15-150D
$1.57
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
