Hello, I am looking for parts for single hung Simonton vinyl windows approx. 24 yrs old. Needed are pivot shoes and bars, tilt latches, balances and springs.

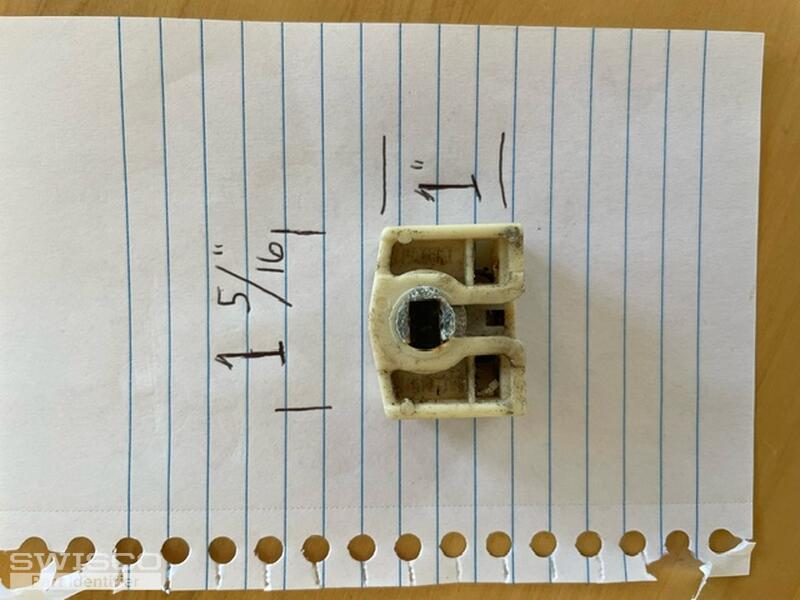

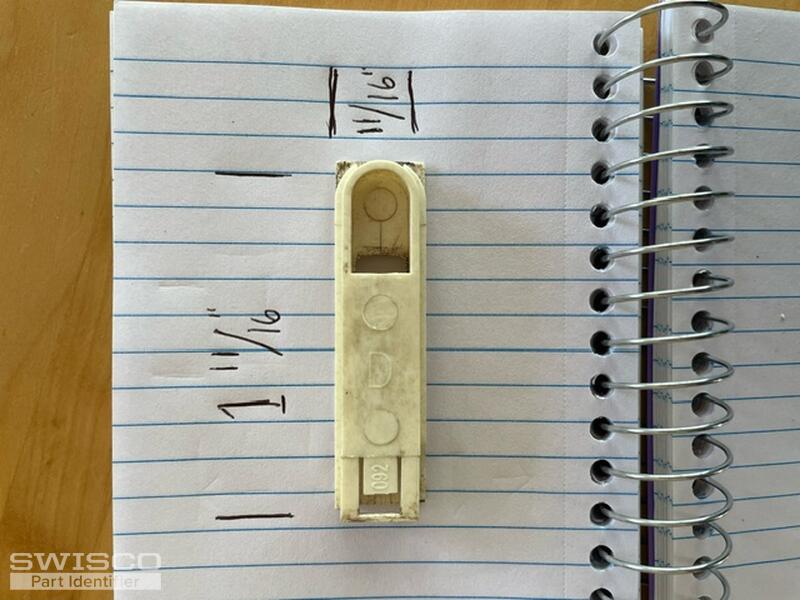

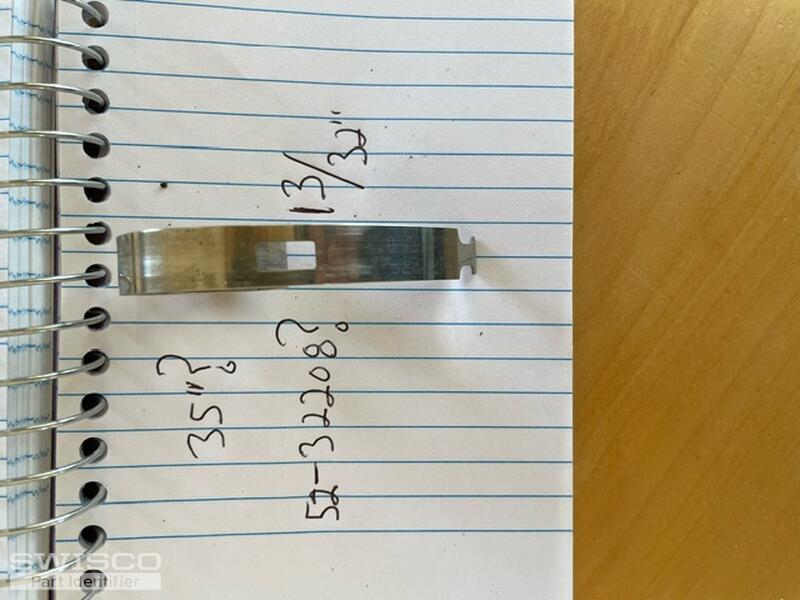

Forgot to add to photos- pivot shoes are 1/2" thick and tilt latches are 7/16" thick overall. Springs are 13/32" thick. Visible #s on springs are 35"(?) 52-32208(?)
Thank You. Ed
Hi Ed,
Thanks for reaching out! Your pivot shoe reminds me of the 1/2" thick 15-111 Pivot Shoe; the heavy duty version of this shoe is our 15-191. To confirm that this is the right fit, carefully review and compare the dimensions below.

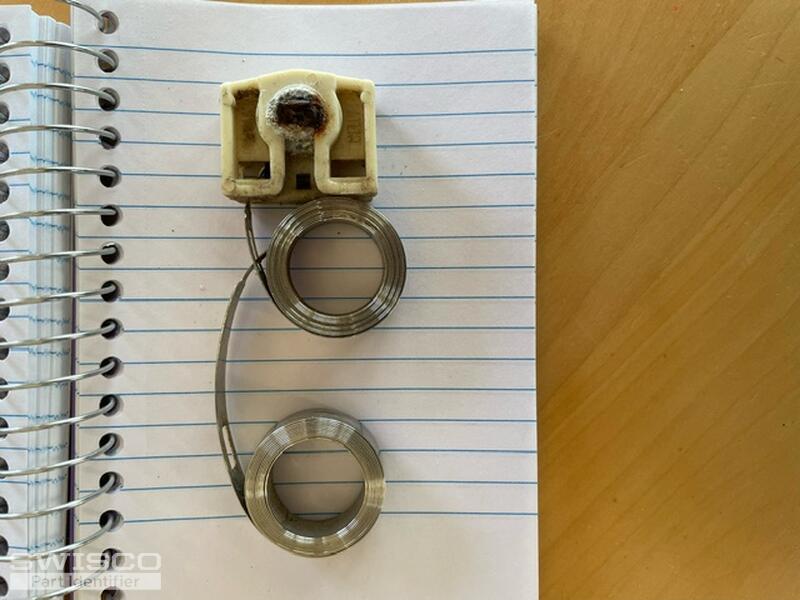

This shoe is compatible with the Series 160 Coil Balance. Given the stamp you've confirmed, I believe you'll need the S160-5 but you may wan to be sure your sash weighs 22lbs. You may also need the 15-150D Coil Double Support.

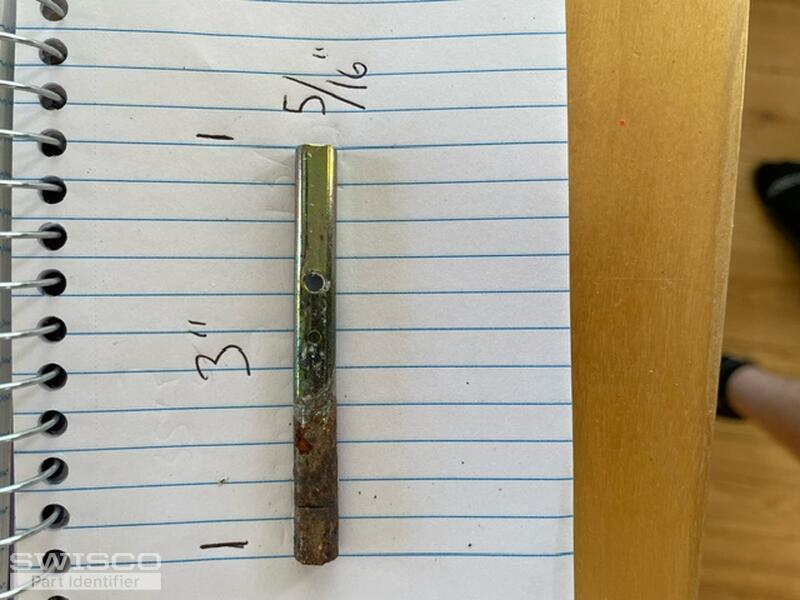

The pivot bar you have pictured here looks a lot like the 26-040 Pivot Bar. Again, carefully compare the dimensions to confirm this is the right replacement.
I believe you can replace your tilt latches with the 26-243 and 26-244. Although, I would be sure to double check the dimensions, especially the length. As you'll notice from the diagram, the length of this latch is 2-5/8".
