Single hung vinyl window within 10 years of age

Contractor from Ohio

Jun 6, 2023 11:47 am

Need to new spring kits

Found sticker for order on sash

Have multiple windows with bad balances and some of the internal holders in the bottom of the sash that go into the balance.

3 user uploaded images

7 Replies

Casey from SWISCO

Jun 7, 2023 2:56 pm

Hello,

We'd be happy to help but we would need to see photos of your coil balance assembly fully removed from the window to compare to our inventory.

It sounds like you may also be looking for pivot bars, which we would also need to see uninstalled to compare to our inventory. We'll relate a few videos on this page to help you through the process. Thank you!

Contractor from Ohio

Jun 7, 2023 3:10 pm

I will get those photos in shortly of it removed. Yeah I should be good on the pivot shoes but Ill need a few pivot bars.
Thanks!

Contractor from Ohio

Jun 7, 2023 5:34 pm

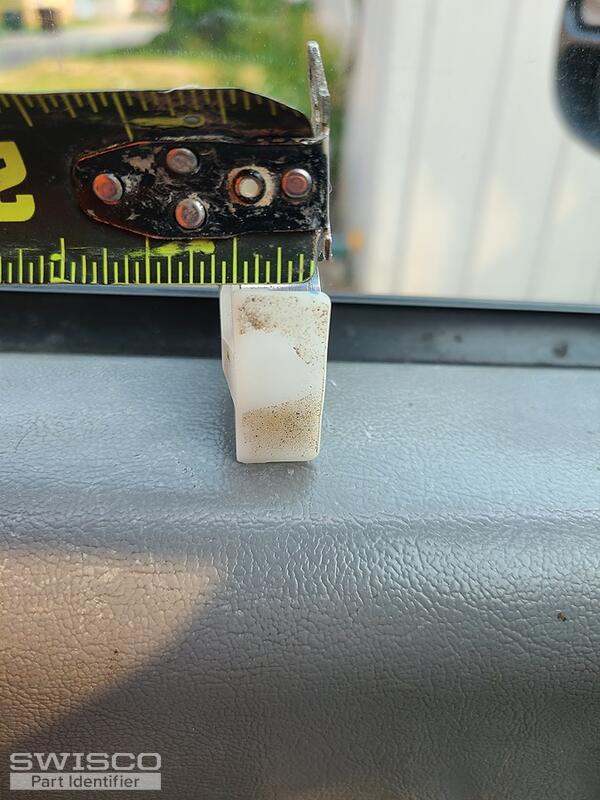

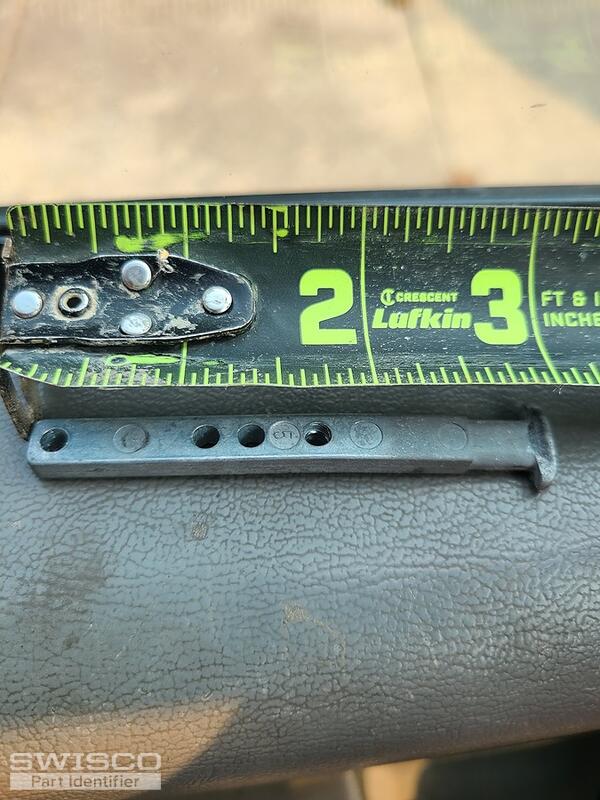

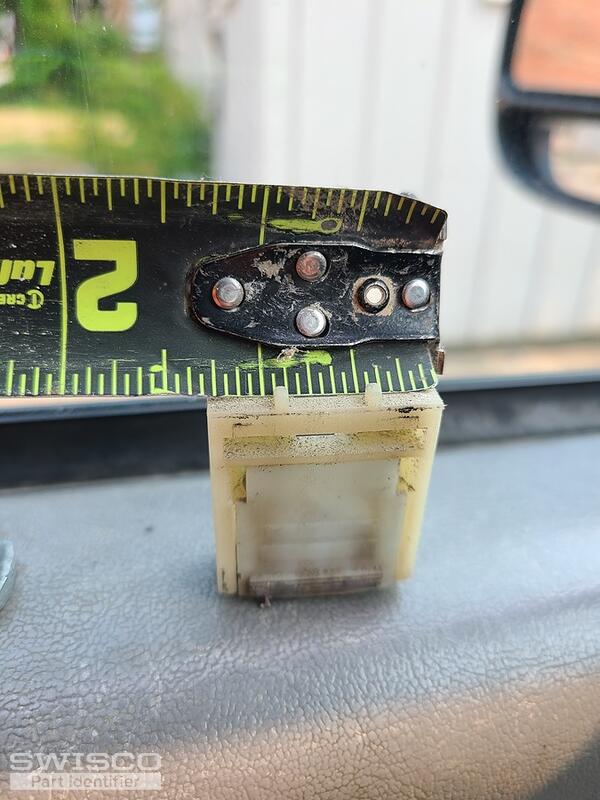

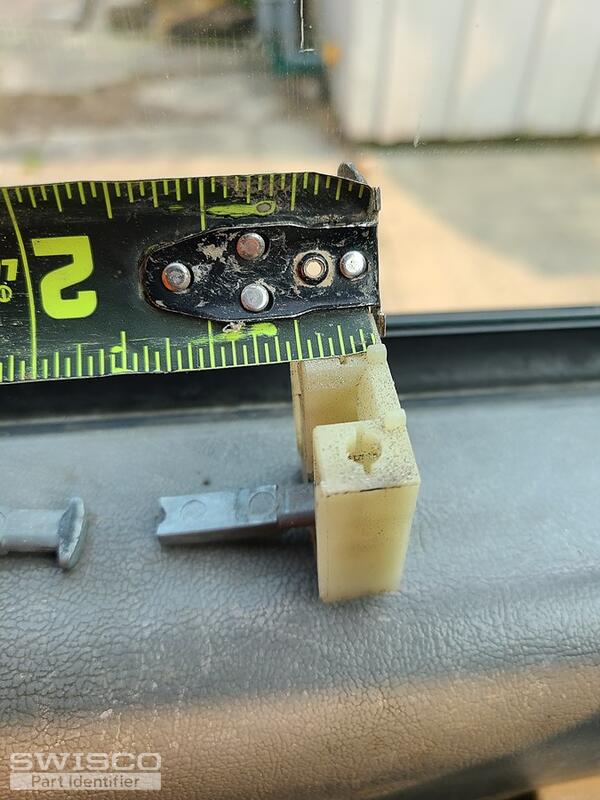

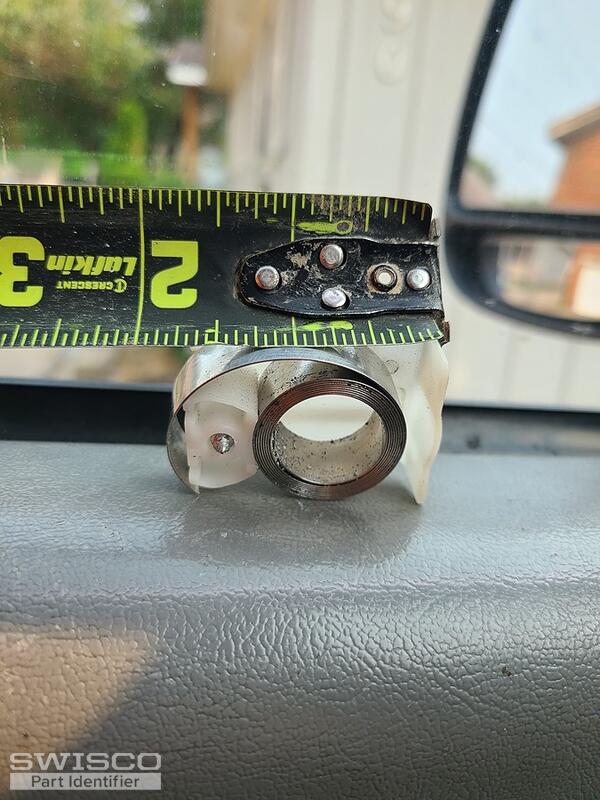

Here are more photos appears to be #5 pivot bar and the coil appears to be a #9 x 35' P

1/2" on depth for pieces
1 1/4 width on pieces

5 user uploaded images

Casey from SWISCO

Jun 8, 2023 8:15 am

Thanks for getting back to us. I would recommend starting by comparing the specifications of the 15-199 pivot shoe, which is used with either the Series 160 or Series 165 coil springs.

As for the pivot bar, take a look at the 26-378 and compare the installation hole backset to confirm if one of them matches up to yours. Thank you!

Alternate image for 26-378

Contractor from Ohio

Jun 8, 2023 9:05 am

Perfect thank you!
Everything matches up.

What about the coil mount? Is that a fairly standard piece?

Casey from SWISCO

Jun 8, 2023 9:33 am

Great! The coil housing parts can be found under the related items section of our product page once you determine if the width of your original coils matches the S160 or S165.
