Skylight Eyelet

Question

Hello,

I moved into my home during the winter and in Spring, discovered the previous owners took the skylight eyelet. I have no idea who the manufacturer is (I've looked all over the frame and glass). I measured the spline, I believe its called, and it is 5/16th. The pole they left behind has a hook at the end. Any help in figuring out what part I need to replace it would be GREATLY appreciated.

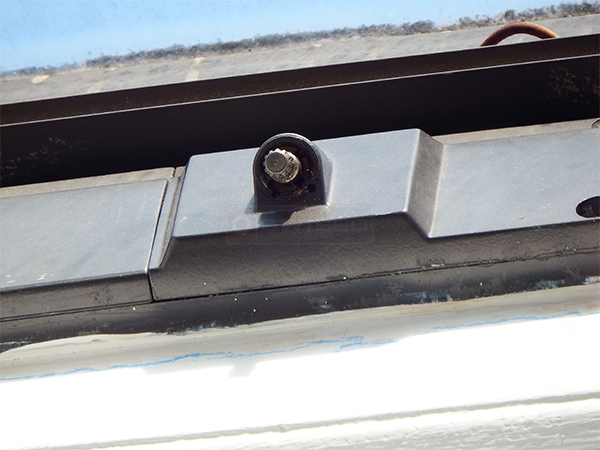

User submitted photos of a skylight operator.

Dave Sr. · Accepted Answer

I'm not 100% certain, but I believe you could have an operator made by Truth hardware. Check to see if there are any names stamped on the hardware. If it is made by Truth, you would have an 11/32" spline size, which is just a little larger in diameter. Take a look at the 39-247 and 39-336 pole ring adapters. These all work with an 11/32" spline. Since your operator spline stem is kind of on an upward angle, I personally think the 39-336 might be a better choice. See what you think.
