Split Arm Operator

A home owner from Saint Charles, MI says:

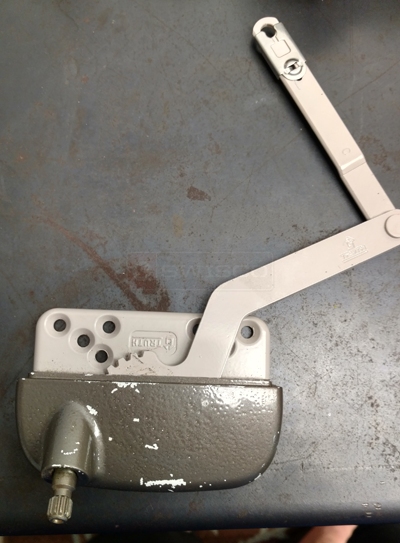

Looking for a split arm operators that are the same size as your 39-317 and 39-318 however I need it in what I believe is called the "Bronze" color. Do you have this color available?
Split arm operator
Profile picture of Tom
Tom from SWISCO responded:
Unfortunately, these operators are not made in bronze. That said, I'm not sure our 39-317 and 39-318 are what you want. Your link arm appears to be offset, which is an important distinction. You may want to consider our 39-171 and 39-172 just in case. I'm afraid these are only available in white, as well.
A quick learner from southfield, michigan says:

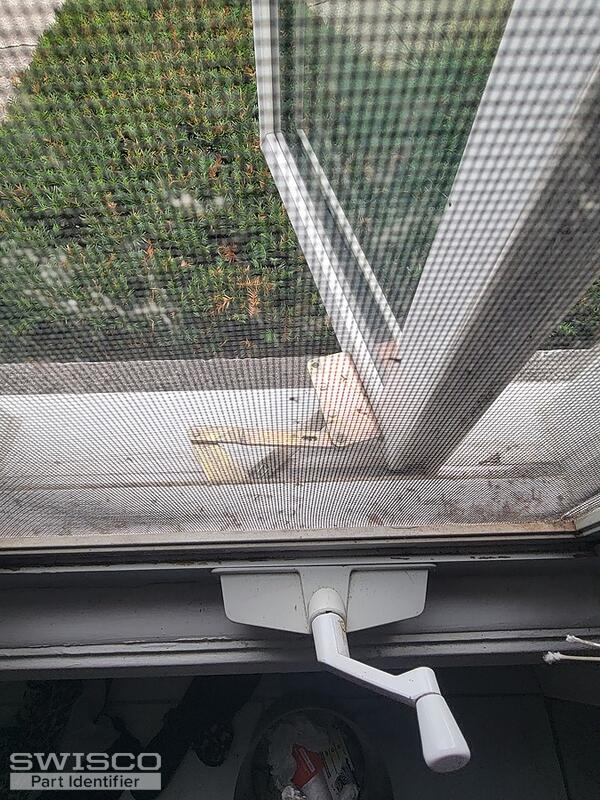

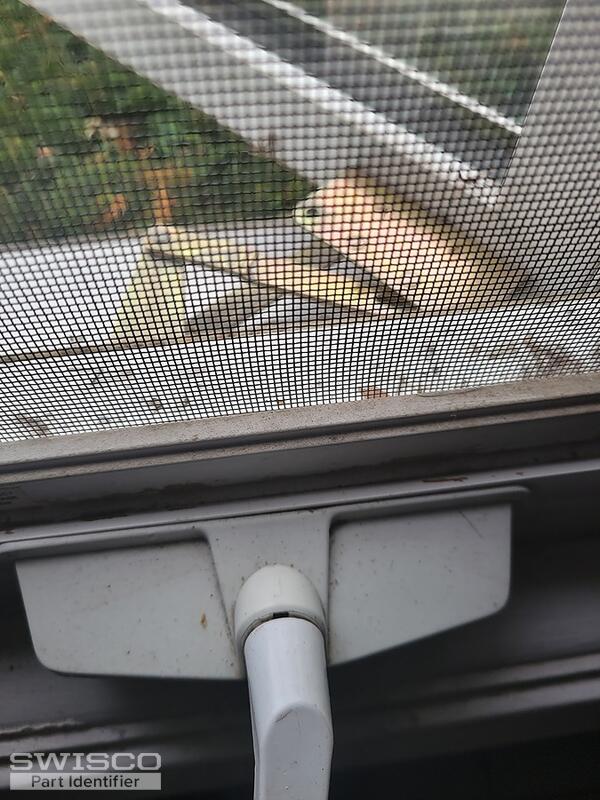

looking for crank unit for left window. (Anderson window i think). below is picture of right side. I have handle.
Thumbnail of the uploaded file named 20230907_084414.jpg
Thumbnail of the uploaded file named 20230907_084338.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello! This operator appears to be a match for our 39-035. I think this may be what you need, but review the arm size and general design of our product to verify. You may want to remove your original just to ensure that you know exactly what you have in there now.

Dimensions for 39-035
Dimensions for 39-035

Connecting a casement window operator to stud bracket
Connecting a casement window operator to stud bracket
