Spring replacement

A handy person from Southport, NC says:
December 14, 2021

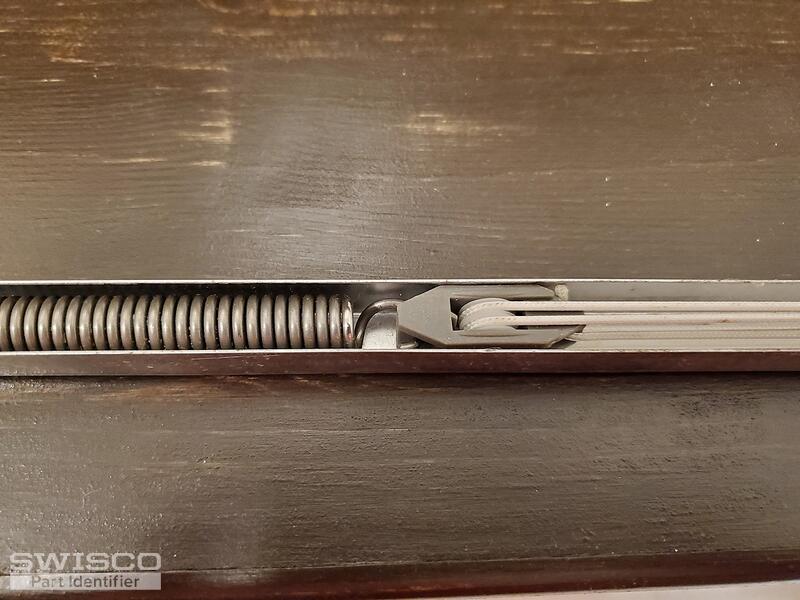

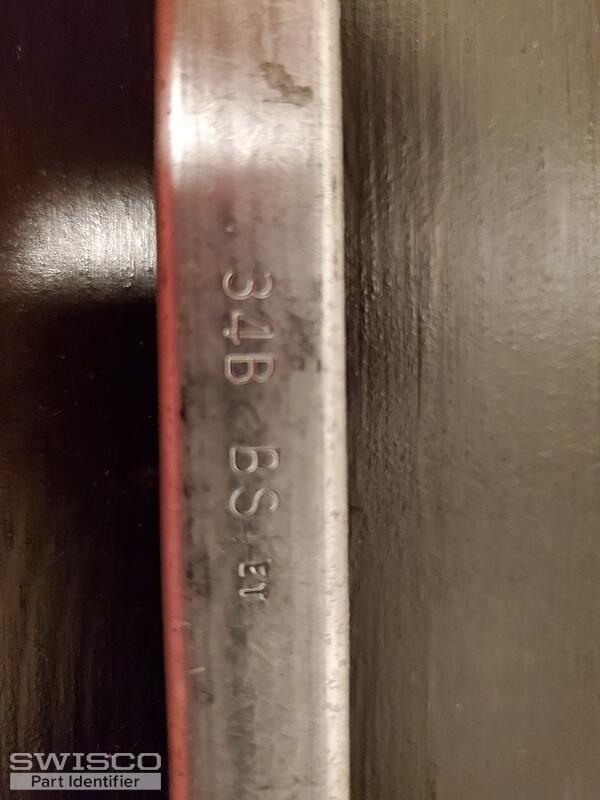

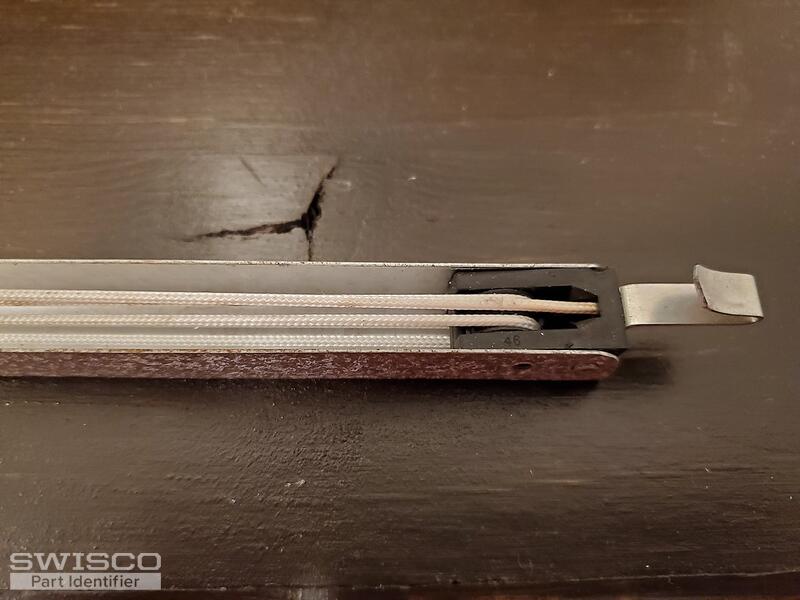

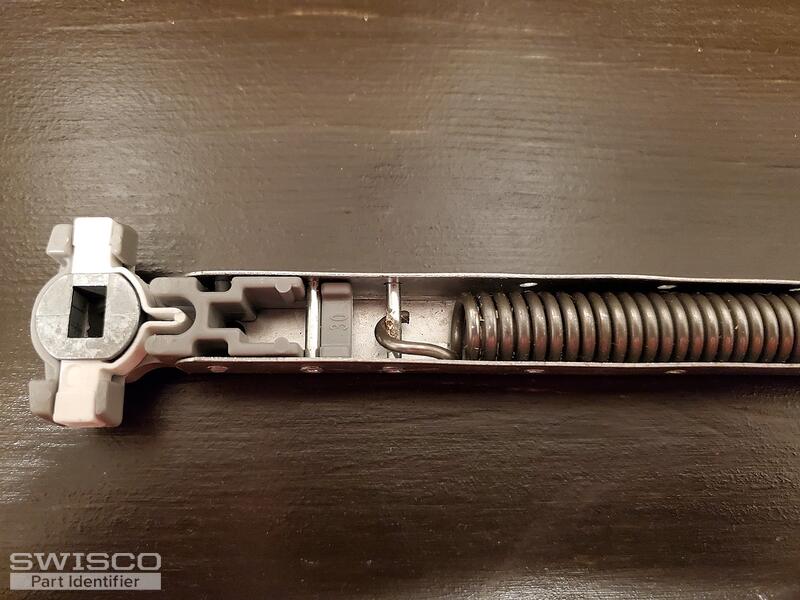

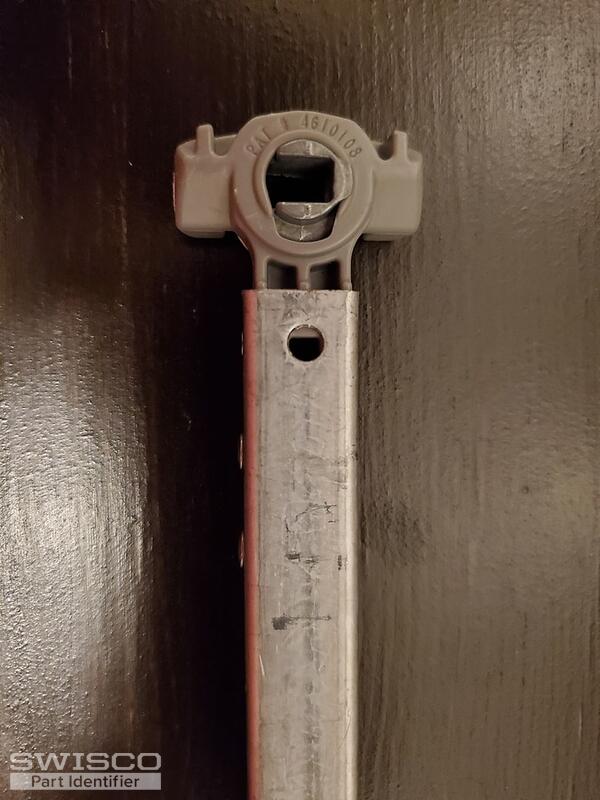

I am looking for a spring for windows probably hung in 2003. There is a hook on one end and a circular section with "ears" on the other. First 3 pics show relevant parts inside metal casing. Last 2 pics show backside with numbers included (Pat 4610108 on plastic circle and 34B BSI et stamped on metal). The whole thing (including plastic head and metal hook) measures 35.5 inches. The spring itself measures 21.5 inches.
Thumbnail of the uploaded file named 20211214_200537.jpg
Thumbnail of the uploaded file named 20211214_200545.jpg
Thumbnail of the uploaded file named 20211214_200424.jpg
Thumbnail of the uploaded file named 20211214_200429.jpg
Thumbnail of the uploaded file named 20211214_200439.jpg
Profile picture of Tom
Tom from SWISCO responded:
December 17, 2021

We can supply this balance, but it has to be a custom order due to its configuration. Before we go any further, I just needed you to confirm a few details.

First, what is the length of the metal channel? Based on the stamp it should be 34" but I want to be 100% sure.

Next, how many of these did you need?

Finally, I believe the configuration will match our Series 795 but with the default bottom shoe swapped out for the 15-195B and the top tab swapped out for our 15-198 hook. This setup is what makes it custom, since it's not a standard assembly.
Balance Clip Attachment
Balance Clip Attachment
15-198
$0.70
1-1/4" T-Lock Balance Shoe, Open Cam
1-1/4" T-Lock Balance Shoe, Open Cam
15-195B
$1.97
