Stud Bracket

Question

Hello,

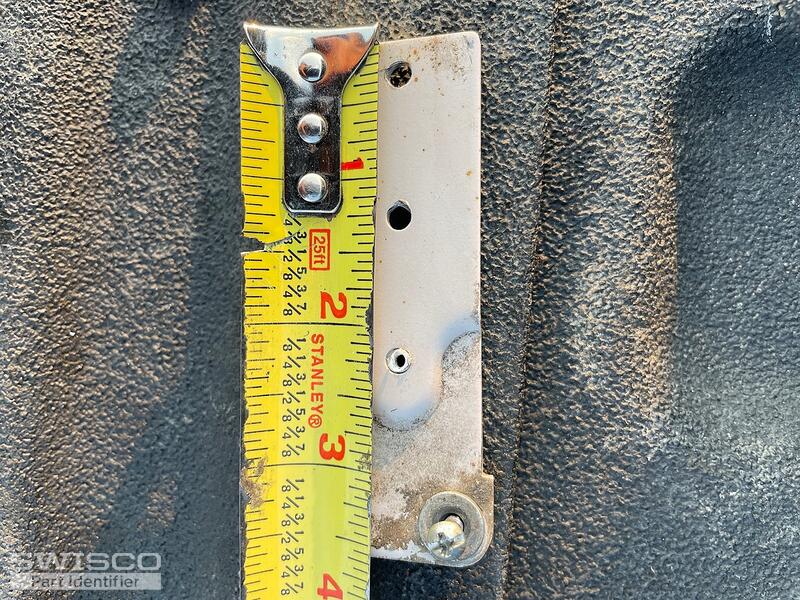

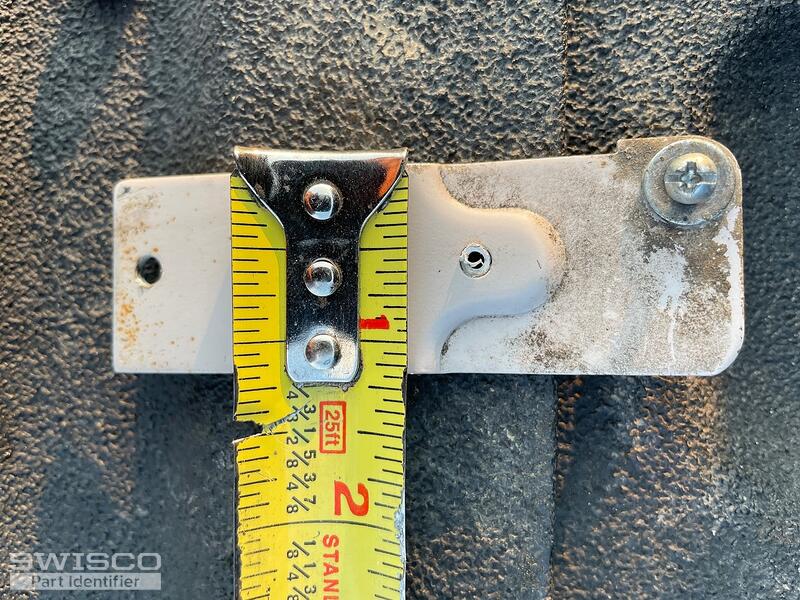

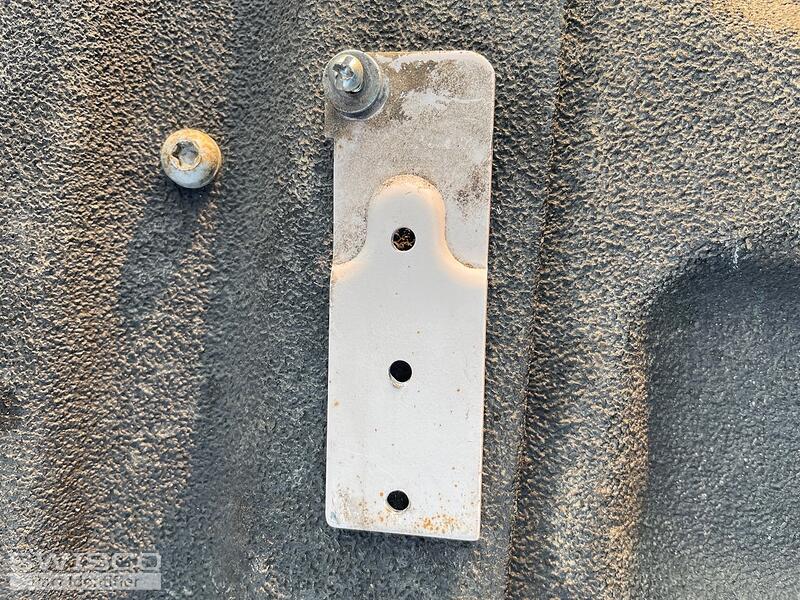

I’m trying to find a left and right replacement stud bracket for some windows. Attached are some photos. The operator is a truth Dyad 39-315 if that helps. If needed, I could go remove the part for better pictures and measurements.

Emily · Accepted Answer

Hi there!

Thank you for reaching out to us. This would be the 39-316 since the spline sits to the right of the operator. We don't sell the bracket shown here, but the 39-513 and 39-514 would be our picks. However, you will likely need to drill new holes. Take a look and see what you think.

Alternate image for 39-316

Dimensions for 39-513

Dimensions for 39-514
