T-Lock Balance Shoes

Quick Learner from USA

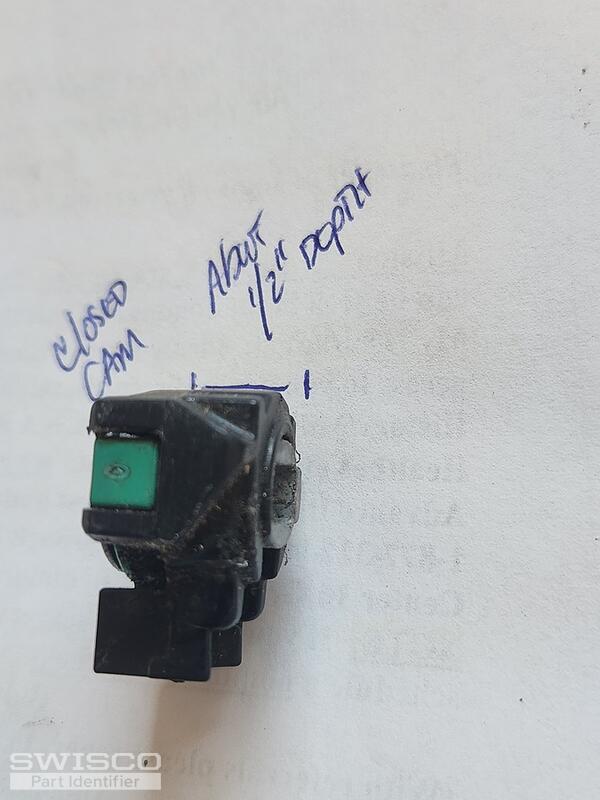

Greetings. I just received the 50 T-lock balance shoes (part 15-194).  They're the right size (part)  but unfortunately they will not fit in the channel because of a deep groove at the base. See photos. I also noticed a number stamped near the top --- 28C.

What are my options now?
5 user uploaded images
8 Replies
Tom
Tom from SWISCO
SWISCO
Expert

We unfortunately don't sell a version of the 15-194 that will fit that deep groove. You would need to purchase a whole new balance with the shoe separately.

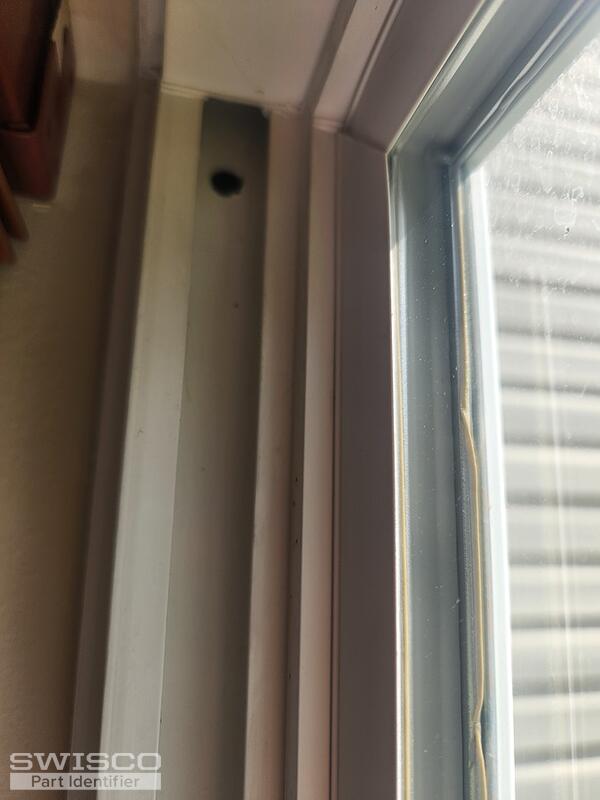

Before we go any further, I'd like a photo of the hole in your window frame where the balance hook installs. This balance may need to be a custom order due to that hook, but seeing the hole in question will allow me to verify.

Home Owner from USA

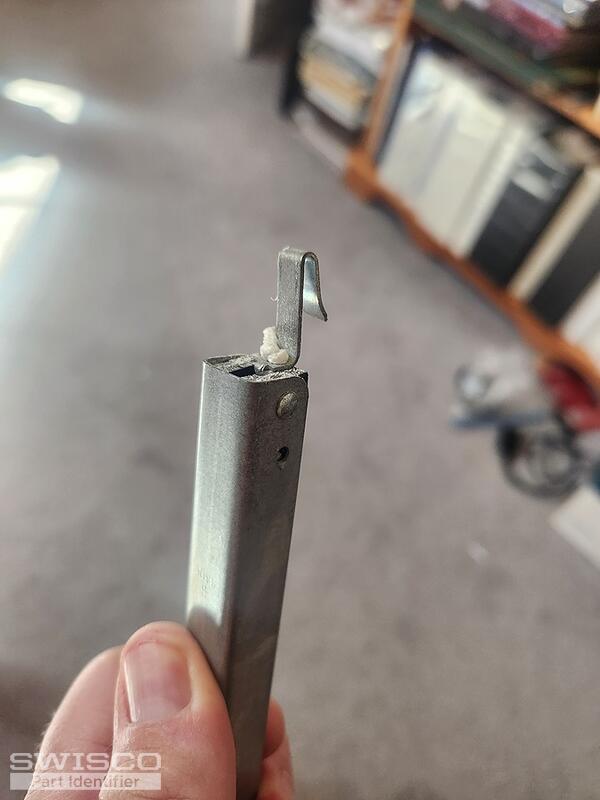

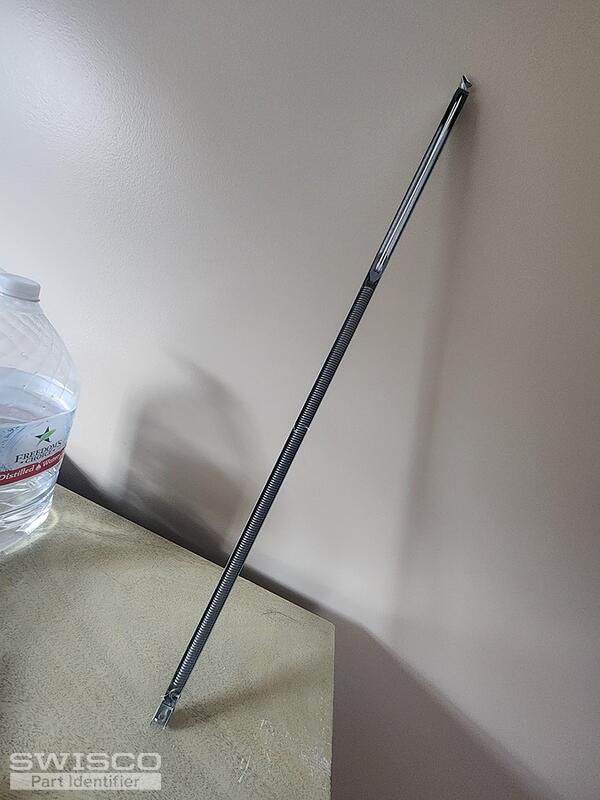

Hi Tom from Swisco - I've uploaded a few photos.  The weight end is a "hook" and the window frame hole is a "hole."  (just in case the photos dont pop thru.  I have several weight balance systems out of the window channels.  Hope you have a solution... Thank you. - Bruce
2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thank you, this is exactly what I asked for. The bad news is that due to the shape of that hole, these balances will need to be custom made. There's no way around it.

To summarize what we'll be doing, we'd use our Series 795 channel as a base. Then, we swap the top screw clip out for the 15-198 hook. That's more or less the extent of it.

You would also need to buy the 15-194 shoe separately and attach it to the balance once you receive them. That is unfortunately not an alteration we can make in our shop at this time for logistical reasons, but since you already purchased them, you can just use the ones you already bought.

If that sounds good to you, please just tell me the following details for each balance:

  • Length of the metal channel
  • Stamp printed on channel
  • Quantity you wanted to buy

Once I have that data, I'll email you a purchase link and price quote that will let you add these balances to your cart.

Home Owner from USA
Hi Tom from Swisco - thank you for the quick turn.  Below is what I'm looking for: (length, stamp, qnty)
28" - 28C ---> 50 quantity
28" - 28B ---> 8 quantity
34" - 34C BS ---> 4 quantity
Yes, I am in posession of 50x 15-194 shoes; as long as the bar/peg and side "snap holes" in channel align with the hook and side "dimples" of the 15-194 shoes, this should be the fix.  Thanks again.
-Bruce
Tom
Tom from SWISCO
SWISCO
Expert

Thanks, this is a huge help! I'll go ahead and email you an order link and price quote for each size. Since you have the 15-194 shoes already, then you can just swap them out after you receive the new balances. The video below will show you how this can be done.

Home Owner from USA
Thank you Tom "from Swisco,"  Much appreciated.  I'll get the order posted after 10 SEP.  Sure beats replacing 32 windows at $3k a pop!

-Bruce
Tom
Tom from SWISCO
SWISCO
Expert

Happy to help! Thanks so much for the order and please don't hesitate to reach out if you had any follow up questions.
