Tilt latch

Contractor from Colorado

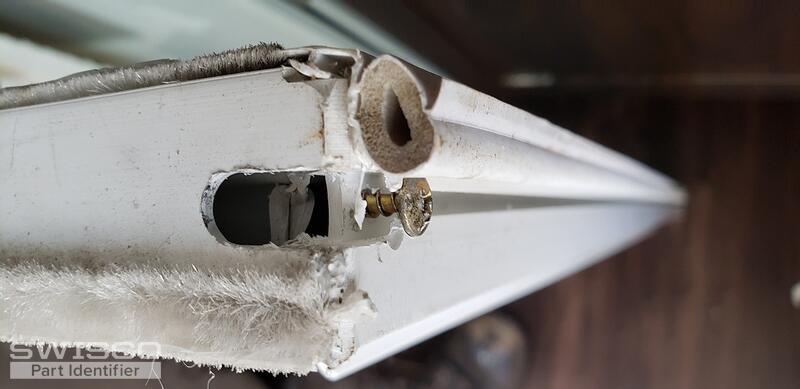

I am looking for this tilt latch. Is it 26-021, 14447 or something else?
1 user uploaded image
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for writing in! The part you are searching for appears to be a sash pivot bar. Since we do not have an exact replacement match for the pivot bars pictured here, I'll need to see a photo of the shoe it interacts with. That will help us to determine what the best replacement solution is and ensure it will be compatible with the existing hardware.

Please feel free to reach out with any other questions you might have.

Contractor from Colorado

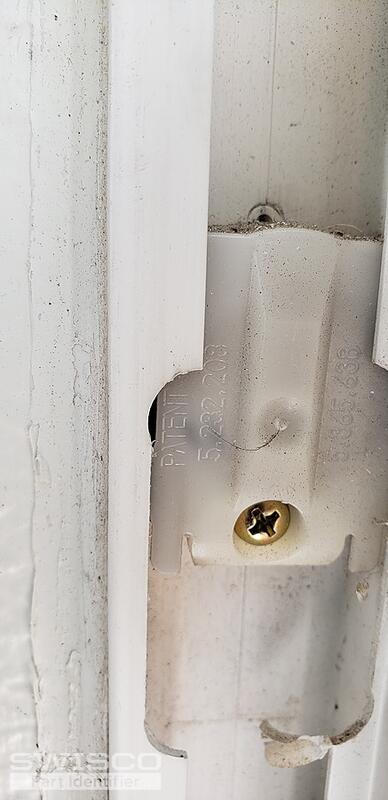

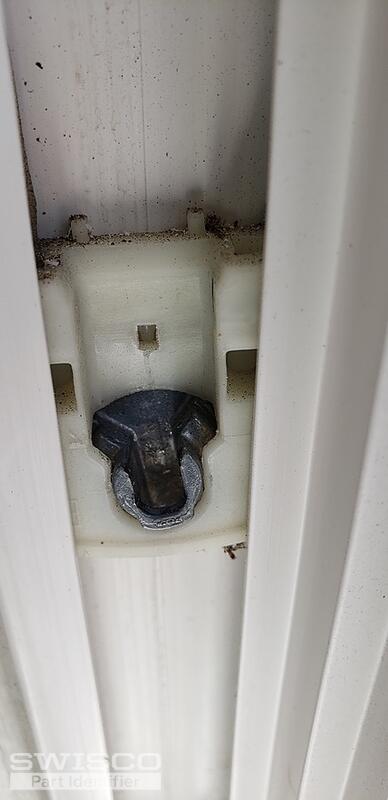

Photos of the shoe attached
5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photos. Your shoe appears to be an older version of the 15-199 Pivot Shoe. It is compatible with the 26-378 Pivot Bar. That said, I believe this may be a better option for the repair.

Alternate image for 26-378
Alternate image for 26-378
