Tilt window foot

Home Owner from South Carolina

This is the off bottom of the window that slides into the cam in the track. This piece broke off and the remainder is in the window. It looks similar to a 3" one you have posted but the "T" portion is not slanted like the one shown.

This is off a Discount Building Supply MASTDH 23 3/4 x 37 1/2 white window.

On the label there is the code:

LA: 7 G1: 13 G1:14

1 user uploaded image
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello!

Do you have an undamaged version that you could show us, perhaps from another window?

Home Owner from South Carolina
Yes. I am getting one taken off so I can send it.
Emily
Emily from SWISCO
SWISCO
Expert

Great! We'll be here to help.

Home Owner from South Carolina

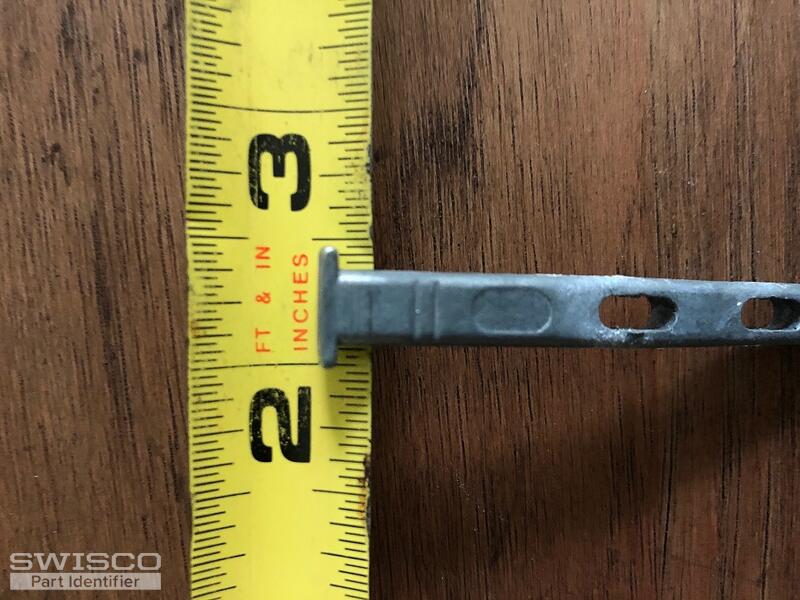

Here are three views of the foot.
Thank you for your help!
3 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

We don't have a pivot bar with your exact holes, but take a look at our 26-452 and 26-378 pivot bars. You'll have to carefully review each of our dimensions for the 26-452 and 26-378 and compare them to your current pivot bar to see if either of these match up for what you need.
