Tilt window parts

Home Owner from Auburndale FL

Jan 18, 2021 1:48 pm

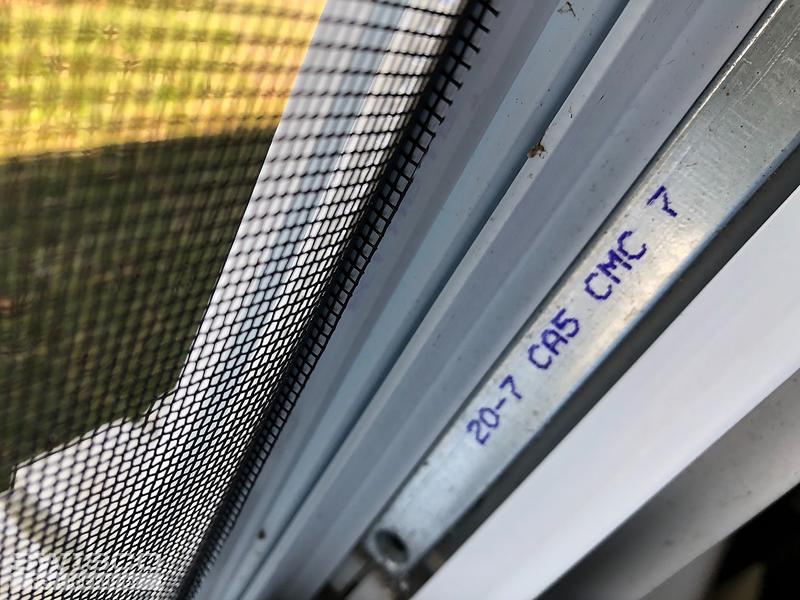

If you dont have the entire part, I can get by with the little blue part that recieves the pivot bar. And I need the pivot bar as well. I'll need 5 of each.

Fingers crossed, thanks

Sean

4 user uploaded images

5 Replies

Home Owner from Auburndale FL

Jan 18, 2021 1:50 pm

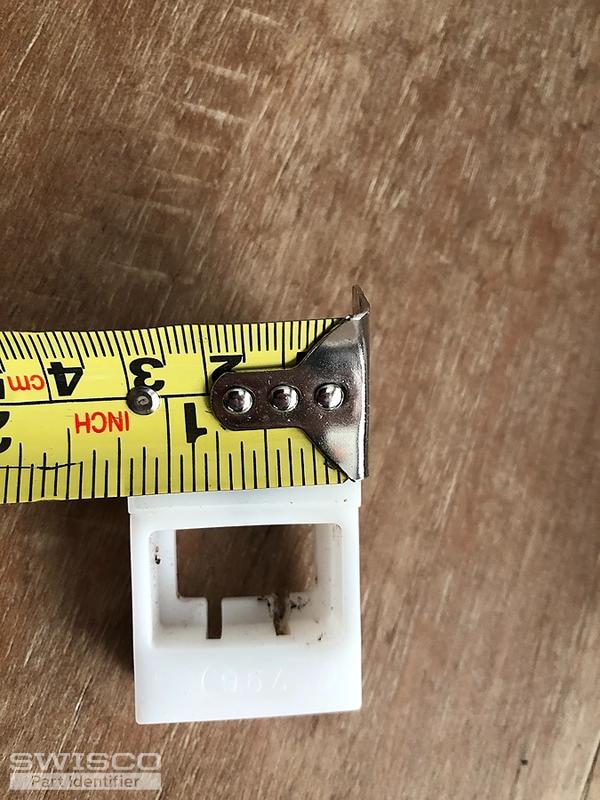

The # 796 is on the white plastic

Tom from SWISCO

Jan 20, 2021 2:28 pm

Hey, Sean. Sounds like you need a new pivot bar and pivot shoe. We should be able to help with both but I need more information.

Concerning the pivot shoe, can you tell me its exact width and thickness? That will ensure we find something that can fit in the track the same way.

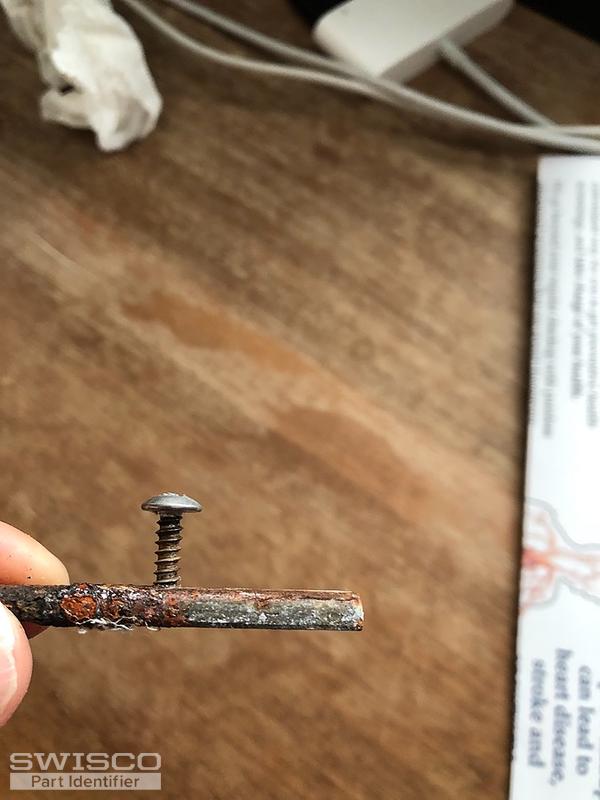

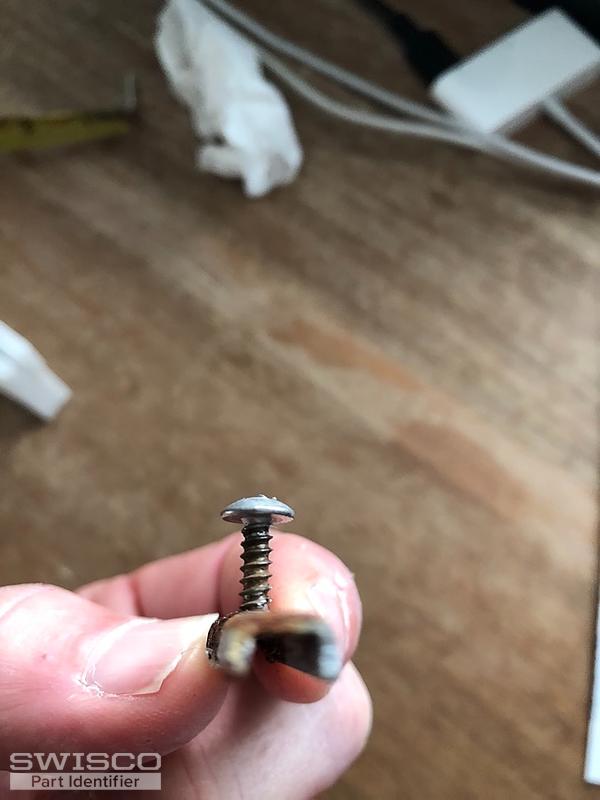

For the pivot bar, I just need to see an undamaged version out of the window.

Home Owner from Auburndale FL

Jan 21, 2021 8:25 am

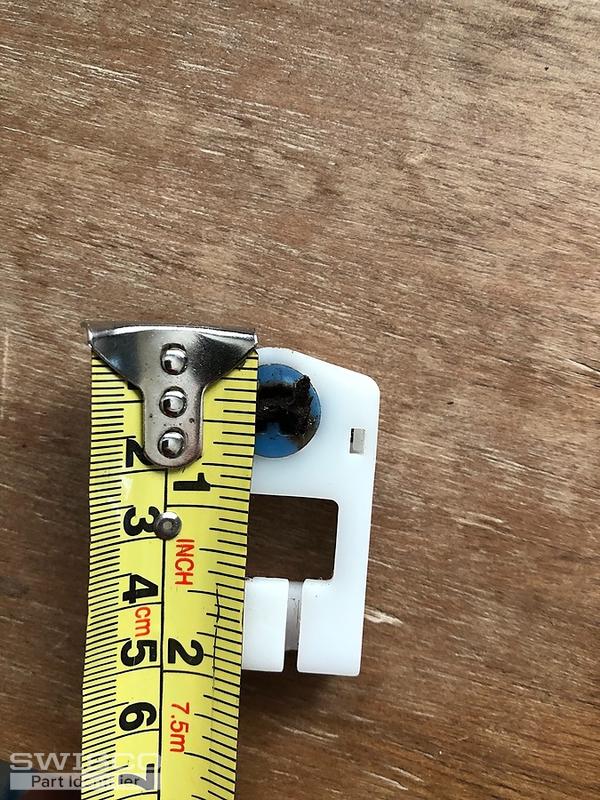

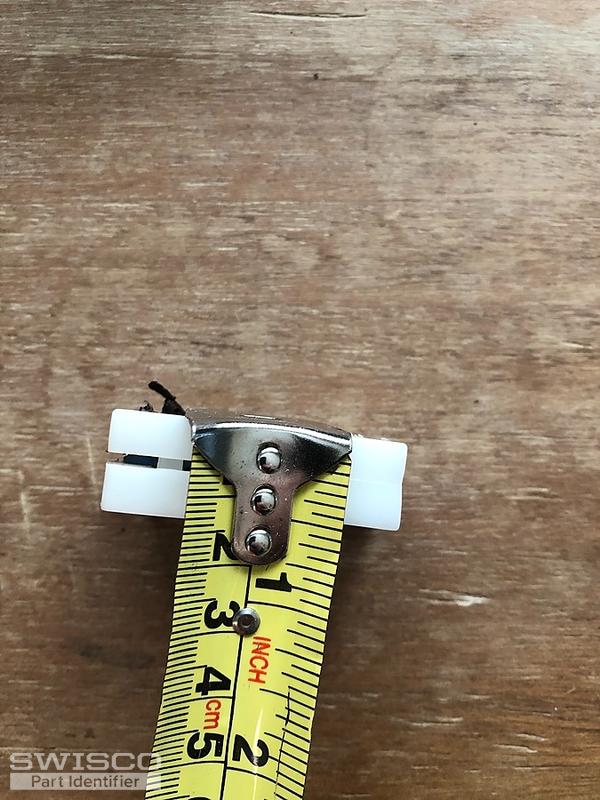

Hi Tom, here you go. Hope this helps.

5 user uploaded images

Tom from SWISCO

Jan 21, 2021 9:50 am

Thank you! It's a little tough to make out your exact dimensions from these photos. Based on your tape measure, your shoe is a little under 1/2" thick and a little under 1-1/4", but we don't have anything in that size. Could it be possible that your shoe is in fact 1/2" thick and 1-1/14" on the dot? If so, you could use our 15-046 as a replacement.

As for the pivot bar, I feel confident that our 26-040 is the one you want.
