Traco window
Quick Learner from St. Charles, Mo
Sep 13, 2025 2:25 pm

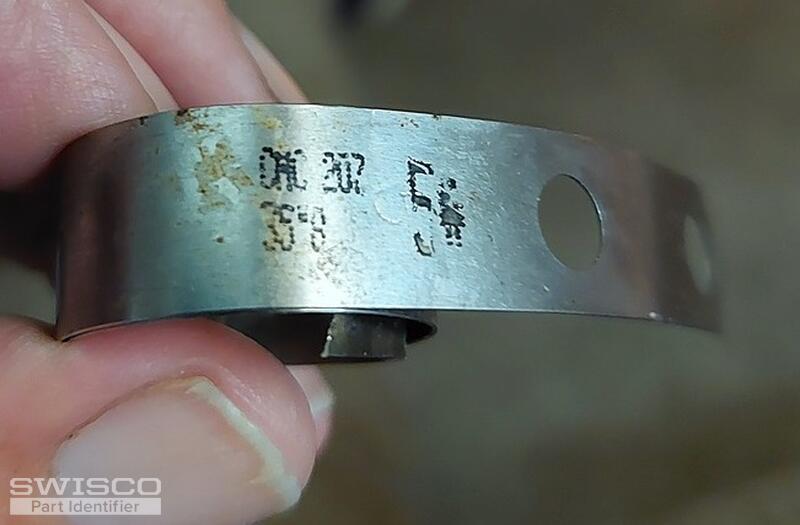

I do not see a part # but I found a couple #'s on the broken springs. One shows a 5 the other shows a 6. I am looking for the entire part including the housing and tilt mechanism. Thanx for this site!
5 user uploaded images
5 Replies
Quick Learner from St. Charles, Mo
Sep 13, 2025 7:07 pm

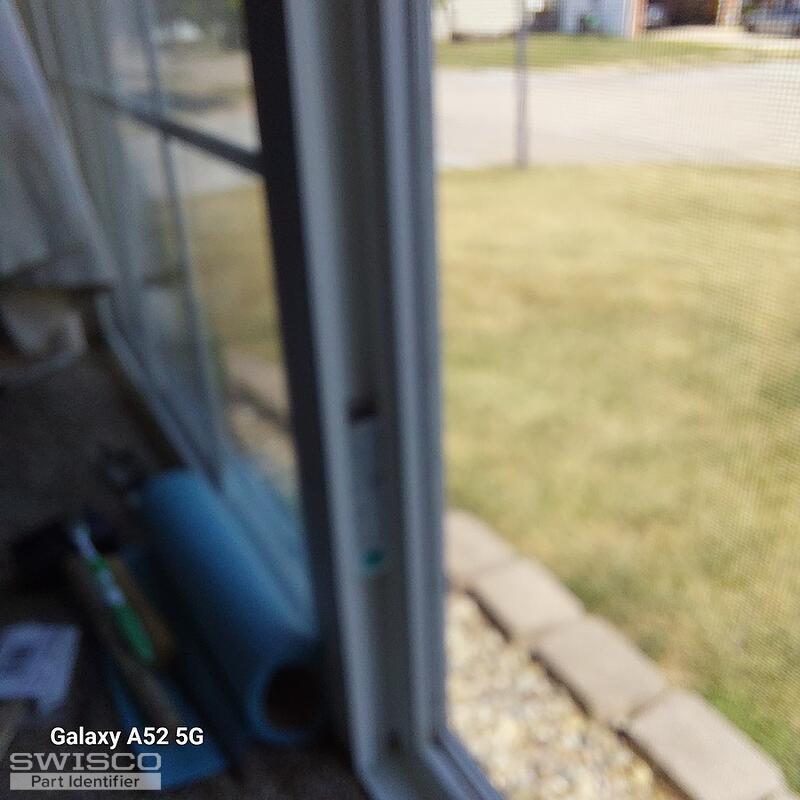

The window size is 32"wide x 36" tall.
Bob from SWISCO
Sep 15, 2025 1:35 am
Hello there. This looks like a 15-087 Pivot Shoe and 15-086 Coil Housing. This system works with Series 180 Coil Balance springs. For a spring stamped '5', choose the S180-05 5 pound spring. For a spring stamped 6, go with the S180-06 6 pound spring. Let me know if you have further questions.
Series 180 coil balance diagram
Quick Learner from St. Charles, Mo
Sep 15, 2025 12:21 pm
Thanx for the info! Big help. What is part 16-024 and what does it do?
Bob from SWISCO
Sep 16, 2025 3:52 pm
The 16-024 mounting bracket is what the coil balance springs attach to further up the window jamb. The diagram below shows this.
Series 180 coil balance diagram
