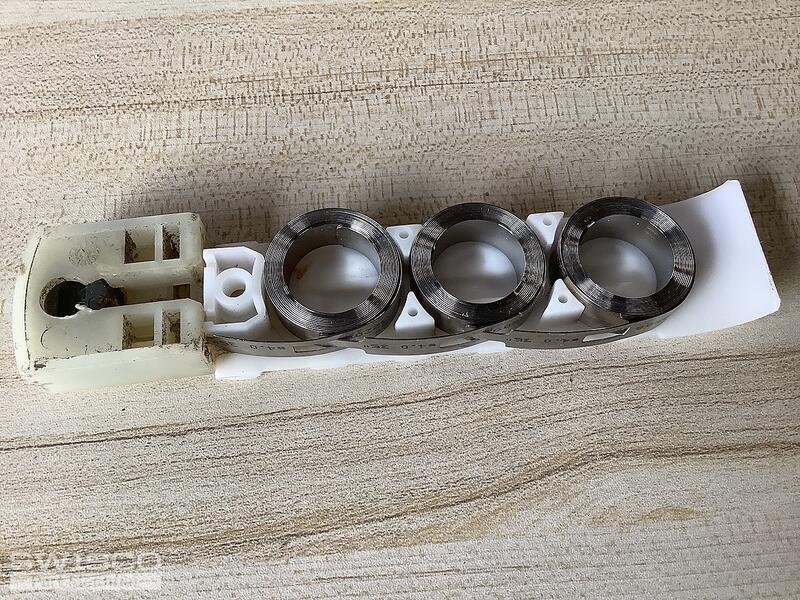

Triple coil

A home owner from Ohio says:

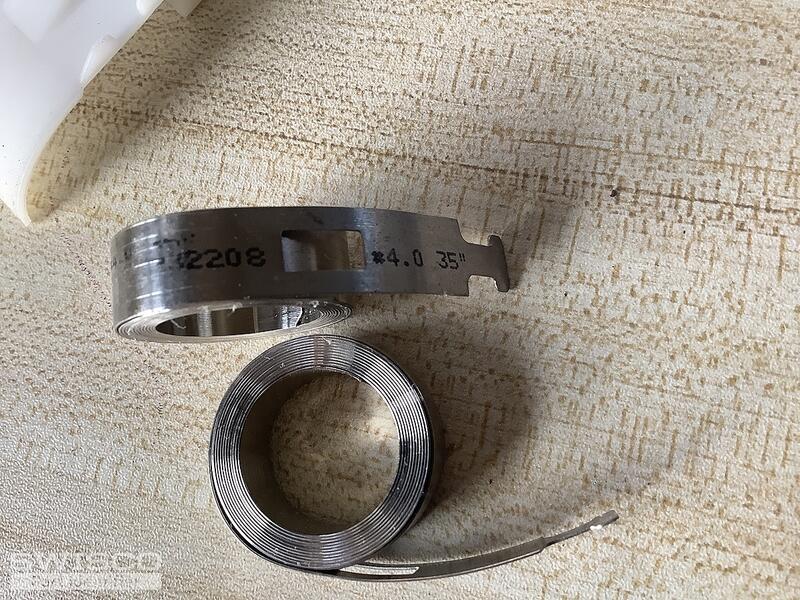

#4.0 35" on the coil
Thumbnail of the uploaded file named 8A8EC61A-FD11-4AFD-A66D-22AF1EAB038A.jpeg
Thumbnail of the uploaded file named 532F5C3C-F5AC-4215-9233-F87689975414.jpeg
Thumbnail of the uploaded file named F88FD755-7C5C-4DD0-9E80-09E96E961517.jpeg
Thumbnail of the uploaded file named B7E7D927-1CD9-4E7E-B08A-F5A933A89E5E.jpeg
Thumbnail of the uploaded file named F6F7DB68-FBDB-4924-820D-89F0634519FD.jpeg
Profile picture of Bob
Bob from SWISCO responded:

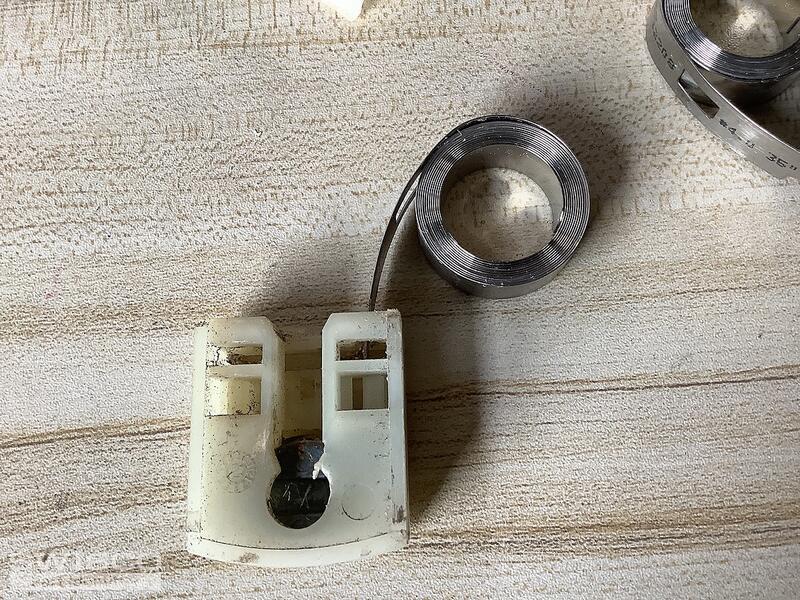

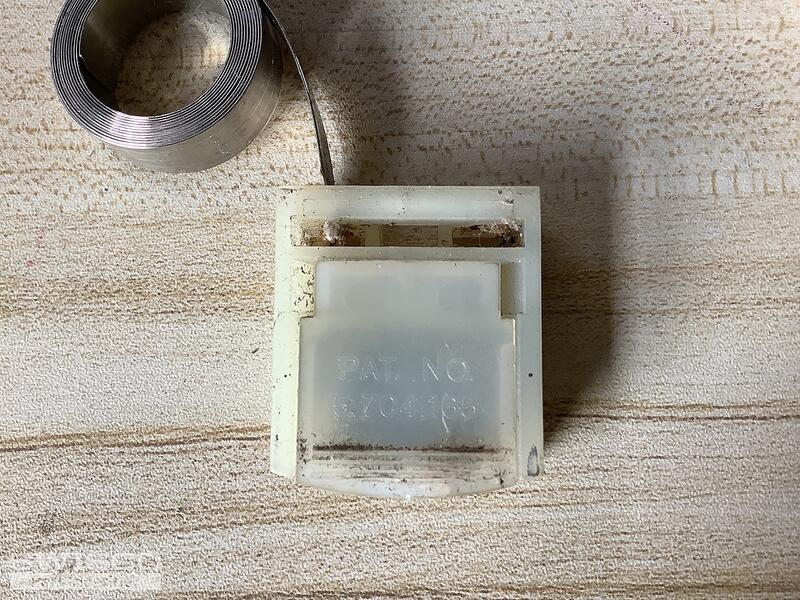

It appears you have a 15-199 Pivot Shoe, which uses either 1/2" thick Series 160 springs or 3/8" thick Series 165 springs. Please compare the thickness of your springs to see what you need. I suspect you have the 3/8" ones, in which case, for a spring stamped #4, you should go with the S165-4 4 pound springs. You can reuse your old cover if its undamaged; otherwise, consider the 15-205
